Ref	Part #	Item	Price
010	K3071-24008	TANK,ASSY(FUEL)	$247.20
010	K3071-24008	TANK,ASSY(FUEL)	$247.20
015	K3071-96172	KIT VALVE,SHUTOFF	$7.82
015	K3071-96172	KIT VALVE,SHUTOFF	$7.82
020	K3011-24132	CAP, FUEL ***	$28.80
030	K3071-24150	ROD, FUEL	$5.72
040	01754-50820	BOLT M8x1.25x20 mm ***	$3.11
050, 130	K1122-91810	NUT,M8x1.25 SPRING	$1.35
060	K3211-53190	CUSHION, STEP * ***	$0.99
070	K3071-24160	STAY, FUEL	$3.78
080	K3011-91010	BOLT, THREAD ROLLING * ***	$0.99
090	K3071-24322	HOSE,ASSY(FUEL)	$8.33
100	K3071-24122	HOSE(FUEL) ***	$40.72
110	E7192-44110	CLAMP,HOSE 1/2" (9.3 mm wide) ***	$10.05
140	01754-50825	BOLT M8x1.25x25 mm ***	$3.37

Ref: 010 Part #: K3071-24008 Price: $247.20

Item: TANK,ASSY(FUEL)

QTY:

Ref: 010 Part #: K3071-24008 Price: $247.20

Item: TANK,ASSY(FUEL)

QTY:

Ref: 015 Part #: K3071-96172 Price: $7.82

Item: KIT VALVE,SHUTOFF

QTY:

Ref: 015 Part #: K3071-96172 Price: $7.82

Item: KIT VALVE,SHUTOFF

QTY:

Ref: 020 Part #: K3011-24132 Price: $28.80

Item: CAP, FUEL ***

QTY:

Ref: 030 Part #: K3071-24150 Price: $5.72

Item: ROD, FUEL

QTY:

Ref: 040 Part #: 01754-50820 Price: $3.11

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 050130 Part #: K1122-91810 Price: $1.35

Item: NUT,M8x1.25 SPRING

QTY:

Ref: 060 Part #: K3211-53190 Price: $0.99

Item: CUSHION, STEP * ***

QTY:

Ref: 070 Part #: K3071-24160 Price: $3.78

Item: STAY, FUEL

QTY:

Ref: 080 Part #: K3011-91010 Price: $0.99

Item: BOLT, THREAD ROLLING * ***

QTY:

Ref: 090 Part #: K3071-24322 Price: $8.33

Item: HOSE,ASSY(FUEL)

QTY:

Ref: 100 Part #: K3071-24122 Price: $40.72

Item: HOSE(FUEL) ***

QTY:

Ref: 110 Part #: E7192-44110 Price: $10.05

Item: CLAMP,HOSE 1/2" (9.3 mm wide) ***

QTY:

Ref: 140 Part #: 01754-50825 Price: $3.37

Item: BOLT M8x1.25x25 mm ***

QTY:

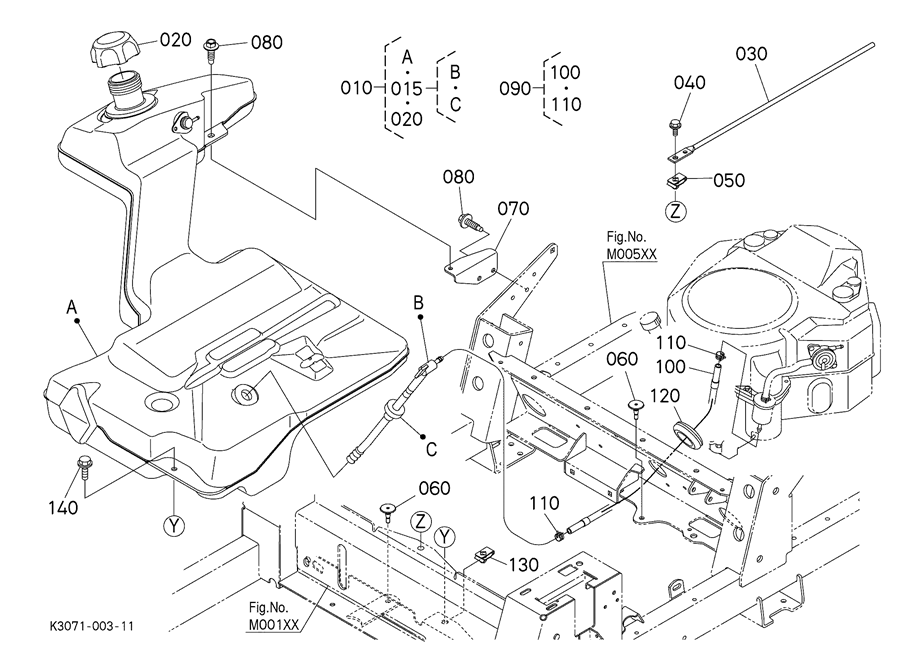

KUBOTA Z421KWT PARTS FUEL SYSTEM A10100 FUEL TANK
