Ref	Part #	Item	Price
010	K3811-11010	ASSY HOUSING,TOP LH ***	$486.56
010	K3811-10032	AXLE,ASSY(LH)	$1,799.60
020	K3811-11030	KIT O-RING,SEAL	$1.37
030	K3811-11042	ASSY MOTOR, LH	$1,631.90
040	K3811-11060	KEY,WOODRUFF	$5.31
050	K3811-11072	ASSY BRAKE	$202.03
060	K3811-11080	SCREW,FLANGE	$2.54
070	K3811-11092	DRUM, 5 BOLT (HST)	$288.70
070	K3811-11092	DRUM, 5 BOLT (HST)	$288.70
080	K3811-11110	NUT,SLOTTED	$13.26
090	K3811-11120	PIN,COTTER	$0.99
100	K3811-11153	GASKET, BOTTOM *	$89.71
100	K3811-11153	GASKET, BOTTOM *	$89.71
100	K3811-11153	GASKET, BOTTOM *	$89.71
110	K3811-11162	COVER, BOTTOM *	$99.06
110	K3811-11162	COVER, BOTTOM *	$99.06
111	K3811-11670	PLUG,DRAIN	$3.27
112	K3811-11680	WASHER,DRAIN PLUG	$3.12
120, 150	K3811-11170	SCREW,THREAD FORMING	$1.04
130	K3811-11182	GASKET, SIDE	$16.38
130	K3811-11182	GASKET, SIDE	$16.38
140	K3811-11190	COVER,SIDE	$26.60
160	K3811-11210	ASSY BLOCK,SWASH	$205.13
170	K3811-11220	WASHER,THRUST	$30.59
180	K3811-11230	BEARING,THRUST	$61.31
190	K3811-11240	WASHER,THRUST	$52.68
200	K3811-11250	SPRING,CENTRAL	$3.02
210	K3811-11260	ASSY PISTON	$362.25
220	K3811-11270	PLATE,PORT	$61.49
230	K3811-11280	ASSY BLOCK,END LH *	$606.24
240	K3811-11310	ASSY VALVE,CHARGE	$50.03
250	K3811-11320	ASSY VALVE,RELIEF	$126.70
260	K3811-11330	ASSY O-RING,PLUG	$16.03
265	K3811-11690	O-RING, SEAL, PLUG	$3.35
270	K3811-11340	BOLT,SPECIAL 6.125	$8.09
280	K3811-11350	BOLT,SPECIAL 6.625	$8.09
290	K3811-11370	WASHER	$1.23
320	K3811-11410	ASSY ROTOR,SET	$36.56
330	K3811-11420	COVER,CHARGE PUMP	$42.88
340	K3811-11430	O-RING,SEAL	$0.99
350	K3811-11440	TUBE,FILTER LH	$42.56
360	K3811-11460	SCREW,CHARGE PUMP	$2.08
370	K3811-11470	SCREW,3/8-16	$5.59
380	K3811-11510	NUT,FAN	$3.35
390	K3811-11520	SPACER,FAN	$6.90
400	K3811-11532	FAN, 7.8 INCH	$64.85
400	K3811-11532	FAN, 7.8 INCH	$64.85
410	K3811-11540	PULLEY,TAPERED	$67.88
420	K3811-11550	RING,RETAINING	$5.52
430	K3811-11560	SEAL,SHAFT	$16.83
440	K3811-11570	ASSY SHAFT	$232.92
450	K3811-11730	PLUG, HOLLOW HEX VITO	$16.74
450	K3811-11730	PLUG, HOLLOW HEX VITO	$16.74
460	K3811-11590	JOINT,HOSE	$31.33
470	K3811-11610	RING,RETAINING	$0.99
480	K3811-11620	ASSY PLUG	$32.33
490	K3811-11630	LEVER,BYPASS	$13.65
500	K3811-11640	BLOCK,CONTROL	$4.11
510	K3811-11650	ARM,TRUNNION	$88.97
520	K3811-11740	SEAL O-RING, MOTOR	$18.55
530	K3811-14070	FILTER,TRANSMISSION OIL	$55.42
540	K3811-11923	KIT HOUSING, SEAL	$185.83
540	K3811-11923	KIT HOUSING, SEAL	$185.83
540	K3811-11923	KIT HOUSING, SEAL	$185.83
550	K3811-11910	FAN(KIT) S/N <=20511	Call for price
550	K3811-11912	KIT FAN	$54.57

Ref: 010 Part #: K3811-11010 Price: $486.56

Item: ASSY HOUSING,TOP LH ***

QTY:

Ref: 010 Part #: K3811-10032 Price: $1,799.60

Item: AXLE,ASSY(LH)

QTY:

Ref: 020 Part #: K3811-11030 Price: $1.37

Item: KIT O-RING,SEAL

QTY:

Ref: 030 Part #: K3811-11042 Price: $1,631.90

Item: ASSY MOTOR, LH

QTY:

Ref: 040 Part #: K3811-11060 Price: $5.31

Item: KEY,WOODRUFF

QTY:

Ref: 050 Part #: K3811-11072 Price: $202.03

Item: ASSY BRAKE

QTY:

Ref: 060 Part #: K3811-11080 Price: $2.54

Item: SCREW,FLANGE

QTY:

Ref: 070 Part #: K3811-11092 Price: $288.70

Item: DRUM, 5 BOLT (HST)

QTY:

Ref: 070 Part #: K3811-11092 Price: $288.70

Item: DRUM, 5 BOLT (HST)

QTY:

Ref: 080 Part #: K3811-11110 Price: $13.26

Item: NUT,SLOTTED

QTY:

Ref: 090 Part #: K3811-11120 Price: $0.99

Item: PIN,COTTER

QTY:

Ref: 100 Part #: K3811-11153 Price: $89.71

Item: GASKET, BOTTOM *

QTY:

Ref: 100 Part #: K3811-11153 Price: $89.71

Item: GASKET, BOTTOM *

QTY:

Ref: 100 Part #: K3811-11153 Price: $89.71

Item: GASKET, BOTTOM *

QTY:

Ref: 110 Part #: K3811-11162 Price: $99.06

Item: COVER, BOTTOM *

QTY:

Ref: 110 Part #: K3811-11162 Price: $99.06

Item: COVER, BOTTOM *

QTY:

Ref: 111 Part #: K3811-11670 Price: $3.27

Item: PLUG,DRAIN

QTY:

Ref: 112 Part #: K3811-11680 Price: $3.12

Item: WASHER,DRAIN PLUG

QTY:

Ref: 120150 Part #: K3811-11170 Price: $1.04

Item: SCREW,THREAD FORMING

QTY:

Ref: 130 Part #: K3811-11182 Price: $16.38

Item: GASKET, SIDE

QTY:

Ref: 130 Part #: K3811-11182 Price: $16.38

Item: GASKET, SIDE

QTY:

Ref: 140 Part #: K3811-11190 Price: $26.60

Item: COVER,SIDE

QTY:

Ref: 160 Part #: K3811-11210 Price: $205.13

Item: ASSY BLOCK,SWASH

QTY:

Ref: 170 Part #: K3811-11220 Price: $30.59

Item: WASHER,THRUST

QTY:

Ref: 180 Part #: K3811-11230 Price: $61.31

Item: BEARING,THRUST

QTY:

Ref: 190 Part #: K3811-11240 Price: $52.68

Item: WASHER,THRUST

QTY:

Ref: 200 Part #: K3811-11250 Price: $3.02

Item: SPRING,CENTRAL

QTY:

Ref: 210 Part #: K3811-11260 Price: $362.25

Item: ASSY PISTON

QTY:

Ref: 220 Part #: K3811-11270 Price: $61.49

Item: PLATE,PORT

QTY:

Ref: 230 Part #: K3811-11280 Price: $606.24

Item: ASSY BLOCK,END LH *

QTY:

Ref: 240 Part #: K3811-11310 Price: $50.03

Item: ASSY VALVE,CHARGE

QTY:

Ref: 250 Part #: K3811-11320 Price: $126.70

Item: ASSY VALVE,RELIEF

QTY:

Ref: 260 Part #: K3811-11330 Price: $16.03

Item: ASSY O-RING,PLUG

QTY:

Ref: 265 Part #: K3811-11690 Price: $3.35

Item: O-RING, SEAL, PLUG

QTY:

Ref: 270 Part #: K3811-11340 Price: $8.09

Item: BOLT,SPECIAL 6.125

QTY:

Ref: 280 Part #: K3811-11350 Price: $8.09

Item: BOLT,SPECIAL 6.625

QTY:

Ref: 290 Part #: K3811-11370 Price: $1.23

Item: WASHER

QTY:

Ref: 320 Part #: K3811-11410 Price: $36.56

Item: ASSY ROTOR,SET

QTY:

Ref: 330 Part #: K3811-11420 Price: $42.88

Item: COVER,CHARGE PUMP

QTY:

Ref: 340 Part #: K3811-11430 Price: $0.99

Item: O-RING,SEAL

QTY:

Ref: 350 Part #: K3811-11440 Price: $42.56

Item: TUBE,FILTER LH

QTY:

Ref: 360 Part #: K3811-11460 Price: $2.08

Item: SCREW,CHARGE PUMP

QTY:

Ref: 370 Part #: K3811-11470 Price: $5.59

Item: SCREW,3/8-16

QTY:

Ref: 380 Part #: K3811-11510 Price: $3.35

Item: NUT,FAN

QTY:

Ref: 390 Part #: K3811-11520 Price: $6.90

Item: SPACER,FAN

QTY:

Ref: 400 Part #: K3811-11532 Price: $64.85

Item: FAN, 7.8 INCH

QTY:

Ref: 400 Part #: K3811-11532 Price: $64.85

Item: FAN, 7.8 INCH

QTY:

Ref: 410 Part #: K3811-11540 Price: $67.88

Item: PULLEY,TAPERED

QTY:

Ref: 420 Part #: K3811-11550 Price: $5.52

Item: RING,RETAINING

QTY:

Ref: 430 Part #: K3811-11560 Price: $16.83

Item: SEAL,SHAFT

QTY:

Ref: 440 Part #: K3811-11570 Price: $232.92

Item: ASSY SHAFT

QTY:

Ref: 450 Part #: K3811-11730 Price: $16.74

Item: PLUG, HOLLOW HEX VITO

QTY:

Ref: 450 Part #: K3811-11730 Price: $16.74

Item: PLUG, HOLLOW HEX VITO

QTY:

Ref: 460 Part #: K3811-11590 Price: $31.33

Item: JOINT,HOSE

QTY:

Ref: 470 Part #: K3811-11610 Price: $0.99

Item: RING,RETAINING

QTY:

Ref: 480 Part #: K3811-11620 Price: $32.33

Item: ASSY PLUG

QTY:

Ref: 490 Part #: K3811-11630 Price: $13.65

Item: LEVER,BYPASS

QTY:

Ref: 500 Part #: K3811-11640 Price: $4.11

Item: BLOCK,CONTROL

QTY:

Ref: 510 Part #: K3811-11650 Price: $88.97

Item: ARM,TRUNNION

QTY:

Ref: 520 Part #: K3811-11740 Price: $18.55

Item: SEAL O-RING, MOTOR

QTY:

Ref: 530 Part #: K3811-14070 Price: $55.42

Item: FILTER,TRANSMISSION OIL

QTY:

Ref: 540 Part #: K3811-11923 Price: $185.83

Item: KIT HOUSING, SEAL

QTY:

Ref: 540 Part #: K3811-11923 Price: $185.83

Item: KIT HOUSING, SEAL

QTY:

Ref: 540 Part #: K3811-11923 Price: $185.83

Item: KIT HOUSING, SEAL

QTY:

Ref: 550 Part #: K3811-11910 Price: Call for price

Item: FAN(KIT) S/N <=20511

QTY:

Ref: 550 Part #: K3811-11912 Price: $54.57

Item: KIT FAN

QTY:

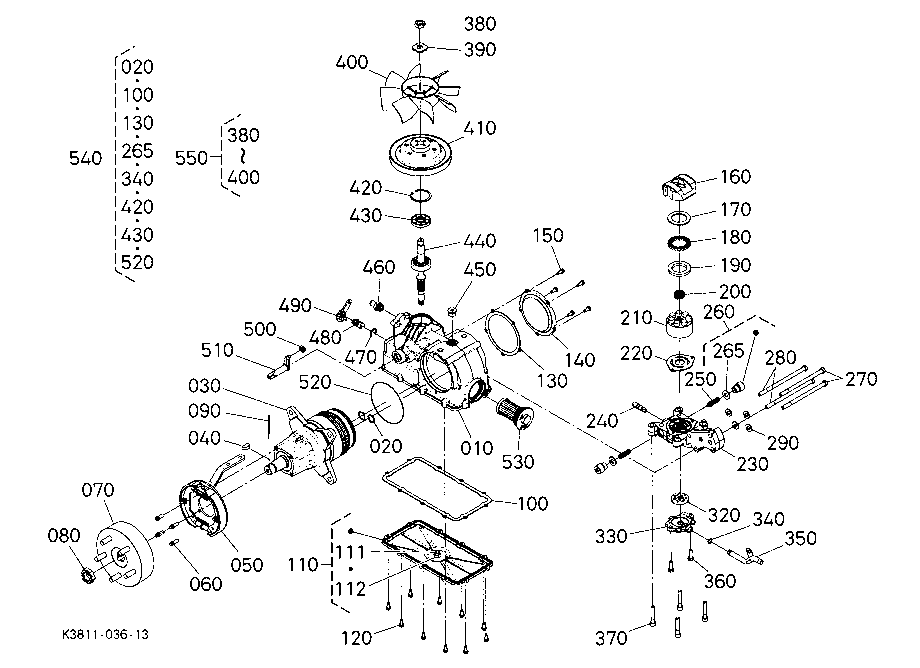

KUBOTA Z723KH PARTS CLUTCH TRANSMISSION REAR AXLE C45500 HST LH [COMPONENT PARTS]
