Ref	Part #	Item	Price
010	E7192-43120	FILTER, FUEL	$14.71
020	E7211-11190	SCREW, HEX HEAD	$2.52
030	E7189-01240	PUMP, FUEL ***	$69.75
040	E7182-00200	NUT,PLASTIC BLACK	$5.21
050	E7192-44110	CLAMP,HOSE 1/2" (9.3 mm wide) ***	$10.05
070	E7185-83070	LINE, FUEL ***	$46.38
080	E7182-00590	CLAMP,SPRING HOSE	$5.17
090	E7182-00600	SLEEVE,FUEL LINE	$20.76
100	E7182-00610	SLEEVE,INSULATION ***	$12.45
Ref.	Part No.	Description	Call for price
010	E7182-00620	BRACKET,THROTTLE	$17.75
020	E7182-00630	BRACKET,GOVERNED ID	$52.52
030	E7182-00330	SCREW,THREAD FORMING	$3.78
040	E7176-00250	SCREW, THREAD FORMING	$5.21
050	E7189-02070	WASHER, SPRING 3/8"	$24.83
070	E7189-02000	SCREW, PHILLIPS HD.11	$5.21
090	E7182-00660	BRACKET,CONTROL	$22.70
100, 256	E7194-56920	BUSHING,LINKAGE RETAINING	$6.12
110	E7189-02080	SPACER	$23.29
120	E7189-02050	SCREW, HEX M6x1.0x16 FLANGE	$3.91
130, 235	E7189-02010	NUT, HEX. LOCK M6x1.0 ***	$5.21
140	E7189-02100	WASHER, PLAIN 1/4"	$6.56
160	E7189-02040	SPRING, THROTTLE SHAFT	$11.68
170	E7182-01000	SPRING,GOVERNOR ***	$17.62
180	E7182-00680	SPRING, GOVERNED IDL	$4.85
190	E7189-02140	LEVER, THROTTLE CONTROL	$37.03
200	E7182-00690	LEVER,THROTTLE CONT	$4.98
210	E7189-02150	SPACER	$5.06
220	E7182-00700	SHAFT,CONTROL	$109.42
230	E7182-00710	SCREW,HEX HEAD	$4.70
240	E7189-02030	WASHER, PLAIN 1/4# ***	$7.93
255	E7194-49140	NUT,HEX M6x1.0 FLANGE	$7.70
260	E7194-57320	CLAMP, CABLE	$6.57
270	E7182-00750	SCREW,THREAD FORMING	$5.06

Ref: 010 Part #: E7192-43120 Price: $14.71

Item: FILTER, FUEL

QTY:

Ref: 020 Part #: E7211-11190 Price: $2.52

Item: SCREW, HEX HEAD

QTY:

Ref: 030 Part #: E7189-01240 Price: $69.75

Item: PUMP, FUEL ***

QTY:

Ref: 040 Part #: E7182-00200 Price: $5.21

Item: NUT,PLASTIC BLACK

QTY:

Ref: 050 Part #: E7192-44110 Price: $10.05

Item: CLAMP,HOSE 1/2" (9.3 mm wide) ***

QTY:

Ref: 070 Part #: E7185-83070 Price: $46.38

Item: LINE, FUEL ***

QTY:

Ref: 080 Part #: E7182-00590 Price: $5.17

Item: CLAMP,SPRING HOSE

QTY:

Ref: 090 Part #: E7182-00600 Price: $20.76

Item: SLEEVE,FUEL LINE

QTY:

Ref: 100 Part #: E7182-00610 Price: $12.45

Item: SLEEVE,INSULATION ***

QTY:

Ref: Ref. Part #: Part No. Price: Call for price

Item: Description

QTY:

Ref: 010 Part #: E7182-00620 Price: $17.75

Item: BRACKET,THROTTLE

QTY:

Ref: 020 Part #: E7182-00630 Price: $52.52

Item: BRACKET,GOVERNED ID

QTY:

Ref: 030 Part #: E7182-00330 Price: $3.78

Item: SCREW,THREAD FORMING

QTY:

Ref: 040 Part #: E7176-00250 Price: $5.21

Item: SCREW, THREAD FORMING

QTY:

Ref: 050 Part #: E7189-02070 Price: $24.83

Item: WASHER, SPRING 3/8"

QTY:

Ref: 070 Part #: E7189-02000 Price: $5.21

Item: SCREW, PHILLIPS HD.11

QTY:

Ref: 090 Part #: E7182-00660 Price: $22.70

Item: BRACKET,CONTROL

QTY:

Ref: 100256 Part #: E7194-56920 Price: $6.12

Item: BUSHING,LINKAGE RETAINING

QTY:

Ref: 110 Part #: E7189-02080 Price: $23.29

Item: SPACER

QTY:

Ref: 120 Part #: E7189-02050 Price: $3.91

Item: SCREW, HEX M6x1.0x16 FLANGE

QTY:

Ref: 130235 Part #: E7189-02010 Price: $5.21

Item: NUT, HEX. LOCK M6x1.0 ***

QTY:

Ref: 140 Part #: E7189-02100 Price: $6.56

Item: WASHER, PLAIN 1/4"

QTY:

Ref: 160 Part #: E7189-02040 Price: $11.68

Item: SPRING, THROTTLE SHAFT

QTY:

Ref: 170 Part #: E7182-01000 Price: $17.62

Item: SPRING,GOVERNOR ***

QTY:

Ref: 180 Part #: E7182-00680 Price: $4.85

Item: SPRING, GOVERNED IDL

QTY:

Ref: 190 Part #: E7189-02140 Price: $37.03

Item: LEVER, THROTTLE CONTROL

QTY:

Ref: 200 Part #: E7182-00690 Price: $4.98

Item: LEVER,THROTTLE CONT

QTY:

Ref: 210 Part #: E7189-02150 Price: $5.06

Item: SPACER

QTY:

Ref: 220 Part #: E7182-00700 Price: $109.42

Item: SHAFT,CONTROL

QTY:

Ref: 230 Part #: E7182-00710 Price: $4.70

Item: SCREW,HEX HEAD

QTY:

Ref: 240 Part #: E7189-02030 Price: $7.93

Item: WASHER, PLAIN 1/4# ***

QTY:

Ref: 255 Part #: E7194-49140 Price: $7.70

Item: NUT,HEX M6x1.0 FLANGE

QTY:

Ref: 260 Part #: E7194-57320 Price: $6.57

Item: CLAMP, CABLE

QTY:

Ref: 270 Part #: E7182-00750 Price: $5.06

Item: SCREW,THREAD FORMING

QTY:

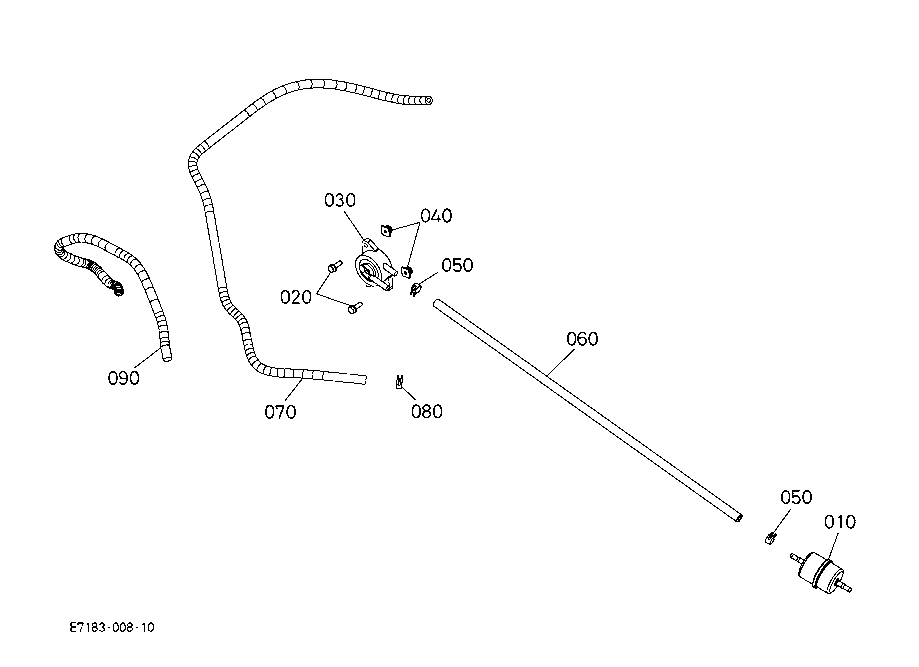

KUBOTA Z725KH PARTS ENGINE 200800 FUEL SYSTEM
