Ref	Part #	Item	Price
010	K3441-24005	TANK,ASSY(FUEL LH) ***	$235.80
010	K3441-24005	TANK,ASSY(FUEL LH) ***	$235.80
020, 050	K3441-24912	VALVE(FUEL) ***	$54.37
030, 060	K7721-34120	CAP, FUEL	$57.65
040	K3441-24025	TANK,ASSY(FUEL RH)	$185.85
040	K3441-24025	TANK,ASSY(FUEL RH)	$185.85
070	04015-50080	WASHER, PLAIN ***	$0.99
080	01754-50820	BOLT M8x1.25x20 mm ***	$3.11
090	K2561-54840	CUSHION, TANK REAR UP * ***	$1.56
110	K2581-54782	CUSHION, TANK FRONT ***	$3.98
120	K3181-55160	SPONGE, FENDER	$2.10
130	K3441-24952	PIPE, LINK *	$154.00
140	K3441-24960	COVER, TANK REAR LH	$13.07
140	K3441-24962	COVER(TANK REAR LH) ***	$26.35
150	K3441-24970	COVER, TANK REAT RH	$13.07
150	K3441-24972	COVER(TANK REAT RH) ***	$26.35
160	30810-18870	BOLT, FLANGE M8x1.25x16	$0.99
170	K3441-24900	ASSY HOSE (1205)	$17.21
180	K3441-24980	HOSE,FUEL (5/16 1205)	$14.67
190, 200	K3441-24990	TUBE, CONVOLUTED COND	$2.72
210	09318-88125	CLAMP 1, HOSE ***	$1.49

Ref: 010 Part #: K3441-24005 Price: $235.80

Item: TANK,ASSY(FUEL LH) ***

QTY:

Ref: 010 Part #: K3441-24005 Price: $235.80

Item: TANK,ASSY(FUEL LH) ***

QTY:

Ref: 020050 Part #: K3441-24912 Price: $54.37

Item: VALVE(FUEL) ***

QTY:

Ref: 030060 Part #: K7721-34120 Price: $57.65

Item: CAP, FUEL

QTY:

Ref: 040 Part #: K3441-24025 Price: $185.85

Item: TANK,ASSY(FUEL RH)

QTY:

Ref: 040 Part #: K3441-24025 Price: $185.85

Item: TANK,ASSY(FUEL RH)

QTY:

Ref: 070 Part #: 04015-50080 Price: $0.99

Item: WASHER, PLAIN ***

QTY:

Ref: 080 Part #: 01754-50820 Price: $3.11

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 090 Part #: K2561-54840 Price: $1.56

Item: CUSHION, TANK REAR UP * ***

QTY:

Ref: 110 Part #: K2581-54782 Price: $3.98

Item: CUSHION, TANK FRONT ***

QTY:

Ref: 120 Part #: K3181-55160 Price: $2.10

Item: SPONGE, FENDER

QTY:

Ref: 130 Part #: K3441-24952 Price: $154.00

Item: PIPE, LINK *

QTY:

Ref: 140 Part #: K3441-24960 Price: $13.07

Item: COVER, TANK REAR LH

QTY:

Ref: 140 Part #: K3441-24962 Price: $26.35

Item: COVER(TANK REAR LH) ***

QTY:

Ref: 150 Part #: K3441-24970 Price: $13.07

Item: COVER, TANK REAT RH

QTY:

Ref: 150 Part #: K3441-24972 Price: $26.35

Item: COVER(TANK REAT RH) ***

QTY:

Ref: 160 Part #: 30810-18870 Price: $0.99

Item: BOLT, FLANGE M8x1.25x16

QTY:

Ref: 170 Part #: K3441-24900 Price: $17.21

Item: ASSY HOSE (1205)

QTY:

Ref: 180 Part #: K3441-24980 Price: $14.67

Item: HOSE,FUEL (5/16 1205)

QTY:

Ref: 190200 Part #: K3441-24990 Price: $2.72

Item: TUBE, CONVOLUTED COND

QTY:

Ref: 210 Part #: 09318-88125 Price: $1.49

Item: CLAMP 1, HOSE ***

QTY:

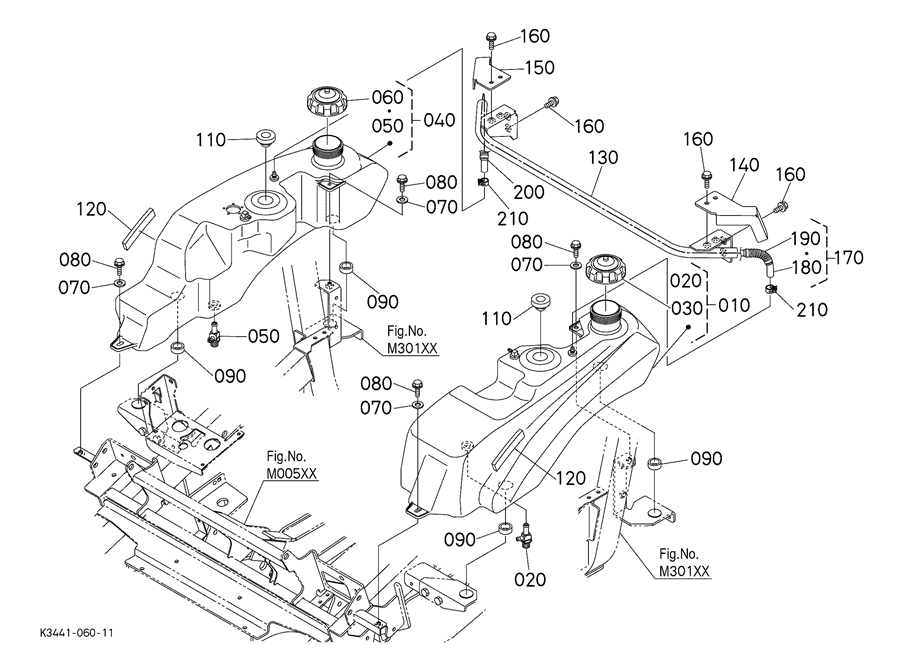

KUBOTA ZD1211 PARTS FUEL SYSTEM A10100 FUEL TANK
