Ref	Part #	Item	Price
010	16226-72703	COMP FLANGE,WATER	$112.20
020	16241-73370	PIPE, WATER RETURN	$3.19
030	16222-72842	ADAPTER	$11.04
030	1G067-72842	ADAPTER	$12.54
035	16851-83043	SENSOR,THERMO-SWITCH	$71.20
040	16261-96710	GASKET, COPPER	$1.54
050	16264-72920	GASKET, WATER FLANGE NA	$3.04
060	01023-50616	BOLT M6x1.0x16 mm ***	$0.99
070	01023-50655	BOLT M6x1.0x55 mm ***	$1.49
080	16241-73350	PIPE, WATER RETURN	$6.90
090	16241-73360	BAND, PIPE	$3.04
090	1G687-73362	CLAMP,HOSE	$3.04
100	1E401-73012	THERMOSTAT,ASSY	$42.64
100	1E401-73012	THERMOSTAT,ASSY	$42.64
100	1E401-73012	THERMOSTAT,ASSY	$42.64
110	16219-73260	COVER, THERMOSTAT	$19.32
120	16221-73270	GASKET, THERMOSTAT NA ***	$3.94
130	01123-50835	BOLT M8x1.25x35 mm ***	$1.04
140	17203-72860	PIPE, WATER	$39.35
150	1G680-72870	HOSE 3,WATER PIPE	$16.92
160	36200-82720	CLAMP	$5.41
160	1G677-72960	CLAMP,HOSE	$5.13

Ref: 010 Part #: 16226-72703 Price: $112.20

Item: COMP FLANGE,WATER

QTY:

Ref: 020 Part #: 16241-73370 Price: $3.19

Item: PIPE, WATER RETURN

QTY:

Ref: 030 Part #: 16222-72842 Price: $11.04

Item: ADAPTER

QTY:

Ref: 030 Part #: 1G067-72842 Price: $12.54

Item: ADAPTER

QTY:

Ref: 035 Part #: 16851-83043 Price: $71.20

Item: SENSOR,THERMO-SWITCH

QTY:

Ref: 040 Part #: 16261-96710 Price: $1.54

Item: GASKET, COPPER

QTY:

Ref: 050 Part #: 16264-72920 Price: $3.04

Item: GASKET, WATER FLANGE NA

QTY:

Ref: 060 Part #: 01023-50616 Price: $0.99

Item: BOLT M6x1.0x16 mm ***

QTY:

Ref: 070 Part #: 01023-50655 Price: $1.49

Item: BOLT M6x1.0x55 mm ***

QTY:

Ref: 080 Part #: 16241-73350 Price: $6.90

Item: PIPE, WATER RETURN

QTY:

Ref: 090 Part #: 16241-73360 Price: $3.04

Item: BAND, PIPE

QTY:

Ref: 090 Part #: 1G687-73362 Price: $3.04

Item: CLAMP,HOSE

QTY:

Ref: 100 Part #: 1E401-73012 Price: $42.64

Item: THERMOSTAT,ASSY

QTY:

Ref: 100 Part #: 1E401-73012 Price: $42.64

Item: THERMOSTAT,ASSY

QTY:

Ref: 100 Part #: 1E401-73012 Price: $42.64

Item: THERMOSTAT,ASSY

QTY:

Ref: 110 Part #: 16219-73260 Price: $19.32

Item: COVER, THERMOSTAT

QTY:

Ref: 120 Part #: 16221-73270 Price: $3.94

Item: GASKET, THERMOSTAT NA ***

QTY:

Ref: 130 Part #: 01123-50835 Price: $1.04

Item: BOLT M8x1.25x35 mm ***

QTY:

Ref: 140 Part #: 17203-72860 Price: $39.35

Item: PIPE, WATER

QTY:

Ref: 150 Part #: 1G680-72870 Price: $16.92

Item: HOSE 3,WATER PIPE

QTY:

Ref: 160 Part #: 36200-82720 Price: $5.41

Item: CLAMP

QTY:

Ref: 160 Part #: 1G677-72960 Price: $5.13

Item: CLAMP,HOSE

QTY:

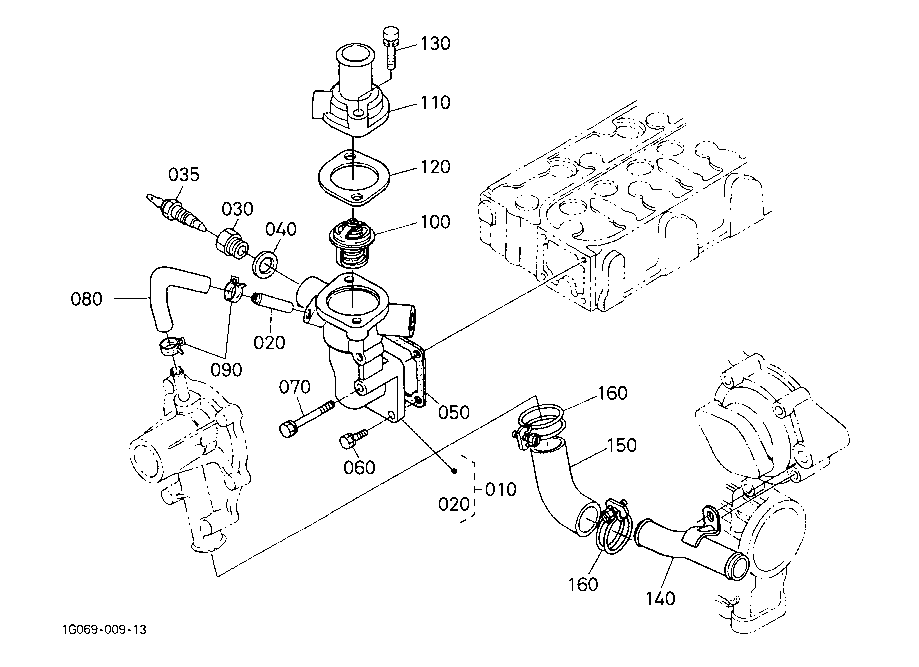

KUBOTA ZD326P PARTS ENGINE 050000 WATER FLANGE AND THERMOSTAT
