Ref	Part #	Item	Price
1	37140	Boom	Call for price
2	58729	SHIELD, OUTPUT SHAFT	$346.77
3	7104	PIN CLV 3/4 X 6-7/8	$45.20
4	37127	Arch	Call for price
5	37137	Bushing, Cat. 2/Cat. 1	$11.52
6	1036150	DRV ASY COMPL 20, 41.14 65.43	$265.88
7	W37207	HHCS 3/8 NC X 2-3/4 GR2 ZP	$4.25
8	838	WASHER, LOCK, 3/8 ZP	$1.44
9	835	NUT, HEX 3/8 NC ZP	$1.72
10	27542	PIN, KLIK HT 7/16 X 11/32	$6.22
11	W37208	ROLL PIN 3/16 X 2	$2.93
12	58730	SHIELD, PLASTIC DRIVE	$153.18
13	37129	Gearbox (See note 3)	Call for price
14		WDS-117	$0.99
15	1036154	PIN, HDLS .87 X 6.70	$31.85
16		WDS-117	$0.99
19	2452	Cotter pin, 3/16 x 2-1/2 (See note 6)	Call for price
20	1036449	DECAL SET CMPL, TPD	$149.36

Ref: 1 Part #: 37140 Price: Call for price

Item: Boom

QTY:

Ref: 2 Part #: 58729 Price: $346.77

Item: SHIELD, OUTPUT SHAFT

QTY:

Ref: 3 Part #: 7104 Price: $45.20

Item: PIN CLV 3/4 X 6-7/8

QTY:

Ref: 4 Part #: 37127 Price: Call for price

Item: Arch

QTY:

Ref: 5 Part #: 37137 Price: $11.52

Item: Bushing, Cat. 2/Cat. 1

QTY:

Ref: 6 Part #: 1036150 Price: $265.88

Item: DRV ASY COMPL 20, 41.14 65.43

QTY:

Ref: 7 Part #: W37207 Price: $4.25

Item: HHCS 3/8 NC X 2-3/4 GR2 ZP

QTY:

Ref: 8 Part #: 838 Price: $1.44

Item: WASHER, LOCK, 3/8 ZP

QTY:

Ref: 9 Part #: 835 Price: $1.72

Item: NUT, HEX 3/8 NC ZP

QTY:

Ref: 10 Part #: 27542 Price: $6.22

Item: PIN, KLIK HT 7/16 X 11/32

QTY:

Ref: 11 Part #: W37208 Price: $2.93

Item: ROLL PIN 3/16 X 2

QTY:

Ref: 12 Part #: 58730 Price: $153.18

Item: SHIELD, PLASTIC DRIVE

QTY:

Ref: 13 Part #: 37129 Price: Call for price

Item: Gearbox (See note 3)

QTY:

Ref: 14 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 15 Part #: 1036154 Price: $31.85

Item: PIN, HDLS .87 X 6.70

QTY:

Ref: 16 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 19 Part #: 2452 Price: Call for price

Item: Cotter pin, 3/16 x 2-1/2 (See note 6)

QTY:

Ref: 20 Part #: 1036449 Price: $149.36

Item: DECAL SET CMPL, TPD

QTY:

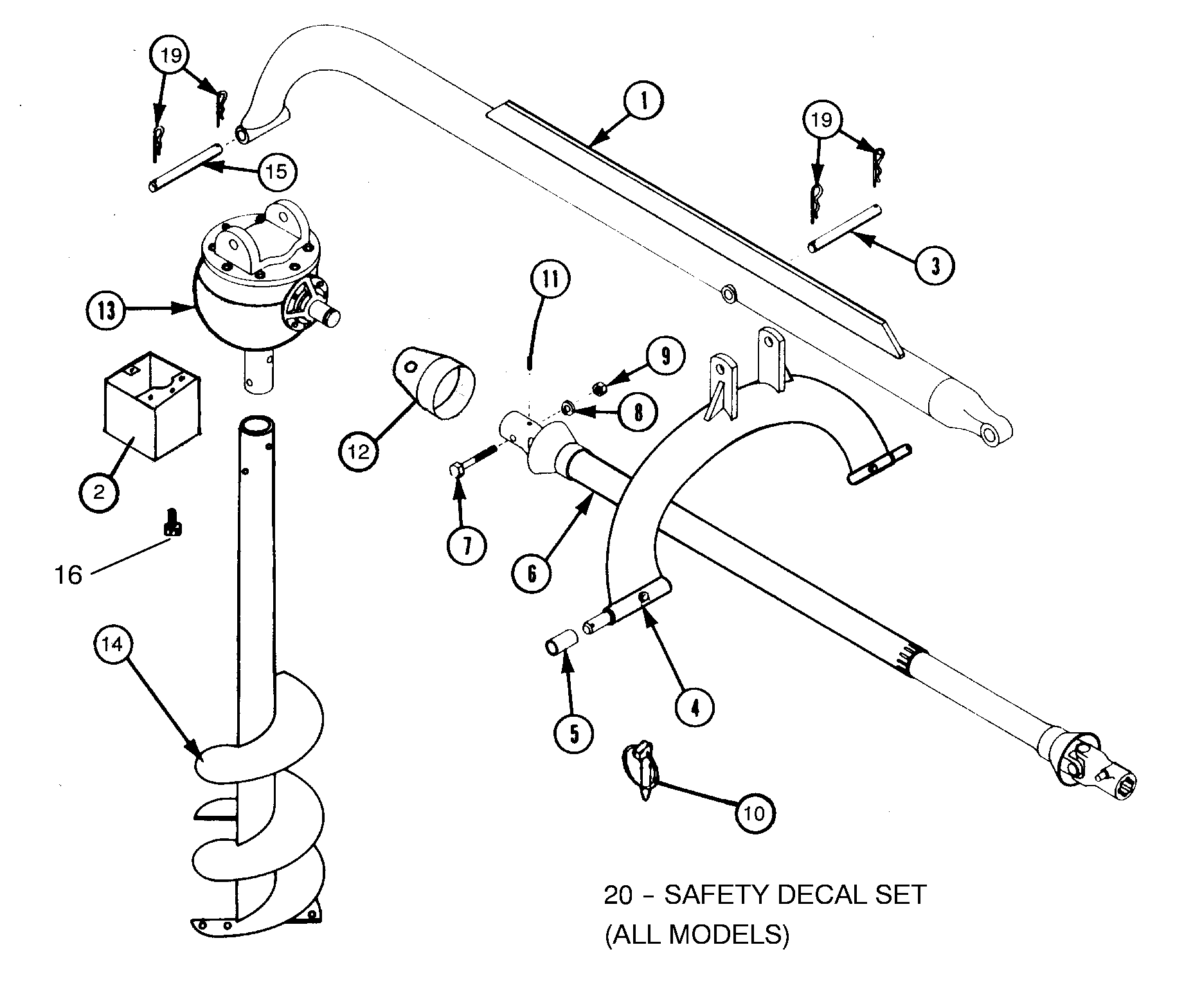

WOODS 1160 POST HOLE DIGGER Main Assembly
