Ref	Part #	Item	Price
1	19372	WEIGHT BOX	$969.00
2	19150	WA HINGE PIN	$252.25
3	19209	Link, .38 x 2.50 x 15.8	$18.84
4	19210	LNK .38 X 2.00 X 9.7	$89.18
5	21022	PIN, ROLL 1/4 X 2	$2.52
6	5607	BOLT, CARRIAGE 5/8 NC X 1-1/2	$2.52
7	692	WASHER, FLAT, 5/8 STD ZP	$1.72
8	6239	NUT, LOCK, 5/8 NC	$2.31
9	4616	HHCS 3/4 NC X 1-1/2 GR5 ZP	$9.63
10	2371	NUT, LOCK, 3/4 NC ZP	$3.23
11	3678	1 inch NC x 2-3/4 Hex head cap screw (See note 5)	Call for price
12	1863	WASHER, FLAT, 1 SAE ZP	$2.13
13	34279	NUT, LOCK 1 NC	$8.52
14	19212	1.260 x 1.625 x 4.88 Sleeve	$54.12

Ref: 1 Part #: 19372 Price: $969.00

Item: WEIGHT BOX

QTY:

Ref: 2 Part #: 19150 Price: $252.25

Item: WA HINGE PIN

QTY:

Ref: 3 Part #: 19209 Price: $18.84

Item: Link, .38 x 2.50 x 15.8

QTY:

Ref: 4 Part #: 19210 Price: $89.18

Item: LNK .38 X 2.00 X 9.7

QTY:

Ref: 5 Part #: 21022 Price: $2.52

Item: PIN, ROLL 1/4 X 2

QTY:

Ref: 6 Part #: 5607 Price: $2.52

Item: BOLT, CARRIAGE 5/8 NC X 1-1/2

QTY:

Ref: 7 Part #: 692 Price: $1.72

Item: WASHER, FLAT, 5/8 STD ZP

QTY:

Ref: 8 Part #: 6239 Price: $2.31

Item: NUT, LOCK, 5/8 NC

QTY:

Ref: 9 Part #: 4616 Price: $9.63

Item: HHCS 3/4 NC X 1-1/2 GR5 ZP

QTY:

Ref: 10 Part #: 2371 Price: $3.23

Item: NUT, LOCK, 3/4 NC ZP

QTY:

Ref: 11 Part #: 3678 Price: Call for price

Item: 1 inch NC x 2-3/4 Hex head cap screw (See note 5)

QTY:

Ref: 12 Part #: 1863 Price: $2.13

Item: WASHER, FLAT, 1 SAE ZP

QTY:

Ref: 13 Part #: 34279 Price: $8.52

Item: NUT, LOCK 1 NC

QTY:

Ref: 14 Part #: 19212 Price: $54.12

Item: 1.260 x 1.625 x 4.88 Sleeve

QTY:

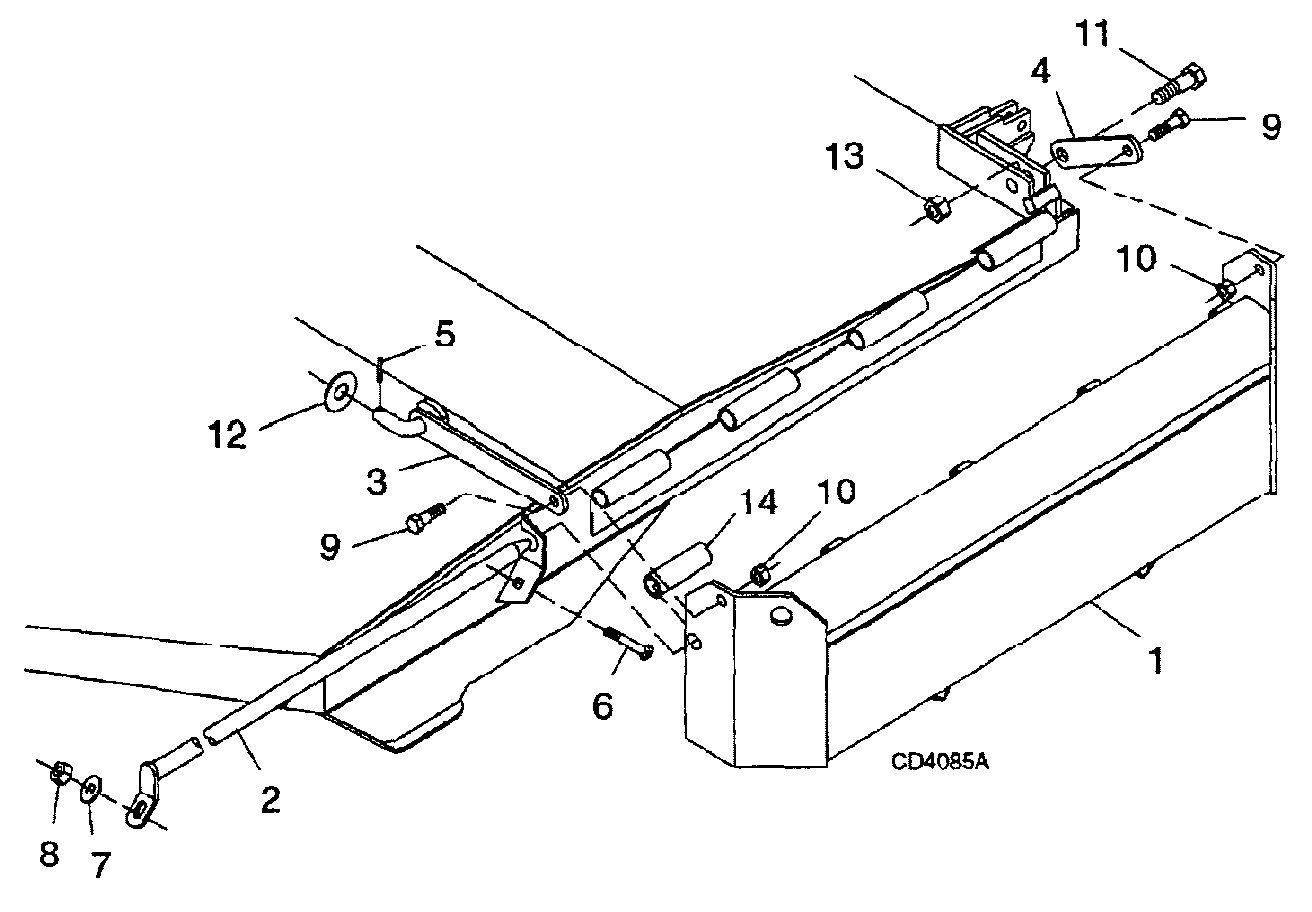

WOODS 2120 BATWING Weight Box Assembly (Optional)
