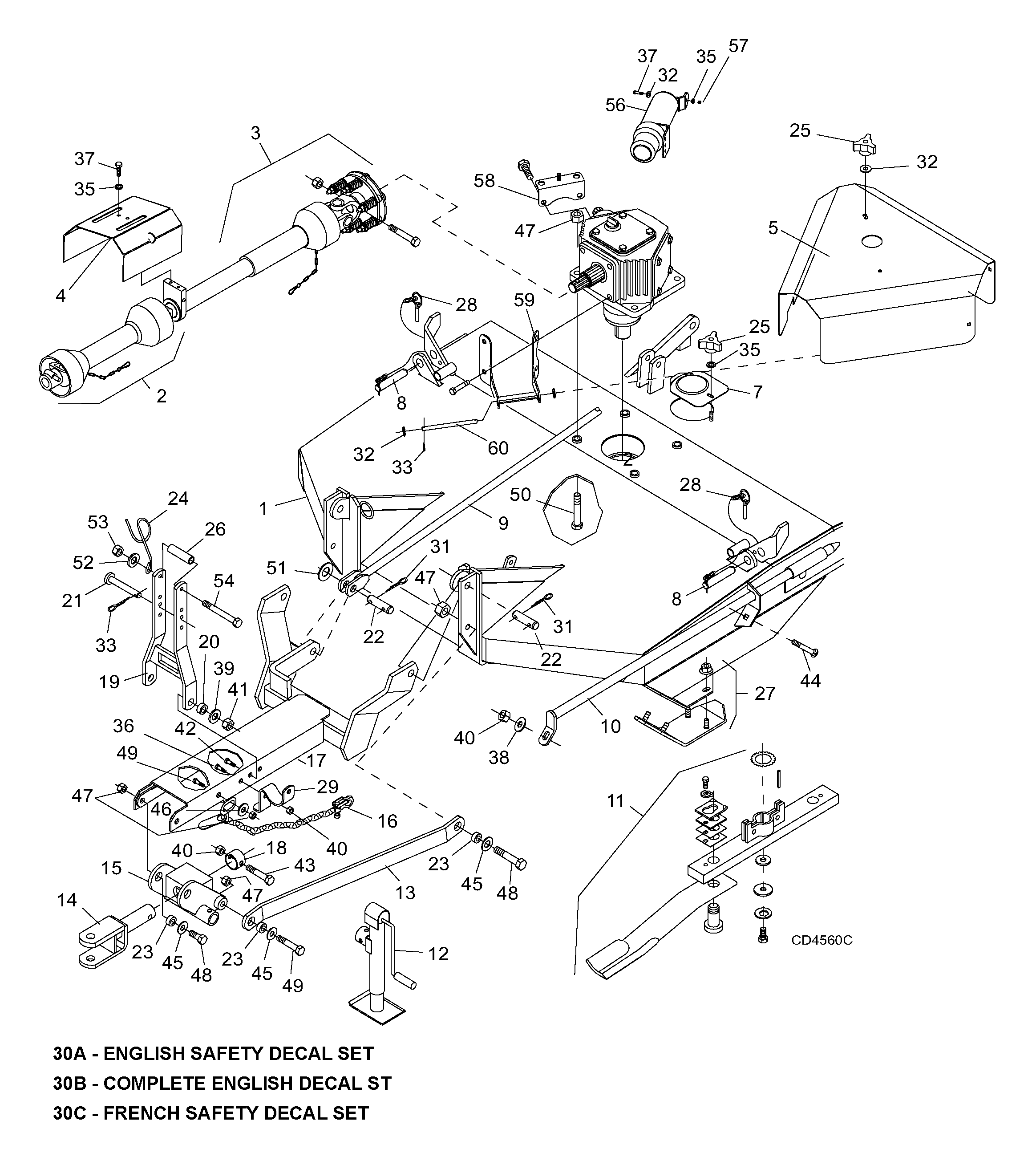

WOODS 2120Q 3 BATWING Center Section - Front Assembly

    WOODS >woods-2120q-3-batwing-rotary-cutter-parts-center-section---front-assembly
    Ref: 1  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 2  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 3  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 4  Part #: 1011760RP  Price: $58.57

    Item: SHIELD, DRIVE

    QTY:
    Ref: 5  Part #: 46601RP  Price: $218.33

    Item: WA CENTER CLTCH/DRIVE SHIELD

    QTY:
    Ref: 6  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 7  Part #: 3444RP  Price: $22.22

    Item: ACCESS HOLE COVER

    QTY:
    Ref: 8  Part #: 8346  Price: $20.35

    Item: PIN, HDLS 1.00 X 4.58

    QTY:
    Ref: 9  Part #: W30776  Price: $225.17

    Item: WA, ATTITUDE ROD

    QTY:
    Ref: 10  Part #: W30773  Price: $151.23

    Item: WA, HINGE PIN

    QTY:
    Ref: 11  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 12  Part #: 52232  Price: $163.05

    Item: JACK, PARKING

    QTY:
    Ref: 13  Part #: 19220  Price: $97.99

    Item: LNKOFS, .50 X 2.50 X 34.0X8.25

    QTY:
    Ref: 14  Part #: 52150  Price: $189.31

    Item: TONGUE CLEVIS ASY

    QTY:
    Ref: 15  Part #: 30742  Price: $314.54

    Item: WA, TONGUE LEVEL BRKT

    QTY:
    Ref: 16  Part #: 19407  Price: $162.00

    Item: ASY, SAFETY CHAIN, 10,000 LB

    QTY:
    Ref: 17  Part #: W44902  Price: $897.02

    Item: TNG, 35.9 X 23.64 X 10.7 W/DCLS

    QTY:
    Ref: 18  Part #: 19181  Price: $44.63

    Item: SLV 2.07 X 2.38 X 1.50 DR

    QTY:
    Ref: 19  Part #: 51618RP  Price: $156.49

    Item: WA H-FRAME, E.A. DRIVE

    QTY:
    Ref: 20  Part #: 1791  Price: $2.52

    Item: SLEEVE, .625 X 1.00 X .563 HT

    QTY:
    Ref: 21  Part #: W404  Price: $18.64

    Item: PIN, CLV 1/2 X 5-3/4 HT

    QTY:
    Ref: 22  Part #: 28047  Price: $106.15

    Item: PIN CLV 1 X 4-1/8

    QTY:
    Ref: 23  Part #: 19335  Price: $3.91

    Item: SLV .75 X 1.25 X .57 HT

    QTY:
    Ref: 24  Part #: 3443  Price: $49.16

    Item: HYD HOSE HOLDER

    QTY:
    Ref: 25  Part #: 66840  Price: $4.25

    Item: KNOB, 3 PRONG 3/8NC

    QTY:
    Ref: 26  Part #: 7035  Price: $17.39

    Item: PIPE, 1/2 SCHEDULE 40 X 3.56

    QTY:
    Ref: 27  Part #: 19805RP  Price: $100.71

    Item: SKID .38 X 7 W/HRDWR

    QTY:
    Ref: 28  Part #: 30695  Price: $11.29

    Item: ASY KLIK PIN, CHN, COT 12.5

    QTY:
    Ref: 29  Part #: 30998  Price: $120.56

    Item: .25 x 2.5 x 12.26 Odd lug (See note 6)

    QTY:
    Ref: 30A  Part #: 19961  Price: $74.58

    Item: English safety decal set

    QTY:
    Ref: 30B  Part #: 1001234  Price: $431.30

    Item: DCL SET CMPL 3180-3/2120-3

    QTY:
    Ref: 30C  Part #: 59961  Price: $308.60

    Item: French safety decal set

    QTY:
    Ref: 31  Part #: 1285  Price: $1.44

    Item: PIN, COTTER 1/4 X 1-1/2

    QTY:
    Ref: 32  Part #: 565  Price: $1.72

    Item: WASHER, FLAT 3/8

    QTY:
    Ref: 33  Part #: 1256  Price: $1.19

    Item: 3/16 X 1, COTTER PIN

    QTY:
    Ref: 34  Part #: 6697  Price: $1.72

    Item: BOLT, CARRIAGE 3/8 NC X 1 GR5 ZP

    QTY:
    Ref: 35  Part #: 838  Price: $1.44

    Item: WASHER, LOCK, 3/8 ZP

    QTY:
    Ref: 36  Part #: 4548  Price: $2.31

    Item: BOLT, HEX 5/8 NC X 1-3/4 GR5 ZP

    QTY:
    Ref: 37  Part #: 839  Price: $1.54

    Item: BOLT, HEX 3/8 NC X 1 GR5 ZP

    QTY:
    Ref: 38  Part #: 692  Price: $1.72

    Item: WASHER, FLAT, 5/8 STD ZP

    QTY:
    Ref: 39  Part #: 10635  Price: $2.74

    Item: WASHER, CUP 5/8 X 1-3/4 X 14GA

    QTY:
    Ref: 40  Part #: 6239  Price: $2.31

    Item: NUT, LOCK, 5/8 NC

    QTY:
    Ref: 41  Part #: 12006  Price: $1.90

    Item: NUT STOP 5/8 NC ELASTIC

    QTY:
    Ref: 42  Part #: 902  Price: $3.31

    Item: BOLT, HEX 5/8 NC X 2 GR5 ZP

    QTY:
    Ref: 43  Part #: 23141  Price: $3.23

    Item: BOLT, HEX 5/8 NC X 3-1/2 HT

    QTY:
    Ref: 44  Part #: 5607  Price: $2.52

    Item: BOLT, CARRIAGE 5/8 NC X 1-1/2

    QTY:
    Ref: 45  Part #: 1257  Price: $2.13

    Item: WSHR 3/4 FLAT ZP

    QTY:
    Ref: 46  Part #: W8424  Price: $6.87

    Item: WASHER, SPECIAL 3/4 X 2 X 3/8

    QTY:
    Ref: 47  Part #: 2371  Price: $3.23

    Item: NUT, LOCK, 3/4 NC ZP

    QTY:
    Ref: 48  Part #: 735  Price: $2.05

    Item: HHCS, 3/4 NC X 2 GR5

    QTY:
    Ref: 49  Part #: 14334  Price: $4.40

    Item: BOLT, HEX 3/4 NC X 3 GR5

    QTY:
    Ref: 50  Part #: 53415  Price: $5.01

    Item: HHCS 3/4 NC X 5-3/4 GR5

    QTY:
    Ref: 51  Part #: 1863  Price: $2.13

    Item: WASHER, FLAT, 1 SAE ZP

    QTY:
    Ref: 52  Part #: 854  Price: $1.44

    Item: WASHER, FLAT, 1/2 STD ZP

    QTY:
    Ref: 53  Part #: 765  Price: $3.40

    Item: NUT, LOCK, 1/2 NC ZP

    QTY:
    Ref: 54  Part #: 12305  Price: $3.23

    Item: BOLT, HEX 1/2 NC X 5-1/2 GR5

    QTY:
    Ref: 55  Part #: 2457  Price: $1.19

    Item: BOLT, HEX, 1/4NC X 3/4, GR5

    QTY:
    Ref: 56  Part #: 1003828  Price: $28.92

    Item: MANUAL TUBE, 3.50 X 3.23 X 11.86

    QTY:
    Ref: 57  Part #: 835  Price: $1.72

    Item: NUT, HEX 3/8 NC ZP

    QTY:
    Ref: 58  Part #: 52313RP  Price: $44.21

    Item: ASY CENTER SHIELD BRKT

    QTY:
    Ref: 59  Part #: 40962RP  Price: $108.86

    Item: BRKT HINGE CENTER

    QTY:
    Ref: 60  Part #: 46600  Price: $5.84

    Item: PIN HDLS .375 X 6.58

    QTY:
    Ref: 61  Part #: 46605  Price: $11.38

    Item: PIN, CLEVIS 1.00 X 2.26

    QTY:
    Ref: 62  Part #: 1003697  Price: $346.77

    Item: REPAIR KIT 3180 HINGE

    QTY:
