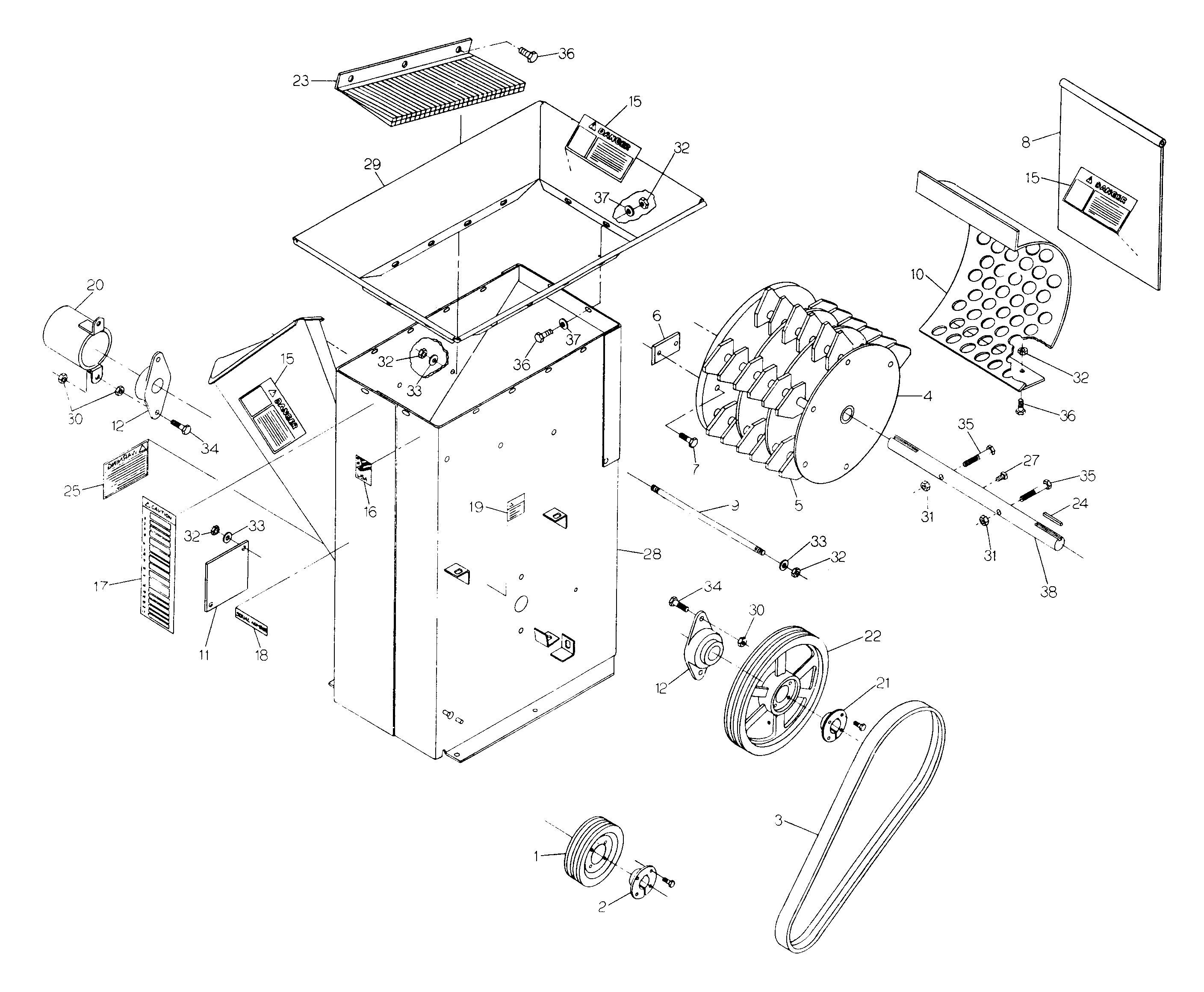

WOODS 5020 CHIPPER/SHREDDER Chipper-Shredder Assembly

    WOODS >woods-5020-chipper-shredder-chipper-shredder-parts-chipper-shredder-assembly
    Ref: 1  Part #: 51291  Price: $66.11

    Item: Sheave, 2B5.2 SDS

    QTY:
    Ref: 2  Part #: 51292  Price: $32.27

    Item: BUSHING, 1-7/16 SDS

    QTY:
    Ref: 3  Part #: 51295  Price: $155.45

    Item: BELT, 2B70 BANDED

    QTY:
    Ref: 4  Part #: 51402  Price: $1,246.80

    Item: WELDMENT, LARGE ROTOR

    QTY:
    Ref: 5  Part #: 51218  Price: $465.06

    Item: SHREDDER KNIFE KIT

    QTY:
    Ref:   Part #: 51441  Price: $36.82

    Item: SHREDDING KNIFE, RECTANGULAR

    QTY:
    Ref:   Part #: 51259  Price: $2.82

    Item: SKT HD CS 10-24X1-1/8 ZP

    QTY:
    Ref:   Part #: 51252  Price: $0.99

    Item: LOCKNUT, 10 NYL INSERT TPNEZP

    QTY:
    Ref:   Part #: 51407  Price: $5.50

    Item: SPACER, .75 X 1.47

    QTY:
    Ref:   Part #: 51405  Price: $9.68

    Item: SPACER, .75 X 1.18

    QTY:
    Ref:   Part #: 51406  Price: $14.17

    Item: SPACER, .75 X 1.18 W/HOLE

    QTY:
    Ref:   Part #: 51404  Price: $10.53

    Item: SPACER, .75 X .59 W/HOLE

    QTY:
    Ref:   Part #: 51403  Price: $6.30

    Item: SPACER, .75 X .59

    QTY:
    Ref:   Part #: 51409  Price: $58.04

    Item: SHAFT, LARGE ROTOR KNIFE

    QTY:
    Ref: 6  Part #: 51217  Price: $254.28

    Item: CHIPPER BLADE KIT

    QTY:
    Ref: 7  Part #: 51257  Price: $1.12

    Item: Bolt, 5/16 x 1 GR8

    QTY:
    Ref: 8  Part #: 51422  Price: $37.62

    Item: Assy, Discharge Door (See note 2)

    QTY:
    Ref: 9  Part #: 51411  Price: $10.90

    Item: ROD, DOOR PIVOT

    QTY:
    Ref: 10  Part #: 51215  Price: Call for price

    Item: Weldment, Large Coarse Screen

    QTY:
    Ref: 11  Part #: 51410  Price: $12.00

    Item: Cover, Blade Access

    QTY:
    Ref: 12  Part #: 51273  Price: $88.15

    Item: BEARING, 2 BLT FLG 1-1/2 BORE

    QTY:
    Ref: 15  Part #: W51373  Price: $11.63

    Item: DCL, DNGR, ROTATING BLADES

    QTY:
    Ref: 16  Part #: 51374  Price: $4.63

    Item: DECAL, MADE IN USA

    QTY:
    Ref: 17  Part #: W51375  Price: $22.34

    Item: DECAL, OPERATING INSTRUCTIONS

    QTY:
    Ref: 18  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 19  Part #: 51361  Price: $12.58

    Item: DCL, DNGR, SHIELD MISSING

    QTY:
    Ref: 20  Part #: 51415  Price: $50.02

    Item: ROTOR SHAFT END CAP

    QTY:
    Ref: 21  Part #: 51224  Price: $33.99

    Item: BUSHING, 1.5 SK

    QTY:
    Ref: 22  Part #: 51290  Price: $91.96

    Item: Sheave, 2B9.4 SK

    QTY:
    Ref: 23  Part #: 51282  Price: $118.83

    Item: BRUSH, INLET

    QTY:
    Ref: 24  Part #: 1036666RP  Price: $8.36

    Item: KEY, 3/8 X 3/8 X 2

    QTY:
    Ref: 25  Part #: 51317  Price: $3,188.89

    Item: PUMP, HYDROSTATIC

    QTY:
    Ref: 27  Part #: 51593  Price: $0.99

    Item: Screw, 5/16 x 1/2 Set

    QTY:
    Ref: 28  Part #: 51456  Price: $892.30

    Item: Assy, Large Frame With Decals (See note 3)

    QTY:
    Ref: 29  Part #: 51439  Price: $350.17

    Item: ASY, LARGE HOPPER W/DECALS

    QTY:
    Ref: 30  Part #: 765  Price: $3.40

    Item: NUT, LOCK, 1/2 NC ZP

    QTY:
    Ref: 31  Part #: 28093  Price: $1.64

    Item: NUT STOP 3/8 NF ELASTIC

    QTY:
    Ref: 32  Part #: 71061  Price: Call for price

    Item: Nut, 5/16 Nylock

    QTY:
    Ref: 33  Part #: 51591  Price: Call for price

    Item: Washer, 5/16 SAE

    QTY:
    Ref: 34  Part #: 3699  Price: $2.31

    Item: BOLT, HEX 1/2 NC X 2 GR5

    QTY:
    Ref: 35  Part #: 2290  Price: $3.31

    Item: BOLT, HEX 3/8 NC X 2-1/2 GR5 ZP

    QTY:
    Ref: 36  Part #: 6096  Price: $1.44

    Item: BOLT, HEX 5/16 NC X 3/4 GR5

    QTY:
    Ref: 37  Part #: 4378  Price: $0.99

    Item: WASHER, FLAT SAE 5/16

    QTY:
    Ref: 38  Part #: 51408  Price: $127.41

    Item: SHAFT, LARGE ROTOR
