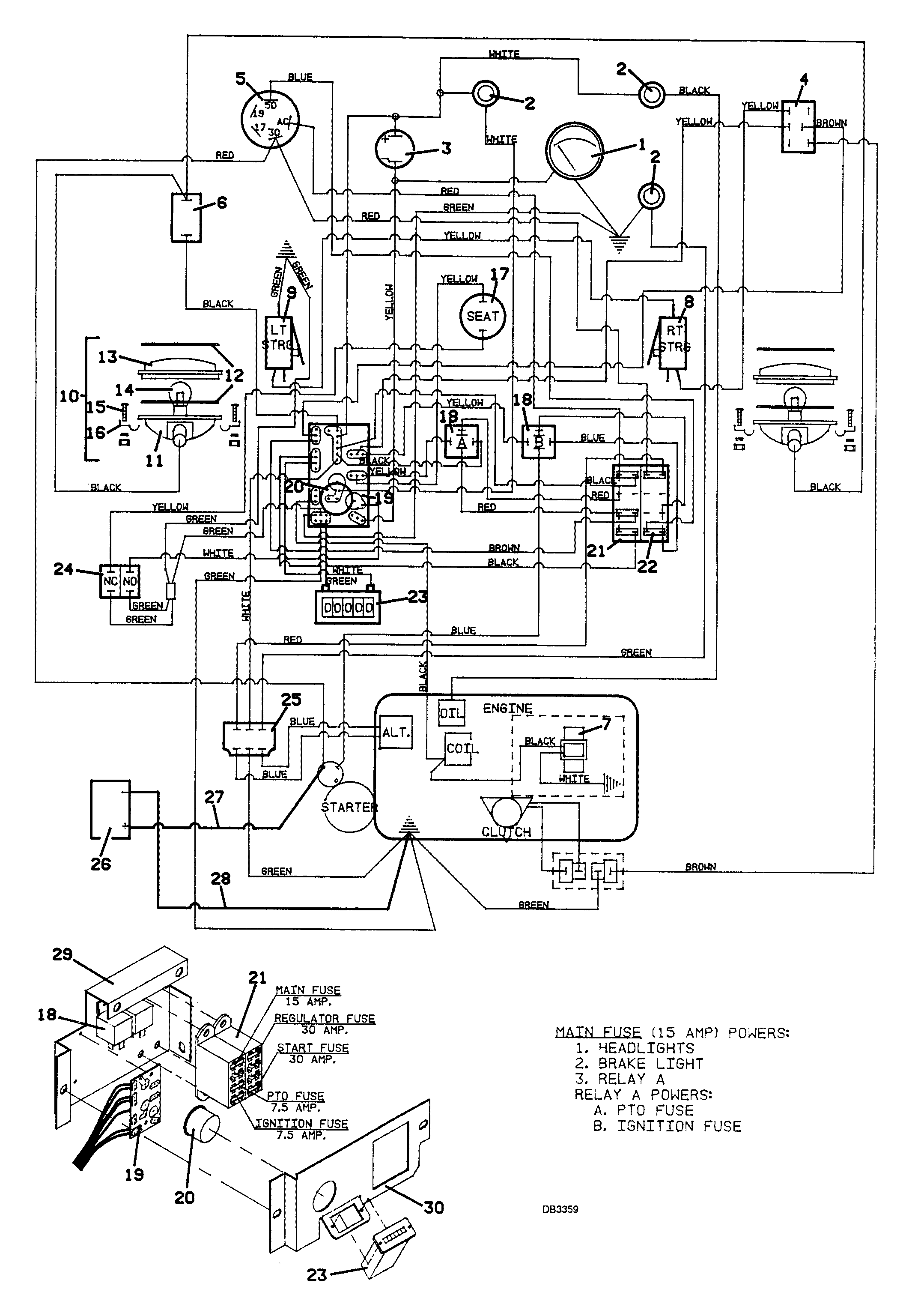

WOODS 5210 Wiring Diagram - Gasoline SN 325649 & Below Assembly

    WOODS >woods-5210-mow-n-machine-parts-wiring-diagram---gasoline-sn-325649-&-below-assembly
    Ref: 1  Part #: W71129  Price: $183.70

    Item: COOLANT TEMP GAUGE /MR

    QTY:
    Ref: 2  Part #: 70550  Price: $23.33

    Item: SIGNAL LIGHT /MR

    QTY:
    Ref: 3  Part #: 71147  Price: Call for price

    Item: Buzzer & mount assembly (See note 1)

    QTY:
    Ref: 4  Part #: W72372  Price: $43.32

    Item: PTO SWITCH - COVER ASY /MR

    QTY:
    Ref: 5  Part #: W70557  Price: $160.07

    Item: IGNITION SWITCH

    QTY:
    Ref:   Part #: W70968  Price: $21.63

    Item: 2 KEY SET IGNITION

    QTY:
    Ref: 6  Part #: 70401  Price: $54.91

    Item: LIGHT SWITCH /MR

    QTY:
    Ref: 7  Part #: W71414  Price: $353.31

    Item: FUEL PUMP /MR

    QTY:
    Ref: 8  Part #: 75105  Price: $32.89

    Item: SAFETY SWITCH STRNG

    QTY:
    Ref:   Part #: W71313RP  Price: $47.53

    Item: MOUNT-STRG SW RT /MR

    QTY:
    Ref: 9  Part #: 75105  Price: $32.89

    Item: SAFETY SWITCH STRNG

    QTY:
    Ref:   Part #: W71314RP  Price: $47.47

    Item: MOUNT-STRG SW LT /MR

    QTY:
    Ref: 10  Part #: 70404  Price: Call for price

    Item: Light assembly (See note 3)

    QTY:
    Ref: 11  Part #: 70405  Price: Call for price

    Item: Lamp housing

    QTY:
    Ref: 12  Part #: 70406  Price: Call for price

    Item: Lens gasket

    QTY:
    Ref: 13  Part #: 70407  Price: Call for price

    Item: Lens

    QTY:
    Ref: 14  Part #: 70408  Price: Call for price

    Item: Bulb

    QTY:
    Ref: 15  Part #: 70402  Price: Call for price

    Item: Machine screw, 10-24 x .75

    QTY:
    Ref: 16  Part #: 70403  Price: Call for price

    Item: Clip - 1 x .50 x .187

    QTY:
    Ref: 17  Part #: 71389  Price: Call for price

    Item: Seat safety switch

    QTY:
    Ref: 18  Part #: W71475  Price: $62.91

    Item: RELAY,

    QTY:
    Ref: 19  Part #: W71417  Price: $1,063.12

    Item: 5210/5250 WIRING ASY /MR

    QTY:
    Ref: 20  Part #: 72001  Price: $0.99

    Item: 72001

    QTY:
    Ref: 21  Part #: W71410  Price: $32.41

    Item: FUSE BLOCK /MR

    QTY:
    Ref: 22  Part #: W71385  Price: $6.13

    Item: FUSE-30 AMP AUTO /MR

    QTY:
    Ref:   Part #: 71386  Price: $19.08

    Item: Fuse, 15 amp auto

    QTY:
    Ref:   Part #: W71387  Price: $6.65

    Item: FUSE-7.5 AMP AUTO /MR

    QTY:
    Ref:   Part #: W71387  Price: $6.65

    Item: FUSE-7.5 AMP AUTO /MR

    QTY:
    Ref: 23  Part #: W73902  Price: $100.69

    Item: HOUR, METER

    QTY:
    Ref: 24  Part #: 71148  Price: $25.03

    Item: BRAKE SFTY SWITCH

    QTY:
    Ref: 25  Part #: W70111  Price: $369.13

    Item: VOLTAGE REGULATOR /MR

    QTY:
    Ref: 26  Part #: 70586  Price: Call for price

    Item: Battery - 12 Volt

    QTY:
    Ref:   Part #: W70729  Price: $89.54

    Item: BATTERY BOX /MR

    QTY:
    Ref:   Part #: W70731  Price: $156.62

    Item: BATTERY BOX COVER /MR

    QTY:
    Ref:   Part #: W70733RP  Price: $34.76

    Item: BATTERY CLAMP /MR

    QTY:
    Ref: 27  Part #: W70735  Price: $20.00

    Item: BATTERY CABLE-10 /MR

    QTY:
    Ref:   Part #: 70274  Price: $3.71

    Item: BATTERY TERMINAL BOOT

    QTY:
    Ref: 28  Part #: W70444  Price: $45.98

    Item: BATTERY CABLE /MR

    QTY:
    Ref: 29  Part #: 71392  Price: Call for price

    Item: Fuse block mount

    QTY:
    Ref: 30  Part #: 71393  Price: Call for price

    Item: Fuse block cover

    QTY:
