Ref	Part #	Item	Price
1	4155	1/4COLD SHUT REPAIR LINK	$11.25
2	4154	4/0 PASNG LNK CH 33 LNKS	$9.09
3	13450	1/4 KEYSTONE CONCTG LINK	$26.66
4	10670	Diverter baffle	Call for price
5	6911	2/0STR LNK COIL CHN 7LNK	$12.88
6	7445	Hydraulic lift triangular assembly (See note 1)	$82.83
7	10750	Lift support frame	$107.03
8	1791	SLEEVE, .625 X 1.00 X .563 HT	$2.52
9	2688	5/32 HAIR PIN COTTER	$2.52
10	7468	PIN CLV 7/16 X 2-1/8	$9.38
11	W7443	HOSE .25ID X .25NPT X 42	$48.94
12	7458	End pipe assembly	Call for price
13	W7444	ELBOW, 1/4 NPTM X 1/4 NPTF X 45	$10.10
14	7461	Idler & mounting frame assembly	Call for price
15	7451RP	SHV 8.15 IB SPCL	$122.70
16	7452	6-1/4 OD FLAT IDLR - BRG	$108.97
17	7452	6-1/4 OD FLAT IDLR - BRG	$108.97
18	6095	BRG-BALL .626 ID X 1.85 OD	$33.79
19	4152	W180 V-BELT - 4501 59C	$127.10
20	4336	V GROOVE IDLR W BRG	$81.23
21	4336	V GROOVE IDLR W BRG	$81.23
22	7453	WSHR 5/8ID 1-3/8OD 7/16THICK	$5.54
23	9039	Manual lift	Call for price
40	6240	1/2 NC x 2-1/4 Hex head cap screw (See note 5)	Call for price
41	3489	BOLT, HEX 1/2 NC X 3 GR5 ZP	$2.74
42	3889	1/2 NC x 3-3/4 Hex head cap screw (See note 7)	Call for price
43	1093	NUT, HEX HEAVY 1/2 NC ZP	$1.54
44	855	WASHER, LOCK, 1/2 ZP	$1.44
45	6268	5/8 NC x 1-1/4 Hex head cap screw (See note 10)	Call for price
46	6238	5/8 NC x 2-1/4 Hex head cap screw (See note 11)	Call for price
47	3631	5/8 NC x 3 Hex head cap screw (See note 12)	Call for price
48	230	NUT, HEX, 5/8 NC PLATD	$1.72
49	1598	NUT JAM 5/8 NC ZP	$1.54
50	1286	WASHER, LOCK, HEAVY ZP	$1.72
51	692	WASHER, FLAT, 5/8 STD ZP	$1.72
52	5655	5/8 NC x 3-1/2 Carriage bolt (See note 17)	Call for price
53	832	WASHER, FLAT, 1 STD ZP	$2.13

Ref: 1 Part #: 4155 Price: $11.25

Item: 1/4COLD SHUT REPAIR LINK

QTY:

Ref: 2 Part #: 4154 Price: $9.09

Item: 4/0 PASNG LNK CH 33 LNKS

QTY:

Ref: 3 Part #: 13450 Price: $26.66

Item: 1/4 KEYSTONE CONCTG LINK

QTY:

Ref: 4 Part #: 10670 Price: Call for price

Item: Diverter baffle

QTY:

Ref: 5 Part #: 6911 Price: $12.88

Item: 2/0STR LNK COIL CHN 7LNK

QTY:

Ref: 6 Part #: 7445 Price: $82.83

Item: Hydraulic lift triangular assembly (See note 1)

QTY:

Ref: 7 Part #: 10750 Price: $107.03

Item: Lift support frame

QTY:

Ref: 8 Part #: 1791 Price: $2.52

Item: SLEEVE, .625 X 1.00 X .563 HT

QTY:

Ref: 9 Part #: 2688 Price: $2.52

Item: 5/32 HAIR PIN COTTER

QTY:

Ref: 10 Part #: 7468 Price: $9.38

Item: PIN CLV 7/16 X 2-1/8

QTY:

Ref: 11 Part #: W7443 Price: $48.94

Item: HOSE .25ID X .25NPT X 42

QTY:

Ref: 12 Part #: 7458 Price: Call for price

Item: End pipe assembly

QTY:

Ref: 13 Part #: W7444 Price: $10.10

Item: ELBOW, 1/4 NPTM X 1/4 NPTF X 45

QTY:

Ref: 14 Part #: 7461 Price: Call for price

Item: Idler & mounting frame assembly

QTY:

Ref: 15 Part #: 7451RP Price: $122.70

Item: SHV 8.15 IB SPCL

QTY:

Ref: 16 Part #: 7452 Price: $108.97

Item: 6-1/4 OD FLAT IDLR - BRG

QTY:

Ref: 17 Part #: 7452 Price: $108.97

Item: 6-1/4 OD FLAT IDLR - BRG

QTY:

Ref: 18 Part #: 6095 Price: $33.79

Item: BRG-BALL .626 ID X 1.85 OD

QTY:

Ref: 19 Part #: 4152 Price: $127.10

Item: W180 V-BELT - 4501 59C

QTY:

Ref: 20 Part #: 4336 Price: $81.23

Item: V GROOVE IDLR W BRG

QTY:

Ref: 21 Part #: 4336 Price: $81.23

Item: V GROOVE IDLR W BRG

QTY:

Ref: 22 Part #: 7453 Price: $5.54

Item: WSHR 5/8ID 1-3/8OD 7/16THICK

QTY:

Ref: 23 Part #: 9039 Price: Call for price

Item: Manual lift

QTY:

Ref: 40 Part #: 6240 Price: Call for price

Item: 1/2 NC x 2-1/4 Hex head cap screw (See note 5)

QTY:

Ref: 41 Part #: 3489 Price: $2.74

Item: BOLT, HEX 1/2 NC X 3 GR5 ZP

QTY:

Ref: 42 Part #: 3889 Price: Call for price

Item: 1/2 NC x 3-3/4 Hex head cap screw (See note 7)

QTY:

Ref: 43 Part #: 1093 Price: $1.54

Item: NUT, HEX HEAVY 1/2 NC ZP

QTY:

Ref: 44 Part #: 855 Price: $1.44

Item: WASHER, LOCK, 1/2 ZP

QTY:

Ref: 45 Part #: 6268 Price: Call for price

Item: 5/8 NC x 1-1/4 Hex head cap screw (See note 10)

QTY:

Ref: 46 Part #: 6238 Price: Call for price

Item: 5/8 NC x 2-1/4 Hex head cap screw (See note 11)

QTY:

Ref: 47 Part #: 3631 Price: Call for price

Item: 5/8 NC x 3 Hex head cap screw (See note 12)

QTY:

Ref: 48 Part #: 230 Price: $1.72

Item: NUT, HEX, 5/8 NC PLATD

QTY:

Ref: 49 Part #: 1598 Price: $1.54

Item: NUT JAM 5/8 NC ZP

QTY:

Ref: 50 Part #: 1286 Price: $1.72

Item: WASHER, LOCK, HEAVY ZP

QTY:

Ref: 51 Part #: 692 Price: $1.72

Item: WASHER, FLAT, 5/8 STD ZP

QTY:

Ref: 52 Part #: 5655 Price: Call for price

Item: 5/8 NC x 3-1/2 Carriage bolt (See note 17)

QTY:

Ref: 53 Part #: 832 Price: $2.13

Item: WASHER, FLAT, 1 STD ZP

QTY:

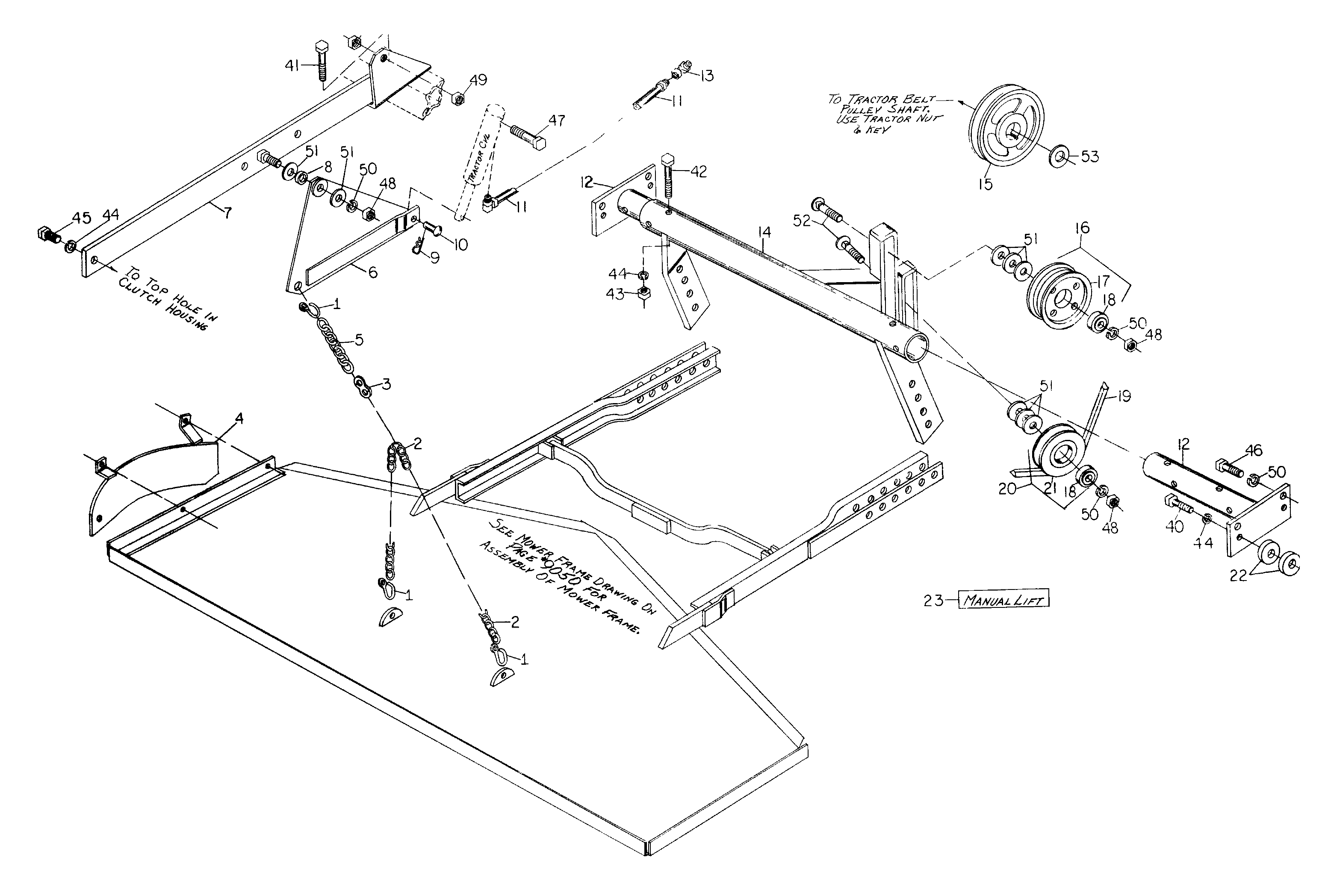

WOODS 59AC ALLIS CHALMERS INCHB INCH & INCHC INCH (6/64) Mounting Frame Assembly
