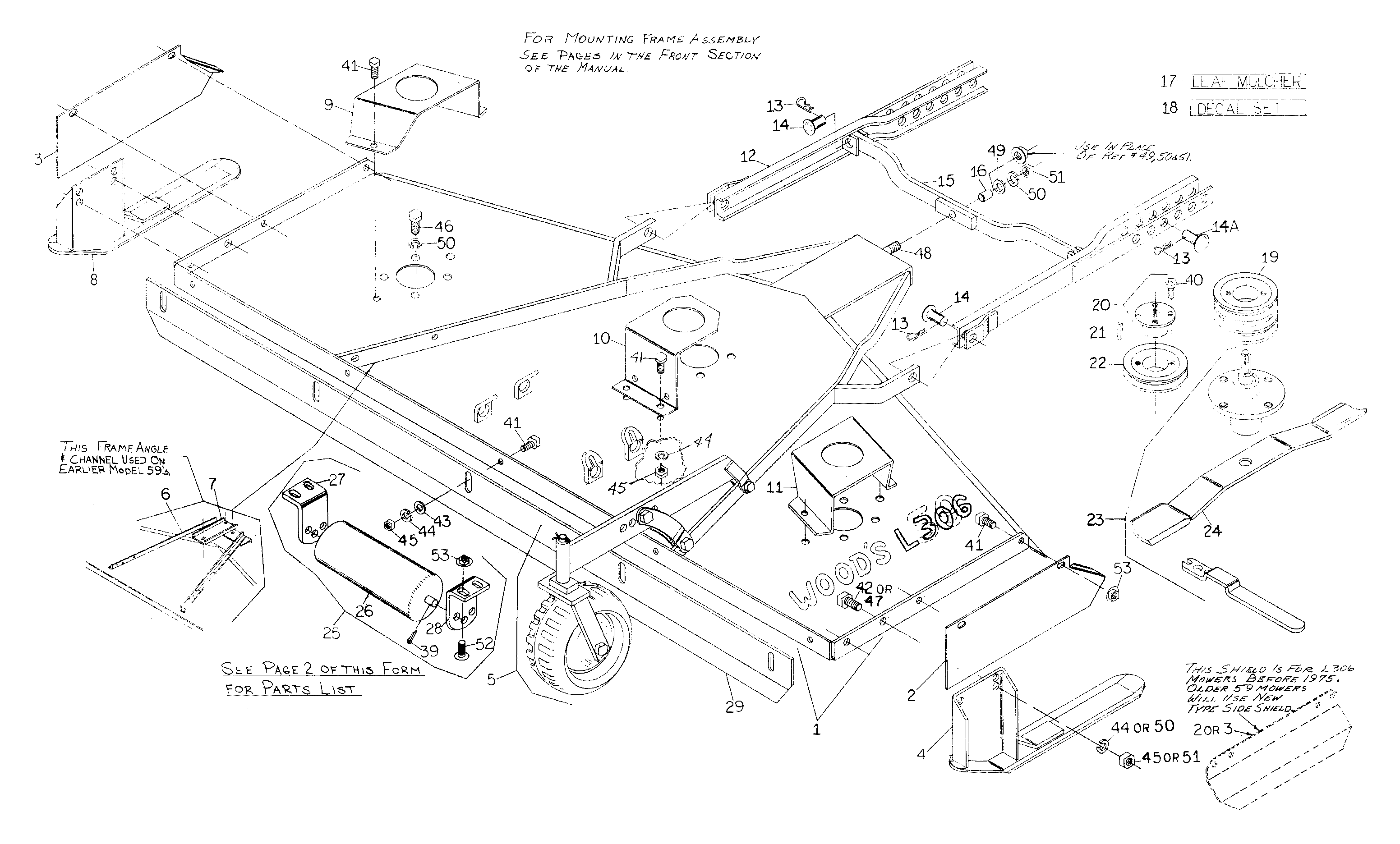

WOODS 59AC ALLIS CHALMERS INCHB INCH & INCHC INCH (6/64) Mower Frame Assembly

    WOODS >woods-59ac-allis-chalmers-b-and-c-6-64-undermount-mid-mount-rotary-cutter-parts-mower-frame-assembly
    Ref: 1  Part #: 6757  Price: Call for price

    Item: Frame only (See note 1)

    QTY:
    Ref: 1  Part #: 10721  Price: Call for price

    Item: Frame only (See note 2)

    QTY:
    Ref: 2  Part #: 25513RP  Price: $50.02

    Item: 59ETC LEFT SIDE SHIELD

    QTY:
    Ref: 2  Part #: 25511  Price: $95.96

    Item: L59LTSIDESHIELDW/BAFFLE

    QTY:
    Ref: 3  Part #: 25512  Price: $59.02

    Item: 59RT SIDESHIELDW/BAFFLE

    QTY:
    Ref: 3  Part #: 25510RP  Price: $43.09

    Item: L59ETC RIGHT SIDE SHIELD

    QTY:
    Ref: 4  Part #: W004142  Price: $361.66

    Item: DEL- STUFFING BOX ASSEMBLY

    QTY:
    Ref: 5  Part #: 6760  Price: Call for price

    Item: Casters, pair (See note 8)

    QTY:
    Ref: 6  Part #: 4095  Price: Call for price

    Item: Frame angle (See note 9)

    QTY:
    Ref: 7  Part #: 3491  Price: Call for price

    Item: Channel brace (See note 10)

    QTY:
    Ref: 8  Part #: 4141  Price: $100.69

    Item: 59 RT SIDE SKID W

    QTY:
    Ref: 9  Part #: 4129  Price: $90.74

    Item: 59C 59CL ETC RIGHT SHLD

    QTY:
    Ref: 10  Part #: 4130  Price: $27.32

    Item: 59C 59CL ETC CNTR SHLD

    QTY:
    Ref: 11  Part #: 4128  Price: $70.92

    Item: 59C 59CL ETC LEFT SHIELD

    QTY:
    Ref: 12  Part #: 13314  Price: $85.47

    Item: Channel arms (See note 12)

    QTY:
    Ref: 12  Part #: 18241  Price: $137.34

    Item: 59LBPUSH CHNL W/CLVSBARW

    QTY:
    Ref: 13  Part #: 2688  Price: $2.52

    Item: 5/32 HAIR PIN COTTER

    QTY:
    Ref: 14  Part #: 4097  Price: $3.74

    Item: PIN, CLV 5/8 X 1-1/2

    QTY:
    Ref: 14A  Part #: 410  Price: $3.83

    Item: PIN CLV 5/8 X 1-3/4

    QTY:
    Ref: 15  Part #: 3485  Price: $110.03

    Item: CROSSWISE REAR SUPPORT W

    QTY:
    Ref: 15  Part #: 18245  Price: $205.70

    Item: 59LB CROSSWISE RR SUPORT

    QTY:
    Ref: 16  Part #: 3504  Price: $3.91

    Item: SLV 1/2 X 5/8 X 1-1/16 HT

    QTY:
    Ref: 17  Part #: 7080  Price: Call for price

    Item: Leaf mulcher (See note 16)

    QTY:
    Ref: 18  Part #: 13421  Price: $61.45

    Item: DCL SET, CMPL, 59, L59, L306

    QTY:
    Ref: 19  Part #: 6126RP  Price: $81.38

    Item: 3 BK 3.9 PD SHEAVE H

    QTY:
    Ref: 20  Part #: 4227  Price: $51.26

    Item: BSHG H 3/4 STRT W/BOLTS

    QTY:
    Ref: 21  Part #: 3885  Price: $3.74

    Item: 3/16 X 3/16 X 1-1/4 KEY

    QTY:
    Ref: 22  Part #: 4226RP  Price: $57.29

    Item: 1BK 3 9H SHEAVE

    QTY:
    Ref: 23  Part #: 3761  Price: $208.50

    Item: ASY-SPINDLE L59

    QTY:
    Ref: 23  Part #: 4116  Price: $208.53

    Item: ASY-SPINDLE 59

    QTY:
    Ref: 24  Part #: 23825  Price: Call for price

    Item: Blade (See note 22)

    QTY:
    Ref: 24  Part #: 23825KT  Price: $77.15

    Item: KIT, BLADE, 23825 STD

    QTY:
    Ref: 24  Part #: 6950  Price: Call for price

    Item: Blade (See note 24)

    QTY:
    Ref: 24  Part #: 6950KT  Price: $90.39

    Item: KIT, BLADE, 6950 STD

    QTY:
    Ref: 25  Part #: 24550  Price: Call for price

    Item: Front roller complete (See note 26)

    QTY:
    Ref: 26  Part #: 24583  Price: $123.37

    Item: RM90ETC FRT ROLR BRG-ROD

    QTY:
    Ref: 27  Part #: 24587RP  Price: $34.75

    Item: RM90ETCLT FRT ROLR BRKTW

    QTY:
    Ref: 28  Part #: 24586RP  Price: $34.75

    Item: RM90ETCRT FRT ROLR BRKTW

    QTY:
    Ref: 29  Part #: 5818  Price: $97.17

    Item: 59 ETC FRT SHLD

    QTY:
    Ref: 39  Part #: 1256  Price: $1.19

    Item: 3/16 X 1, COTTER PIN

    QTY:
    Ref: 40  Part #: 2978  Price: $1.44

    Item: SHCS 1/4 NC X 3/4

    QTY:
    Ref: 41  Part #: 1263  Price: Call for price

    Item: 3/8 NC x 1 HHCS (See note 30)

    QTY:
    Ref: 42  Part #: 12169  Price: $1.54

    Item: BOLT, HEX 3/8 NC X 1-1/4 GR5 ZP

    QTY:
    Ref: 43  Part #: 565  Price: $1.72

    Item: WASHER, FLAT 3/8

    QTY:
    Ref: 44  Part #: 838  Price: $1.44

    Item: WASHER, LOCK, 3/8 ZP

    QTY:
    Ref: 45  Part #: 835  Price: $1.72

    Item: NUT, HEX 3/8 NC ZP

    QTY:
    Ref:   Part #: 14350  Price: $1.72

    Item: NUT, LOCK FLANGE 3/8 NC

    QTY:
    Ref: 46  Part #: 4119  Price: $1.90

    Item: BOLT, HEX 1/2 NF X 1 GR5

    QTY:
    Ref: 47  Part #: 6100  Price: $2.52

    Item: BOLT, HEX 1/2 NC X 1-1/4 GR5 ZP

    QTY:
    Ref: 48  Part #: 649  Price: Call for price

    Item: 1/2 NC x 2-1/2 HHCS (See note 38)

    QTY:
    Ref: 48  Part #: 948  Price: Call for price

    Item: 1/2 NC x 2 HHCS (See note 39)

    QTY:
    Ref: 49  Part #: 854  Price: $1.44

    Item: WASHER, FLAT, 1/2 STD ZP

    QTY:
    Ref: 50  Part #: 855  Price: $1.44

    Item: WASHER, LOCK, 1/2 ZP

    QTY:
    Ref: 51  Part #: 1093  Price: $1.54

    Item: NUT, HEX HEAVY 1/2 NC ZP

    QTY:
    Ref:   Part #: 11900  Price: $1.90

    Item: NUT, LOCK FLANGE 1/2 NC

    QTY:
    Ref: 52  Part #: 6697  Price: $1.72

    Item: BOLT, CARRIAGE 3/8 NC X 1 GR5 ZP

    QTY:
    Ref: 53  Part #: 14350  Price: $1.72

    Item: NUT, LOCK FLANGE 3/8 NC

    QTY:
