KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
1	38042	NUT JAM 5/8 NF	$2.13
2	10378	BOLT, HEX 1/4NC X 1 GR5	$0.99
3	38020	WSHR .679X 1.41 LOCK	$4.58
4	1985	WASHER, LOCK 1/4	$1.64
5	34756	BSHG H 3/4 W/KEY-HDWR	$42.01
6	66694RP	SHV-4.17 1G B H	$61.51
7	53551	ASY SPINDLE REPAIR	$231.41
8	5089	SEAL 1.06 X 2.0 X .44	$6.42
9	24135	SLV 27/32 X 1-1/16X 5/8	$14.60
10	4107	BRG-CONE M12649	$22.96
11	38106	BLADE SPINDLE HOUSING W/CUPS	$138.92
12	4106	BEARING CUP M12610	$12.92
14	53525	SHAFT SPINDLE W/KEYWAY DRLD	$149.46
15	55333	WSHR SHLDR .641 X 3 X 1.53	$88.56
16	1001513KT	KIT, BLADE HIGH SUCTION 21 IN	$102.35
17	53584	WSHR .64 X 2.47 X .25 BELL	$24.91
18	23141	BOLT, HEX 5/8 NC X 3-1/2 HT	$3.23
19	4358	HHCS 1/2 NF X 1-1/4 GR5	$1.90
21	1972	FITTING, GREASE ZERK 1/4-28	$2.93
	7144BDKT	KIT BLADE 7144RD CMPL	$269.47
	9180BDKT	KIT BLADE 9180RD CMPL	$322.34
	9204BDKT	KIT BLADE 9204RD CMPL	$386.87
	1008199KT2	KIT, 2 BLADES 1008199 STD	$91.92
	1001513KT	KIT, BLADE HIGH SUCTION 21 IN	$102.35
	1008199KT	KIT, BLADE RD7200,RD72 HIGHLIFT	$102.17
	1001511KT2	KIT 2BLADE 1001511 LOW SUCTION	$104.59
	1001513KT	KIT, BLADE HIGH SUCTION 21 IN	$102.35
	1001511KT	KIT BLADE RD7200 LOW SUCTION	$153.70
	1001850KT2	KIT 2BLADE 1001850 MULCHING	$120.51
	75150 KIT BLADE MX61 MULCHING	KIT BLADE MX61 MULCHING	Call for price
	1001850KT	KIT BLADE RD7200 MULCHING	$135.01

Ref: 1 Part #: 38042 Price: $2.13

Item: NUT JAM 5/8 NF

QTY:

Ref: 2 Part #: 10378 Price: $0.99

Item: BOLT, HEX 1/4NC X 1 GR5

QTY:

Ref: 3 Part #: 38020 Price: $4.58

Item: WSHR .679X 1.41 LOCK

QTY:

Ref: 4 Part #: 1985 Price: $1.64

Item: WASHER, LOCK 1/4

QTY:

Ref: 5 Part #: 34756 Price: $42.01

Item: BSHG H 3/4 W/KEY-HDWR

QTY:

Ref: 6 Part #: 66694RP Price: $61.51

Item: SHV-4.17 1G B H

QTY:

Ref: 7 Part #: 53551 Price: $231.41

Item: ASY SPINDLE REPAIR

QTY:

Ref: 8 Part #: 5089 Price: $6.42

Item: SEAL 1.06 X 2.0 X .44

QTY:

Ref: 9 Part #: 24135 Price: $14.60

Item: SLV 27/32 X 1-1/16X 5/8

QTY:

Ref: 10 Part #: 4107 Price: $22.96

Item: BRG-CONE M12649

QTY:

Ref: 11 Part #: 38106 Price: $138.92

Item: BLADE SPINDLE HOUSING W/CUPS

QTY:

Ref: 12 Part #: 4106 Price: $12.92

Item: BEARING CUP M12610

QTY:

Ref: 14 Part #: 53525 Price: $149.46

Item: SHAFT SPINDLE W/KEYWAY DRLD

QTY:

Ref: 15 Part #: 55333 Price: $88.56

Item: WSHR SHLDR .641 X 3 X 1.53

QTY:

Ref: 16 Part #: 1001513KT Price: $102.35

Item: KIT, BLADE HIGH SUCTION 21 IN

QTY:

Ref: 17 Part #: 53584 Price: $24.91

Item: WSHR .64 X 2.47 X .25 BELL

QTY:

Ref: 18 Part #: 23141 Price: $3.23

Item: BOLT, HEX 5/8 NC X 3-1/2 HT

QTY:

Ref: 19 Part #: 4358 Price: $1.90

Item: HHCS 1/2 NF X 1-1/4 GR5

QTY:

Ref: 21 Part #: 1972 Price: $2.93

Item: FITTING, GREASE ZERK 1/4-28

QTY:

Ref: Part #: 7144BDKT Price: $269.47

Item: KIT BLADE 7144RD CMPL

QTY:

Ref: Part #: 9180BDKT Price: $322.34

Item: KIT BLADE 9180RD CMPL

QTY:

Ref: Part #: 9204BDKT Price: $386.87

Item: KIT BLADE 9204RD CMPL

QTY:

Ref: Part #: 1008199KT2 Price: $91.92

Item: KIT, 2 BLADES 1008199 STD

QTY:

Ref: Part #: 1001513KT Price: $102.35

Item: KIT, BLADE HIGH SUCTION 21 IN

QTY:

Ref: Part #: 1008199KT Price: $102.17

Item: KIT, BLADE RD7200,RD72 HIGHLIFT

QTY:

Ref: Part #: 1001511KT2 Price: $104.59

Item: KIT 2BLADE 1001511 LOW SUCTION

QTY:

Ref: Part #: 1001513KT Price: $102.35

Item: KIT, BLADE HIGH SUCTION 21 IN

QTY:

Ref: Part #: 1001511KT Price: $153.70

Item: KIT BLADE RD7200 LOW SUCTION

QTY:

Ref: Part #: 1001850KT2 Price: $120.51

Item: KIT 2BLADE 1001850 MULCHING

QTY:

Ref: Part #: 75150 KIT BLADE MX61 MULCHING Price: Call for price

Item: KIT BLADE MX61 MULCHING

QTY:

Ref: Part #: 1001850KT Price: $135.01

Item: KIT BLADE RD7200 MULCHING

QTY:

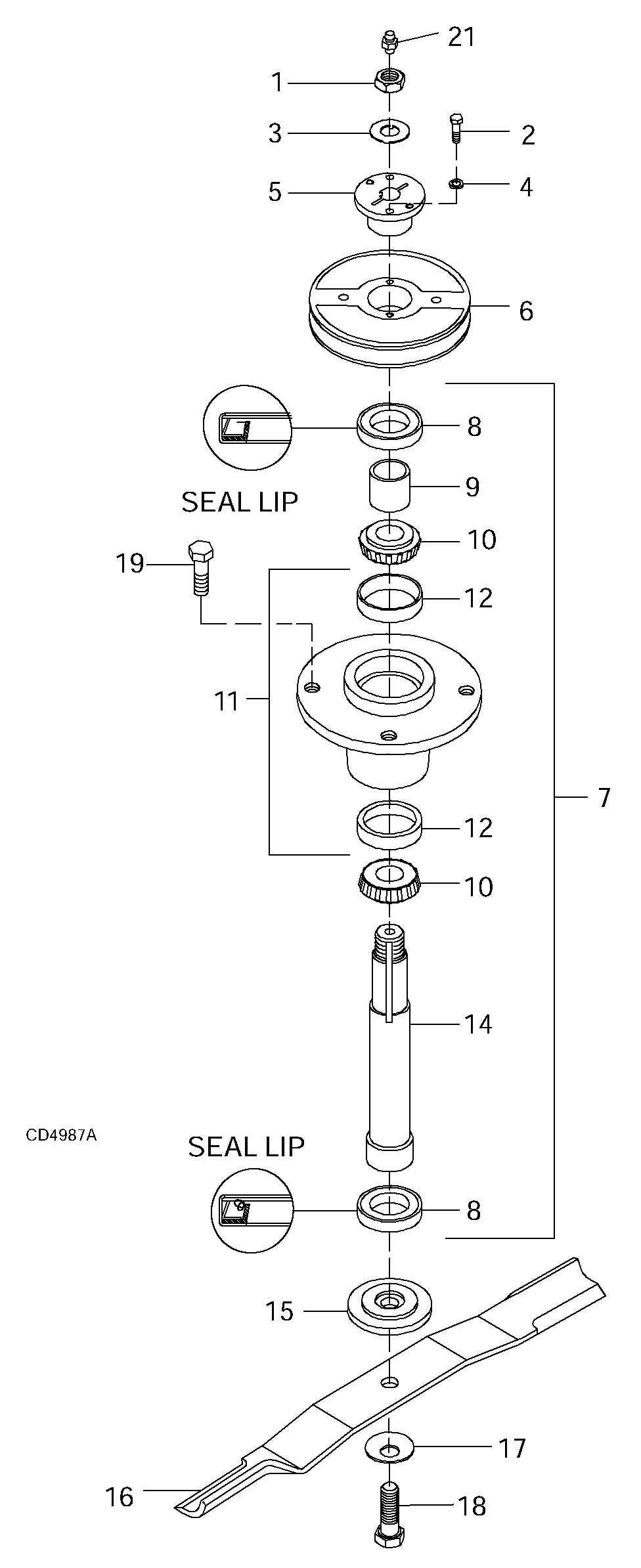

WOODS 7144RD Center 7144RD & 9180RD Wing Blade & Spindle Assembly SN 793931 & Prior
