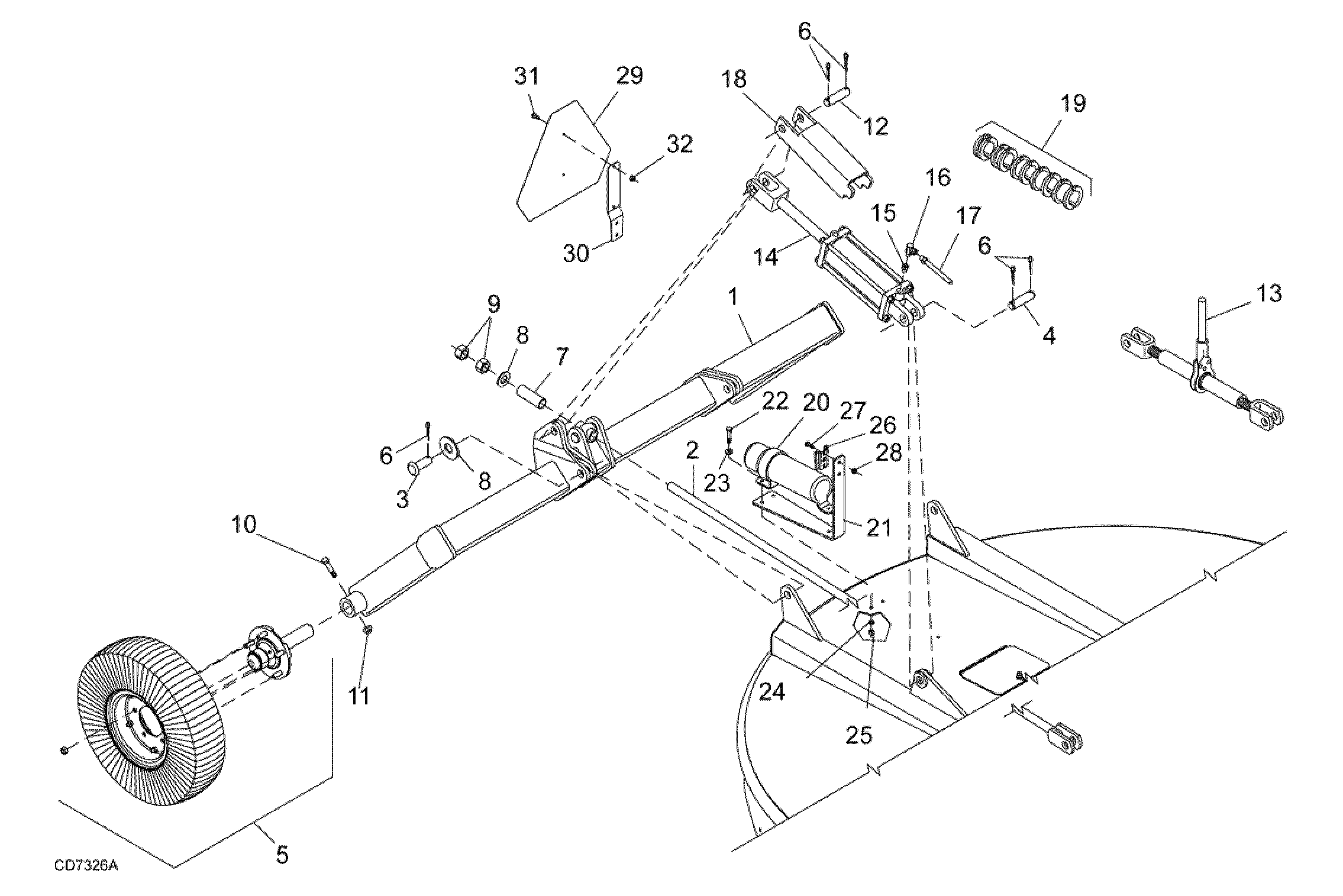

WOODS BB840XP ROTARY CUTTER Rear Tailwheel Yoke Assembly - BB840XP (Pull-Type)

    WOODS >woods-bb840xp-rotary-cutter-parts-rear-tailwheel-yoke-assembly---bb840xp-(pull-type)
    Ref: 1  Part #: 1023152  Price: $912.35

    Item: Rear yoke

    QTY:
    Ref: 2  Part #: 1003491RP  Price: $213.50

    Item: WA ATTITUDE ROD

    QTY:
    Ref: 3  Part #: 46605  Price: $11.38

    Item: PIN, CLEVIS 1.00 X 2.26

    QTY:
    Ref: 4  Part #: 1631  Price: $16.31

    Item: PIN, HDLS 1.00 X 2.72

    QTY:
    Ref: 5  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 6  Part #: 1285  Price: $1.44

    Item: PIN, COTTER 1/4 X 1-1/2

    QTY:
    Ref: 7  Part #: 27267  Price: $11.72

    Item: PIIPE, 1 SCHEDULE 40 X 3.75

    QTY:
    Ref: 8  Part #: 1863  Price: $2.13

    Item: WASHER, FLAT, 1 SAE ZP

    QTY:
    Ref: 9  Part #: 3132  Price: $7.38

    Item: NUT, HEX, 1 NC ZP

    QTY:
    Ref: 10  Part #: 3489  Price: $2.74

    Item: BOLT, HEX 1/2 NC X 3 GR5 ZP

    QTY:
    Ref: 11  Part #: 11900  Price: $1.90

    Item: NUT, LOCK FLANGE 1/2 NC

    QTY:
    Ref: 12  Part #: 8345  Price: $16.47

    Item: PIN, HDLS 1.00 X 4.08

    QTY:
    Ref: 13  Part #: S010541OE  Price: $99.11

    Item: OEM, BLACK POWDER ACME JACK

    QTY:
    Ref: 14  Part #: 10475  Price: $274.00

    Item: 3-1/2X8 HYD CYLW

    QTY:
    Ref: 15  Part #: W11893  Price: $2.52

    Item: ADAPTER, 1/4 NPTF 1/2 NPTM

    QTY:
    Ref: 16  Part #: 10290  Price: $7.20

    Item: FITTING, ELBOW 1/4 X X1/4 W/1/16 RESTRC

    QTY:
    Ref: 17  Part #: 8669  Price: $104.20

    Item: HOSE, 1/4 X 1/4 X 156

    QTY:
    Ref: 18  Part #: 1004814RP  Price: $156.43

    Item: TRANSPORT LOCK-UP

    QTY:
    Ref: 19  Part #: 24098  Price: $40.68

    Item: 1-1/4CYL STRK CN

    QTY:
    Ref: 20  Part #: 1003828  Price: $28.92

    Item: MANUAL TUBE, 3.50 X 3.23 X 11.86

    QTY:
    Ref: 21  Part #: 1021369  Price: $23.98

    Item: SMV Mounting bracket

    QTY:
    Ref: 22  Part #: 6250  Price: $1.44

    Item: HHCS, 5/16 NC X 1-1/4 GR5 ZP

    QTY:
    Ref: 23  Part #: 35155  Price: $2.13

    Item: WASHER, FLAT 5/16

    QTY:
    Ref: 24  Part #: 2472  Price: $1.19

    Item: WASHER, LOCK 5/16

    QTY:
    Ref: 25  Part #: 4529  Price: $2.13

    Item: NUT, HEX 5/16 NC

    QTY:
    Ref: 26  Part #: 62484  Price: $8.77

    Item: SOCKET, SMV EMBLEM

    QTY:
    Ref: 27  Part #: 16148  Price: $1.15

    Item: BOLT, CARRIAGE, 5/16 NC X 3/4

    QTY:
    Ref: 28  Part #: 14139  Price: $3.13

    Item: NUT, LOCK FLANGE 5/16 NC

    QTY:
    Ref: 29  Part #: 24611  Price: $49.54

    Item: EMBLEM, SMV

    QTY:
    Ref: 30  Part #: 1004251  Price: $13.13

    Item: EMBLEM, SMV BRACKET

    QTY:
    Ref: 31  Part #: 1282  Price: $0.99

    Item: SCREW, ROUND HEAD SLOTTED 1/4NC X X1/2

    QTY:
    Ref: 32  Part #: 5288  Price: $1.54

    Item: NUT, HEX 1/4 NC

    QTY:
