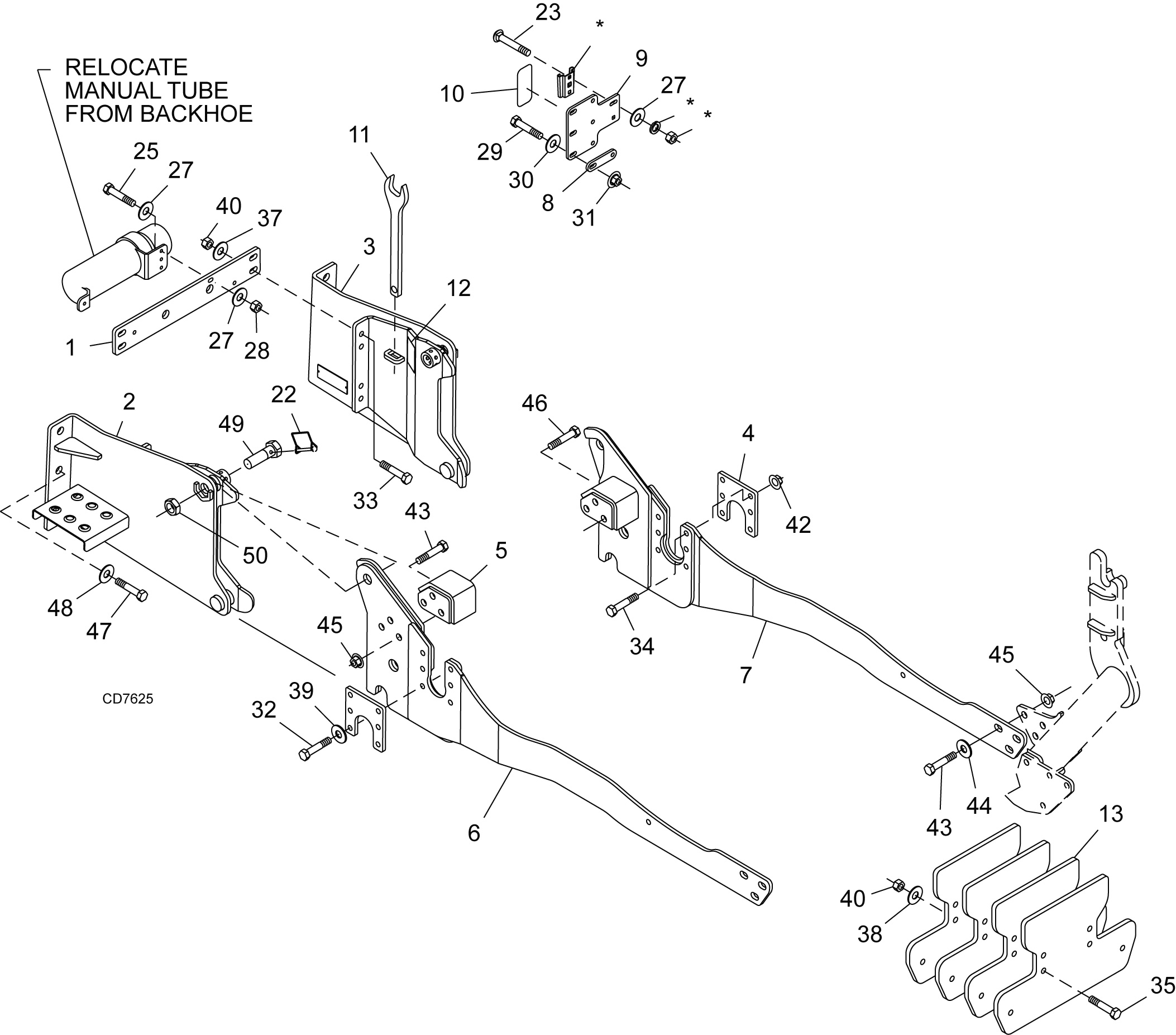

WOODS BH80 X BACKHOE Attachment: 4-Point Sub-Frame Mounting Kit for 1031725 Assembly

    WOODS >woods-bh80-x-backhoe-parts-attachment:-4-point-sub-frame-mounting-kit-for-1031725-assembly
    Ref: 1  Part #: 1009810RP  Price: $61.52

    Item: CROSS MEMBER

    QTY:
    Ref: 2  Part #: 1019084  Price: $49.28

    Item: Right Backhoe Bracket

    QTY:
    Ref: 3  Part #: 1019085RP  Price: $384.20

    Item: WA BH HALF LT

    QTY:
    Ref: 4  Part #: 1023929RP  Price: $18.32

    Item: AXLE LINK

    QTY:
    Ref: 5  Part #: 1031734RP  Price: $97.73

    Item: WA - ROPS BRACKET

    QTY:
    Ref: 6  Part #: 1031728RP  Price: $316.88

    Item: WA - RT TRACTOR MOUNT

    QTY:
    Ref: 7  Part #: 1031729RP  Price: $316.88

    Item: WA - LT TRACTOR MOUNT

    QTY:
    Ref: 8  Part #: 1012886RP  Price: $28.00

    Item: SMV LINK

    QTY:
    Ref: 9  Part #: 1012887RP  Price: $40.18

    Item: SMV BRACKET

    QTY:
    Ref: 10  Part #: 20106  Price: $2.95

    Item: DECAL, REFLECTOR RED 2.0 X 4.5 RED

    QTY:
    Ref: 11  Part #: 1006883RP  Price: $53.63

    Item: WRENCH 1-1/2 OPEN END

    QTY:
    Ref: 12  Part #: 1006885  Price: $0.99

    Item: DCL WRNG PINCH POINT

    QTY:
    Ref: 13  Part #: 1031741RP  Price: $152.82

    Item: WEIGHT, FRONT

    QTY:
    Ref: 22  Part #: 58047  Price: $8.36

    Item: PIN LOCK 1/4 X 2-1/2

    QTY:
    Ref: 23  Part #: 16148  Price: $1.15

    Item: BOLT, CARRIAGE, 5/16 NC X 3/4

    QTY:
    Ref: 25  Part #: 14562  Price: $1.72

    Item: BOLT, HEX 5/16 NC X 1 GR5

    QTY:
    Ref: 27  Part #: 4378  Price: $0.99

    Item: WASHER, FLAT SAE 5/16

    QTY:
    Ref: 28  Part #: 6778  Price: $1.72

    Item: NUT, LOCK 5/16 NC

    QTY:
    Ref: 29  Part #: 14478  Price: Call for price

    Item: 3/8NC x 4 HHCS GR5 (See note 5)

    QTY:
    Ref: 30  Part #: 565  Price: $1.72

    Item: WASHER, FLAT 3/8

    QTY:
    Ref: 31  Part #: 14350  Price: $1.72

    Item: NUT, LOCK FLANGE 3/8 NC

    QTY:
    Ref: 32  Part #: 1026941  Price: $12.92

    Item: HFS M12-1.75 X 60 CL10.9

    QTY:
    Ref: 33  Part #: 3379  Price: $2.93

    Item: BOLT, HEX 1/2 NC X 1-1/2 GR5 ZP

    QTY:
    Ref: 34  Part #: 1028902  Price: $5.40

    Item: HFS 1/2NC X 1 3/4 GR8

    QTY:
    Ref: 35  Part #: 1637  Price: $3.31

    Item: HHCS, 1/2 NC X 3-1/2 GR5 ZP

    QTY:
    Ref: 37  Part #: 854  Price: $1.44

    Item: WASHER, FLAT, 1/2 STD ZP

    QTY:
    Ref: 38  Part #: 57816  Price: $1.44

    Item: WASHER, FLAT, 1/2 STD HRDN BLKOX

    QTY:
    Ref: 39  Part #: 1012568  Price: $7.22

    Item: WSHR 1/2 NORD LOCK

    QTY:
    Ref: 40  Part #: 1093  Price: $1.54

    Item: NUT, HEX HEAVY 1/2 NC ZP

    QTY:
    Ref: 42  Part #: 1028903  Price: $3.40

    Item: NUT, FLANGE 1/2 NC GRADE 8 ZP

    QTY:
    Ref: 43  Part #: 19024  Price: $5.40

    Item: HFS 5/8 NC X 1-3/4 GR5

    QTY:
    Ref: 44  Part #: 58337  Price: $8.44

    Item: WSHR 5/8 FLAT EXTRA THK HRDN

    QTY:
    Ref: 45  Part #: 19025  Price: $3.31

    Item: NUT, HFN 5/8 NC, LOCK

    QTY:
    Ref: 46  Part #: 1028717  Price: $14.24

    Item: HFS M16-1.5 X 45 CL10.9

    QTY:
    Ref: 47  Part #: 735  Price: $2.05

    Item: HHCS, 3/4 NC X 2 GR5

    QTY:
    Ref: 48  Part #: 1006371  Price: $13.03

    Item: WASHER, 3/4 FLAT EXTRA THK HRDN

    QTY:
    Ref: 49  Part #: 1010597  Price: $17.25

    Item: HHCS 1 UNC X 3 1/4 GR5 ZP, DRL

    QTY:
    Ref: 50  Part #: 2250  Price: $3.31

    Item: NUT HEX 1 NC JAM PLTD

    QTY:
    Ref: 1  Part #: 1009810RP  Price: $61.52

    Item: CROSS MEMBER

    QTY:
    Ref: 2  Part #: 1019084  Price: $49.28

    Item: Right Backhoe Bracket

    QTY:
    Ref: 3  Part #: 1019085RP  Price: $384.20

    Item: WA BH HALF LT

    QTY:
    Ref: 4  Part #: 1023929RP  Price: $18.32

    Item: AXLE LINK

    QTY:
    Ref: 5  Part #: 1031734RP  Price: $97.73

    Item: WA - ROPS BRACKET

    QTY:
    Ref: 6  Part #: 1031728RP  Price: $316.88

    Item: WA - RT TRACTOR MOUNT

    QTY:
    Ref: 7  Part #: 1031729RP  Price: $316.88

    Item: WA - LT TRACTOR MOUNT

    QTY:
    Ref: 8  Part #: 1012886RP  Price: $28.00

    Item: SMV LINK

    QTY:
    Ref: 9  Part #: 1012887RP  Price: $40.18

    Item: SMV BRACKET

    QTY:
    Ref: 10  Part #: 20106  Price: $2.95

    Item: DECAL, REFLECTOR RED 2.0 X 4.5 RED

    QTY:
    Ref: 11  Part #: 1006883RP  Price: $53.63

    Item: WRENCH 1-1/2 OPEN END

    QTY:
    Ref: 12  Part #: 1006885  Price: $0.99

    Item: DCL WRNG PINCH POINT

    QTY:
    Ref: 13  Part #: 1031741RP  Price: $152.82

    Item: WEIGHT, FRONT

    QTY:
    Ref: 22  Part #: 58047  Price: $8.36

    Item: PIN LOCK 1/4 X 2-1/2

    QTY:
    Ref: 23  Part #: 16148  Price: $1.15

    Item: BOLT, CARRIAGE, 5/16 NC X 3/4

    QTY:
    Ref: 25  Part #: 14562  Price: $1.72

    Item: BOLT, HEX 5/16 NC X 1 GR5

    QTY:
    Ref: 27  Part #: 4378  Price: $0.99

    Item: WASHER, FLAT SAE 5/16

    QTY:
    Ref: 28  Part #: 6778  Price: $1.72

    Item: NUT, LOCK 5/16 NC

    QTY:
    Ref: 29  Part #: 14478  Price: Call for price

    Item: 3/8NC x 4 HHCS GR5 (See note 18)

    QTY:
    Ref: 30  Part #: 565  Price: $1.72

    Item: WASHER, FLAT 3/8

    QTY:
    Ref: 31  Part #: 14350  Price: $1.72

    Item: NUT, LOCK FLANGE 3/8 NC

    QTY:
    Ref: 32  Part #: 1026941  Price: $12.92

    Item: HFS M12-1.75 X 60 CL10.9

    QTY:
    Ref: 33  Part #: 3379  Price: $2.93

    Item: BOLT, HEX 1/2 NC X 1-1/2 GR5 ZP

    QTY:
    Ref: 34  Part #: 1028902  Price: $5.40

    Item: HFS 1/2NC X 1 3/4 GR8

    QTY:
    Ref: 35  Part #: 1637  Price: $3.31

    Item: HHCS, 1/2 NC X 3-1/2 GR5 ZP

    QTY:
    Ref: 37  Part #: 854  Price: $1.44

    Item: WASHER, FLAT, 1/2 STD ZP

    QTY:
    Ref: 38  Part #: 57816  Price: $1.44

    Item: WASHER, FLAT, 1/2 STD HRDN BLKOX

    QTY:
    Ref: 39  Part #: 1012568  Price: $7.22

    Item: WSHR 1/2 NORD LOCK

    QTY:
    Ref: 40  Part #: 1093  Price: $1.54

    Item: NUT, HEX HEAVY 1/2 NC ZP

    QTY:
    Ref: 42  Part #: 1028903  Price: $3.40

    Item: NUT, FLANGE 1/2 NC GRADE 8 ZP

    QTY:
    Ref: 43  Part #: 19024  Price: $5.40

    Item: HFS 5/8 NC X 1-3/4 GR5

    QTY:
    Ref: 44  Part #: 58337  Price: $8.44

    Item: WSHR 5/8 FLAT EXTRA THK HRDN

    QTY:
    Ref: 45  Part #: 19025  Price: $3.31

    Item: NUT, HFN 5/8 NC, LOCK

    QTY:
    Ref: 46  Part #: 1028717  Price: $14.24

    Item: HFS M16-1.5 X 45 CL10.9

    QTY:
    Ref: 47  Part #: 735  Price: $2.05

    Item: HHCS, 3/4 NC X 2 GR5

    QTY:
    Ref: 48  Part #: 1006371  Price: $13.03

    Item: WASHER, 3/4 FLAT EXTRA THK HRDN

    QTY:
    Ref: 49  Part #: 1010597  Price: $17.25

    Item: HHCS 1 UNC X 3 1/4 GR5 ZP, DRL

    QTY:
    Ref: 50  Part #: 2250  Price: $3.31

    Item: NUT HEX 1 NC JAM PLTD

    QTY:
