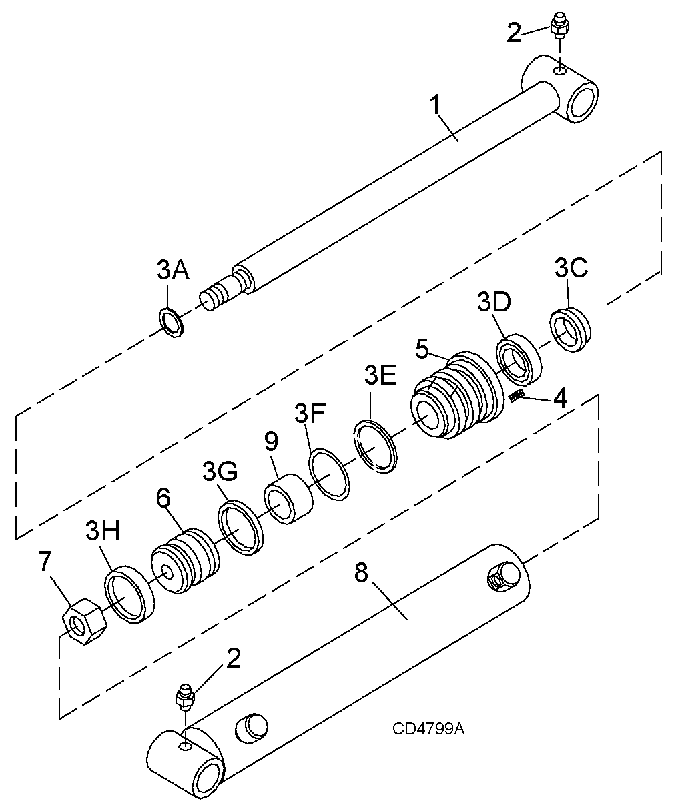

WOODS BH90 X BACKHOE Boom & Dipper Cylinder (Barrel Stamping "E") Assembly

    WOODS >woods-bh90-x-backhoe-parts-boom-&-dipper-cylinder-(barrel-stamping-"e")-assembly
    Ref: A  Part #: 1017725  Price: $671.75

    Item: HYD CYL 3.00 X 1.50 X 21.50

    QTY:
    Ref: B  Part #: 1017726  Price: $668.58

    Item: HYD CYL 3.00 X 1.50 X 19.63

    QTY:
    Ref: 1  Part #: 1020061  Price: $248.40

    Item: Piston rod - Boom

    QTY:
    Ref: 1  Part #: 1020064  Price: $387.00

    Item: ROD ASSY FOR CYL 1017726, 1.50

    QTY:
    Ref: 2  Part #: N/S  Price: Call for price

    Item: Grease fitting (Not serviceable)

    QTY:
    Ref: 3  Part #: 1020025  Price: $126.99

    Item: KIT, SEAL 3.00 X 1.50 CYLINDER

    QTY:
    Ref: 3A  Part #: -----  Price: Call for price

    Item: O-Ring

    QTY:
    Ref: 3C  Part #: -----  Price: Call for price

    Item: Wiper ring

    QTY:
    Ref: 3D  Part #: -----  Price: Call for price

    Item: Seal

    QTY:
    Ref: 3E  Part #: -----  Price: Call for price

    Item: Backup ring

    QTY:
    Ref: 3F  Part #: -----  Price: Call for price

    Item: O-Ring

    QTY:
    Ref: 3G  Part #: -----  Price: Call for price

    Item: Piston seal

    QTY:
    Ref: 3H  Part #: -----  Price: Call for price

    Item: Wear ring

    QTY:
    Ref: 4  Part #: -----  Price: Call for price

    Item: Socket set screw

    QTY:
    Ref: 5  Part #: -----  Price: Call for price

    Item: Guide

    QTY:
    Ref: 6  Part #: -----  Price: Call for price

    Item: Piston

    QTY:
    Ref: 7  Part #: -----  Price: Call for price

    Item: Lock nut

    QTY:
    Ref: 8  Part #: -----  Price: Call for price

    Item: Cylinder body

    QTY:
    Ref: 9  Part #: -----  Price: Call for price

    Item: Tube
