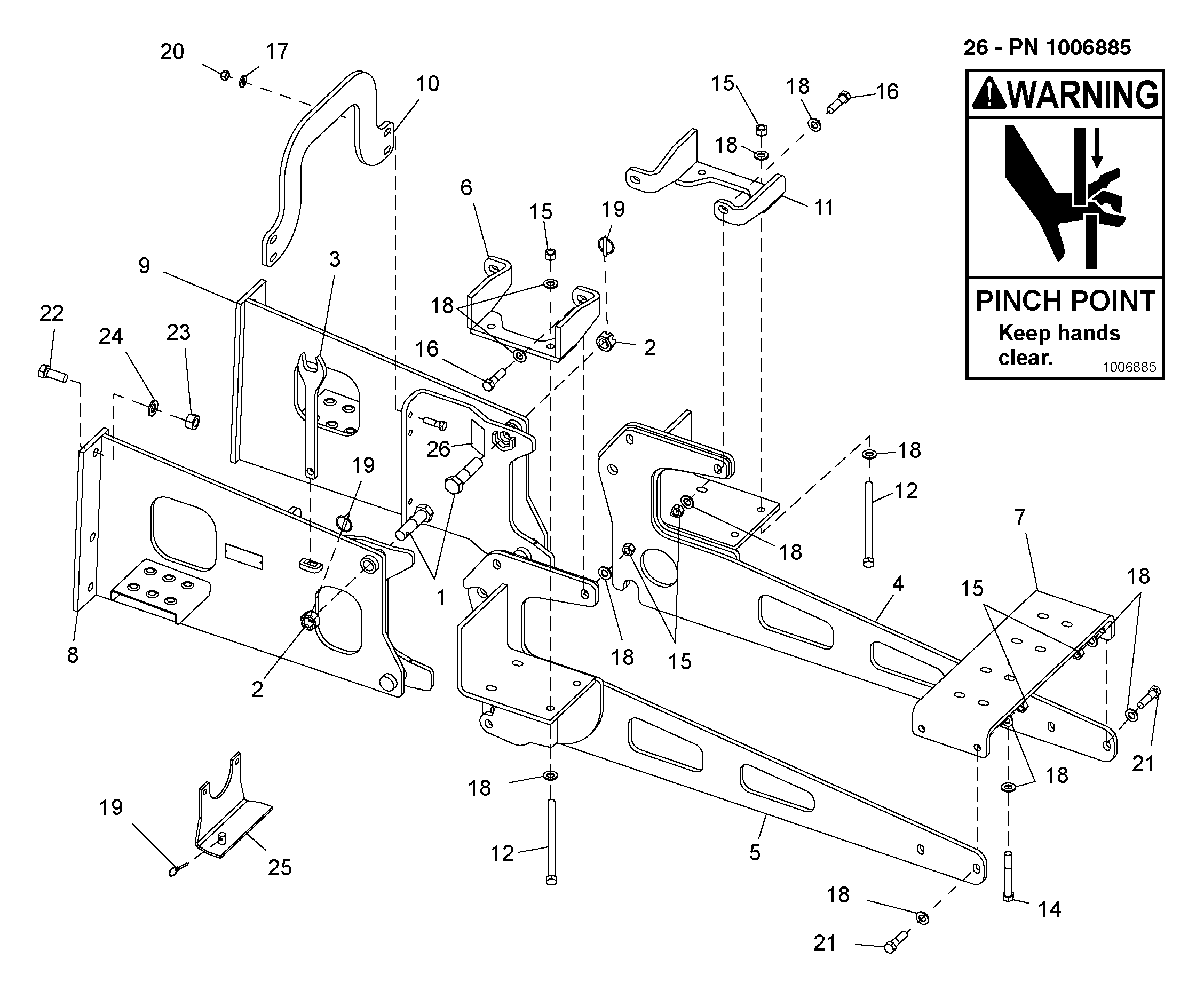

WOODS BH9000 BACKHOE Attachment: 4-Point Sub-Frame Mounting Kit 1012225 Assembly

    WOODS >woods-bh9000-backhoe-parts-attachment:-4-point-sub-frame-mounting-kit-1012225-assembly
    Ref: 1  Part #: 1006860  Price: $18.33

    Item: HHCS 1 UNC X 4 GR5 ZP DRL

    QTY:
    Ref: 2  Part #: 1006861  Price: $3.23

    Item: NUT, HEX SLOTTED 1-8 UNC

    QTY:
    Ref: 3  Part #: 1006883RP  Price: $53.63

    Item: WRENCH 1-1/2 OPEN END

    QTY:
    Ref: 4  Part #: 1012235  Price: $167.50

    Item: Tractor mount, left

    QTY:
    Ref: 5  Part #: 1012236  Price: $167.50

    Item: Tractor mount, right

    QTY:
    Ref: 6  Part #: 1012242RP  Price: $146.92

    Item: WA, BRACKET TOP RH

    QTY:
    Ref: 7  Part #: 1012243  Price: $54.56

    Item: Adapter bracket

    QTY:
    Ref: 8  Part #: 1012244  Price: $43.89

    Item: Right backhoe bracket

    QTY:
    Ref: 9  Part #: 1012245  Price: $43.89

    Item: Left backhoe bracket

    QTY:
    Ref: 10  Part #: 1012246  Price: $28.82

    Item: Crossbar

    QTY:
    Ref: 11  Part #: 1012255RP  Price: $122.51

    Item: WA, BRACKET TOP LH

    QTY:
    Ref: 12  Part #: 1012256  Price: $27.28

    Item: M16 x 2.0P x 220 Cap screw GR10.9

    QTY:
    Ref: 13  Part #: 24576  Price: $2.52

    Item: HHCS 1/2 NC X 1-3/4 GR5 ZP

    QTY:
    Ref: 14  Part #: W307436  Price: $9.09

    Item: HHCS M16-1.5P X 120MM

    QTY:
    Ref: 15  Part #: W307863  Price: $1.85

    Item: NUT HEX M16 X 2

    QTY:
    Ref: 16  Part #: 34766  Price: $4.88

    Item: HHCS M16-2.0P X 60MM CL8.8

    QTY:
    Ref: 17  Part #: 57816  Price: $1.44

    Item: WASHER, FLAT, 1/2 STD HRDN BLKOX

    QTY:
    Ref: 18  Part #: 57817  Price: $0.99

    Item: WASHER, 5/8 SAE FLAT HRDN

    QTY:
    Ref: 19  Part #: 62043  Price: $2.52

    Item: 1/4 X 1-3/4 KLIK PIN

    QTY:
    Ref: 20  Part #: 765  Price: $3.40

    Item: NUT, LOCK, 1/2 NC ZP

    QTY:
    Ref: 21  Part #: 37863  Price: $3.14

    Item: HHCS M16-2.0P X 50MM CL8.8

    QTY:
    Ref: 22  Part #: 13759  Price: $3.91

    Item: BOLT, HEX 3/4 NC X 2-1/4 GR5

    QTY:
    Ref: 23  Part #: 1450  Price: $2.13

    Item: NUT, HEX 3/4 NC

    QTY:
    Ref: 24  Part #: 57798  Price: $2.52

    Item: WASHER, 3/4 SAE FLAT HRDN

    QTY:
    Ref: 25  Part #: 54084RP  Price: $172.56

    Item: WA, BRKT .25 X 3.00 X 6.00

    QTY:
    Ref: 26  Part #: 1006885  Price: $0.99

    Item: DCL WRNG PINCH POINT

    QTY:
    Ref:   Part #: 1012225  Price: Call for price

    Item: 4-Point Sub-Frame Mounting Kit

    QTY:
