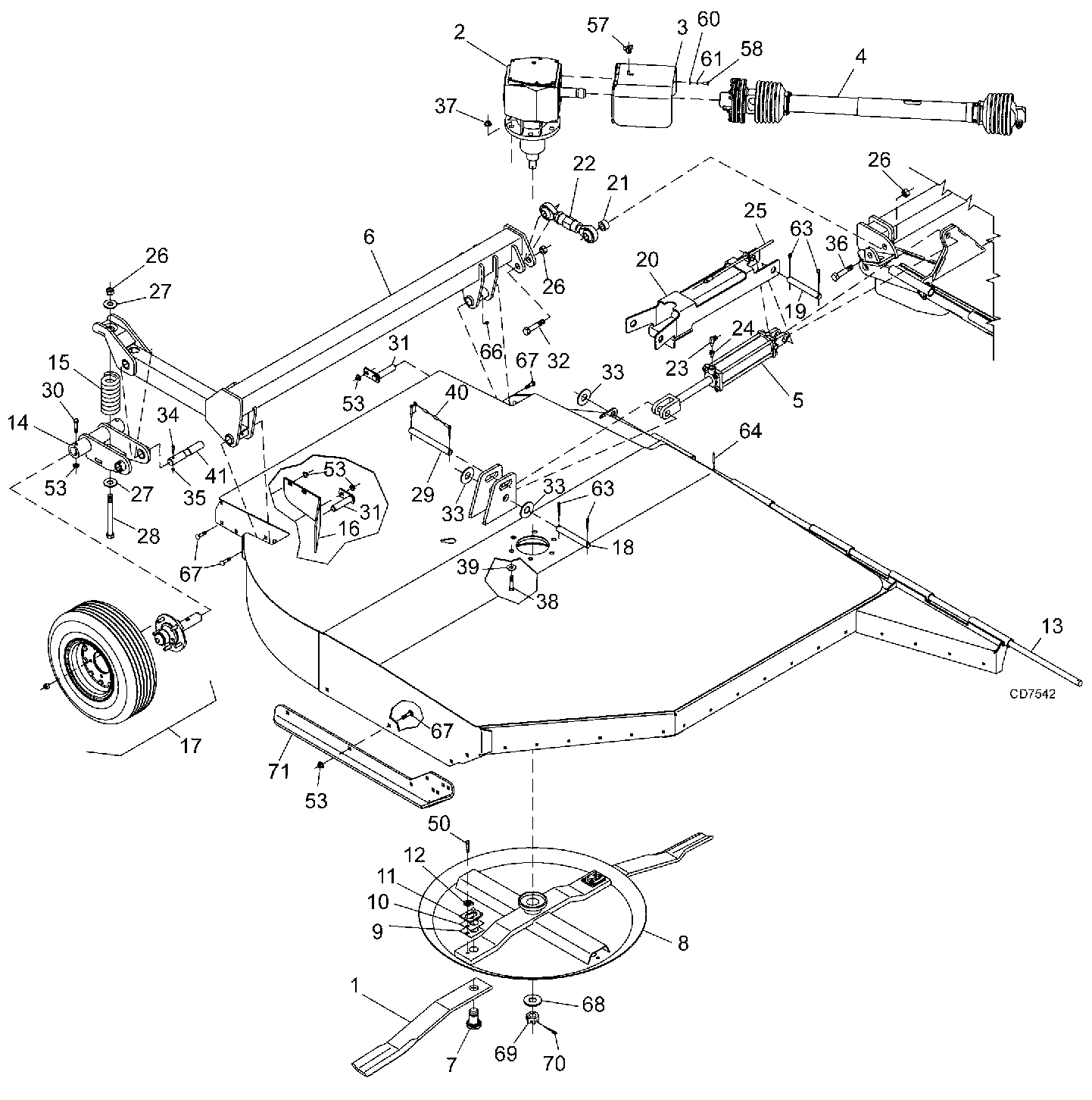

    WOODS BW2400XQ BATWING WING ASSEMBLY

    WOODS >woods-bw2400xq-batwing-rotary-cutter-parts-wing-assembly
    Ref: 1  Part #: 8825KT  Price: $212.56

    Item: BLADE KIT, 8825 STD

    QTY:
    Ref: 1  Part #: 8820KT  Price: $212.56

    Item: BLADE KIT, 8820 STD

    QTY:
    Ref: 2  Part #: -----  Price: Call for price

    Item: Gearbox (see page 56)

    QTY:
    Ref: 3  Part #: 1027120RP  Price: $184.68

    Item: WA, WING GRBX SHIELD BW240

    QTY:
    Ref: 4  Part #: 1027298  Price: $1,624.35

    Item: DRV ASY CMPL-2500 59.5 X 85.2

    QTY:
    Ref: 5  Part #: 597276  Price: $236.01

    Item: CYLINDER, 3.5 X 1.25 X 16.0 NPT8

    QTY:
    Ref: 6  Part #: 1027081RP  Price: $1,071.10

    Item: WA, LEFT YOKE BW240

    QTY:
    Ref: 6  Part #: 1027080RP  Price: $1,110.48

    Item: WA, RIGHT YOKE BW240

    QTY:
    Ref: 7  Part #: 1008190  Price: $44.83

    Item: PIN, SPECIAL BLADE PIN KIT 2.04

    QTY:
    Ref: 8  Part #: 1027230RP  Price: $1,098.70

    Item: WA CROSSBAR, BW2400

    QTY:
    Ref: 9  Part #: 10520RP  Price: $6.98

    Item: 18GA 1-1/2 BLD PIN SHIM

    QTY:
    Ref: 10  Part #: 13946RP  Price: $3.74

    Item: 20 GA 1-1/2 BLD PIN SHIM

    QTY:
    Ref: 11  Part #: 32603  Price: $11.23

    Item: PLATE, KEYHOLE SPECIAL

    QTY:
    Ref: 12  Part #: 32604RP  Price: $4.39

    Item: BLADE PIN LOCK CLIP SPEC

    QTY:
    Ref: 13  Part #: 1027123RP  Price: $177.32

    Item: HINGE PIN 1.0 X 98.0

    QTY:
    Ref: 14  Part #: 1027160RP  Price: $403.54

    Item: WA, LOWER SPRNG ARM, WNG DUAL

    QTY:
    Ref: 15  Part #: 1032100RP  Price: $41.43

    Item: SPRING, COMPRESSION 3.25X.56X7.25X1113

    QTY:
    Ref: 16  Part #: 1027246RP  Price: $65.25

    Item: BAFFLE, DEFLECTOR PLATE RT WING

    QTY:
    Ref: 16  Part #: 1027247RP  Price: $65.25

    Item: BAFFLE, DEFLECTOR PLATE LT WING

    QTY:
    Ref: 17  Part #: -----  Price: Call for price

    Item: Tire & hub (see page 65)

    QTY:
    Ref: 18  Part #: 8346  Price: $20.35

    Item: PIN, HDLS 1.00 X 4.58

    QTY:
    Ref: 19  Part #: 8347  Price: $21.90

    Item: PIN, HDLS 1.00 X 5.08

    QTY:
    Ref: 20  Part #: 1027127RP  Price: $248.03

    Item: WA, CYLINDER LOCK-UP

    QTY:
    Ref: 21  Part #: 65130  Price: $4.40

    Item: PIPE, 1 SCH 40X 1.00

    QTY:
    Ref: 22  Part #: 1039950  Price: $138.32

    Item: ADJUSTABLE LINK, TRUNNION

    QTY:
    Ref: 23  Part #: 10290  Price: $7.20

    Item: FITTING, ELBOW 1/4 X X1/4 W/1/16 RESTRC

    QTY:
    Ref: 24  Part #: W11893  Price: $2.52

    Item: ADAPTER, 1/4 NPTF 1/2 NPTM

    QTY:
    Ref: 25  Part #: 52201  Price: $109.82

    Item: HOSE, 1/4 X 1/4 X 264

    QTY:
    Ref: 26  Part #: 34279  Price: $8.52

    Item: NUT, LOCK 1 NC

    QTY:
    Ref: 27  Part #: 11920  Price: $3.40

    Item: WASHER, SPECIAL 1 X 1-7/8 X 1/4

    QTY:
    Ref: 28  Part #: 15087  Price: $20.83

    Item: BOLT, HEX 1 NC X 9.0 GR5

    QTY:
    Ref: 29  Part #: 52329  Price: $27.63

    Item: PIN, HDLS 1.00 X 8.41

    QTY:
    Ref: 30  Part #: 3489  Price: $2.74

    Item: BOLT, HEX 1/2 NC X 3 GR5 ZP

    QTY:
    Ref: 31  Part #: 1017055  Price: $44.71

    Item: PIN, FLAG 1.25 X 6.5

    QTY:
    Ref: 32  Part #: 21594  Price: $14.45

    Item: BOLT, HEX 1 NC X 4 GR8 ZP

    QTY:
    Ref: 33  Part #: 1863  Price: $2.13

    Item: WASHER, FLAT, 1 SAE ZP

    QTY:
    Ref: 34  Part #: 10509  Price: $1.54

    Item: BOLT, HEX 5/16 NC X 2-1/2 GR5

    QTY:
    Ref: 35  Part #: 14139  Price: $3.13

    Item: NUT, LOCK FLANGE 5/16 NC

    QTY:
    Ref: 36  Part #: 34278  Price: $12.43

    Item: BOLT, HEX 1 NC X 5.0 GR5 ZP

    QTY:
    Ref: 37  Part #: 2371  Price: $3.23

    Item: NUT, LOCK, 3/4 NC ZP

    QTY:
    Ref: 38  Part #: 30068  Price: $5.40

    Item: BOLT, HEX 3/4 NC X 2-1/2 GR5 ZP

    QTY:
    Ref: 39  Part #: 57798  Price: $2.52

    Item: WASHER, 3/4 SAE FLAT HRDN

    QTY:
    Ref: 40  Part #: 52204  Price: $24.41

    Item: PIN, LYNCH, CHAIN, AND COTTER ASSEMBLY

    QTY:
    Ref: 41  Part #: 52087  Price: $43.82

    Item: PIN, HDLS PIVOT 1.25 X 7.56

    QTY:
    Ref: 50  Part #: 6100  Price: $2.52

    Item: BOLT, HEX 1/2 NC X 1-1/4 GR5 ZP

    QTY:
    Ref: 53  Part #: 11900  Price: $1.90

    Item: NUT, LOCK FLANGE 1/2 NC

    QTY:
    Ref: 57  Part #: 66840  Price: $4.25

    Item: KNOB, 3 PRONG 3/8NC

    QTY:
    Ref: 58  Part #: 24801  Price: $1.72

    Item: BOLT, HEX M8-1.25P X 20MM

    QTY:
    Ref: 60  Part #: 35155  Price: $2.13

    Item: WASHER, FLAT 5/16

    QTY:
    Ref: 61  Part #: 2472  Price: $1.19

    Item: WASHER, LOCK 5/16

    QTY:
    Ref: 63  Part #: 1285  Price: $1.44

    Item: PIN, COTTER 1/4 X 1-1/2

    QTY:
    Ref: 64  Part #: 66016  Price: $3.40

    Item: PIN, SPRING 1/4 X 1-1/2

    QTY:
    Ref: 66  Part #: 12296  Price: $1.54

    Item: FITTING, GREASE 1/4-28 X 15/32 STRT

    QTY:
    Ref: 67  Part #: 29893  Price: $2.52

    Item: BOLT, CARRIAGE 1/2 NC X 1-1/2 HT

    QTY:
    Ref: 68  Part #: 1024670  Price: $26.28

    Item: WASHER, SPECIAL GRBX 1.22 X 2.205 X .236

    QTY:
    Ref: 69  Part #: 1019606  Price: $34.36

    Item: NUT, HEX SLOTTED FLANGE M36

    QTY:
    Ref: 70  Part #: 6185  Price: $1.44

    Item: PIN, COTTER 1/4 X 2-1/4

    QTY:
    Ref: 71  Part #: 1027099RP  Price: $282.54

    Item: BW240, SKID LT

    QTY:
    Ref: 71  Part #: 1027098RP  Price: $282.54

    Item: BW240, SKID RT
