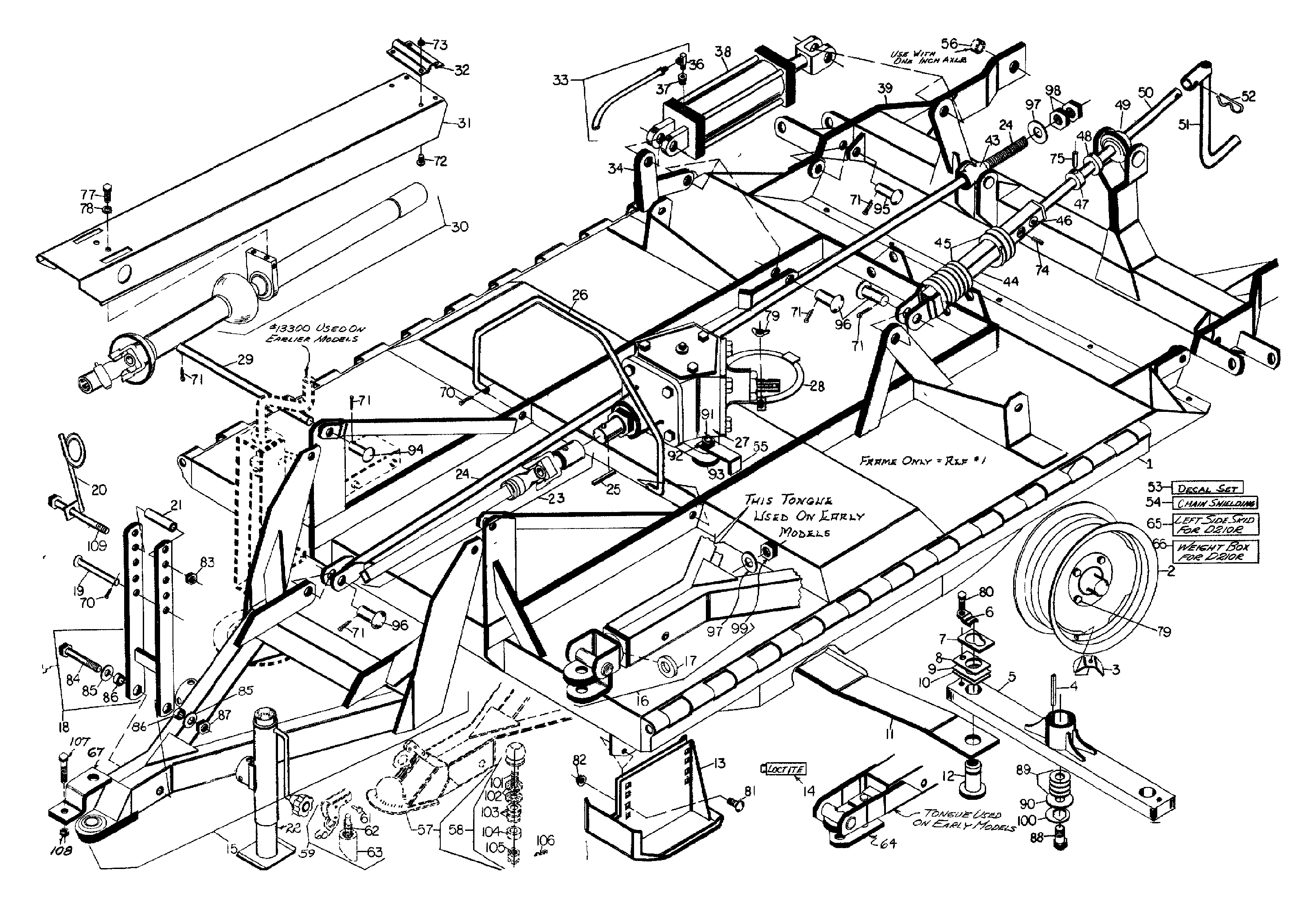

WOODS D315 1 BATWING Center Section Main Assembly

    WOODS >woods-d315-1-batwing-rotary-cutter-parts-center-section-main-assembly
    Ref: 1  Part #: 17065  Price: Call for price

    Item: Frame only D315

    QTY:
    Ref: 1  Part #: 23396  Price: Call for price

    Item: Frame only D210R

    QTY:
    Ref: 2  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 2  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 3  Part #: 11496  Price: $22.99

    Item: Valve stem guard

    QTY:
    Ref: 4  Part #: 4614  Price: $3.54

    Item: 1/4 X 3/8 X 3-1/4 KEY

    QTY:
    Ref: 5  Part #: W12827  Price: $487.20

    Item: R105 ETC CROSSBAR ASY

    QTY:
    Ref: 6  Part #: 32604RP  Price: $4.39

    Item: BLADE PIN LOCK CLIP SPEC

    QTY:
    Ref: 7  Part #: 32603  Price: $11.23

    Item: PLATE, KEYHOLE SPECIAL

    QTY:
    Ref: 8  Part #: 5523RP  Price: $4.61

    Item: SPACER

    QTY:
    Ref: 9  Part #: 10520RP  Price: $6.98

    Item: 18GA 1-1/2 BLD PIN SHIM

    QTY:
    Ref: 10  Part #: 13946RP  Price: $3.74

    Item: 20 GA 1-1/2 BLD PIN SHIM

    QTY:
    Ref: 11  Part #: 4742  Price: Call for price

    Item: Counter clockwise standard suction blade (See note 6)

    QTY:
    Ref: 11  Part #: 4742KT  Price: $169.47

    Item: KIT, BLADE, 4742 STD

    QTY:
    Ref: 11  Part #: 17190  Price: Call for price

    Item: Double edge reversible blade (See note 8)

    QTY:
    Ref: 11  Part #: 23309  Price: Call for price

    Item: Double edge hook blade (See note 9)

    QTY:
    Ref: 12  Part #: 32606  Price: $38.87

    Item: SPECIAL BLADE PIN KIT2.4

    QTY:
    Ref: 13  Part #: 17106  Price: $146.85

    Item: INNER SKID ASSEMBLY

    QTY:
    Ref: 13  Part #: 23342  Price: Call for price

    Item: Special deep hiway skid with hardware

    QTY:
    Ref: 14  Part #: 13944  Price: Call for price

    Item: 2 cc Loctite tube

    QTY:
    Ref: 14  Part #: 10899  Price: Call for price

    Item: 10 cc Loctite tube

    QTY:
    Ref: 14  Part #: 13943  Price: Call for price

    Item: 6 oz Locquic can

    QTY:
    Ref: 15  Part #: 9774  Price: $826.98

    Item: TONGUE ASSEMBLY 44.03L

    QTY:
    Ref: 15  Part #: 9231  Price: Call for price

    Item: Tongue and clevis asy (2 Jt drive)

    QTY:
    Ref: 15  Part #: 18272  Price: Call for price

    Item: Tongue and ball hitch asy (3 Jt drive only)

    QTY:
    Ref: 16  Part #: 13999  Price: Call for price

    Item: Tongue clevis & yoke asy With hdwr (3 Jt dr only)

    QTY:
    Ref: 17  Part #: 13985  Price: Call for price

    Item: 1-3/8 x 2 x 5/8 HT bushing (3 Jt drive only)

    QTY:
    Ref: 18  Part #: 11940  Price: $192.46

    Item: 315 ETC H FRM W HDWR

    QTY:
    Ref: 19  Part #: W404  Price: $18.64

    Item: PIN, CLV 1/2 X 5-3/4 HT

    QTY:
    Ref: 20  Part #: 3443  Price: $49.16

    Item: HYD HOSE HOLDER

    QTY:
    Ref: 21  Part #: 7035  Price: $17.39

    Item: PIPE, 1/2 SCHEDULE 40 X 3.56

    QTY:
    Ref: 22  Part #: 23970  Price: Call for price

    Item: Parking jack (See note 12)

    QTY:
    Ref: 23  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 24  Part #: 17083  Price: Call for price

    Item: Attitude rod

    QTY:
    Ref: 25  Part #: 7142  Price: $5.90

    Item: 1/4 X 1/4 X 2 KEY

    QTY:
    Ref: 26  Part #: 7838  Price: $144.68

    Item: B315ETC REAR SHLD SUPPRT

    QTY:
    Ref: 27  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 28  Part #: W004018  Price: $3,364.90

    Item: DEL- 3/4YD SWING CYLINDER

    QTY:
    Ref: 28  Part #: 3444RP  Price: $22.22

    Item: ACCESS HOLE COVER

    QTY:
    Ref: 29  Part #: 13140  Price: Call for price

    Item: 3/4 x 23-3/4 Long pin (2 Jt models only)

    QTY:
    Ref: 30  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 30  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 31  Part #: 7837  Price: $290.66

    Item: 72-3ETC RR DRV SHFT SHLD

    QTY:
    Ref: 32  Part #: 6747  Price: $24.26

    Item: SHLD STRAP

    QTY:
    Ref: 33  Part #: 9381  Price: Call for price

    Item: Hose with fittings (See note 19)

    QTY:
    Ref: 34  Part #: 10297  Price: Call for price

    Item: Hydraulic pivot link

    QTY:
    Ref: 36  Part #: 10290  Price: $7.20

    Item: FITTING, ELBOW 1/4 X X1/4 W/1/16 RESTRC

    QTY:
    Ref: 37  Part #: W11893  Price: $2.52

    Item: ADAPTER, 1/4 NPTF 1/2 NPTM

    QTY:
    Ref: 38  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 39  Part #: 9374  Price: $1,248.10

    Item: Standard wheel yoke (See note 21)

    QTY:
    Ref: 39  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 42  Part #: 195  Price: $1.90

    Item: STRT 1/8P THRD G FITTING

    QTY:
    Ref: 43  Part #: 10417RP  Price: $36.84

    Item: 214ETC, HT ADJ PIVOT BLK

    QTY:
    Ref: 44  Part #: 7874  Price: $441.30

    Item: Clevis tube

    QTY:
    Ref: 45  Part #: 7948  Price: $114.73

    Item: SPR/CMP3.25 .50 34.0

    QTY:
    Ref: 46  Part #: 1972  Price: $2.93

    Item: FITTING, GREASE ZERK 1/4-28

    QTY:
    Ref: 47  Part #: 7969RP  Price: $43.91

    Item: SLV 1-1/64X 1-3/4 X 3/4

    QTY:
    Ref: 48  Part #: 1893  Price: $42.61

    Item: BEARING THRUST TIMKEN T101

    QTY:
    Ref: 49  Part #: 7180  Price: $27.28

    Item: Crank pivot casting

    QTY:
    Ref: 50  Part #: 7943  Price: $101.75

    Item: Height adjustment rod

    QTY:
    Ref: 51  Part #: 7878  Price: $153.60

    Item: Crank

    QTY:
    Ref: 52  Part #: 3282  Price: $3.74

    Item: 3/8 X 1-1/2 CLINCH PIN

    QTY:
    Ref: 53  Part #: 18966  Price: $477.53

    Item: DCL SET CMPL BATWING

    QTY:
    Ref: 54  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 55  Part #: 17209  Price: Call for price

    Item: Gear box hose holder

    QTY:
    Ref: 56  Part #: 16304  Price: Call for price

    Item: 1 x 1-1/4 x 1-15/16 Sleeve

    QTY:
    Ref: 57  Part #: 10447  Price: Call for price

    Item: 2-5/16 Ball hitch (See note 25)

    QTY:
    Ref: 58  Part #: 10446  Price: Call for price

    Item: 2-5/16 Hitch ball (See note 26)

    QTY:
    Ref: 59  Part #: 23016  Price: Call for price

    Item: Lock lever and plunger (See note 27)

    QTY:
    Ref: 60  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 61  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 62  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 63  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 64  Part #: 18282  Price: $504.00

    Item: Tongue flopper

    QTY:
    Ref: 65  Part #: 11350  Price: Call for price

    Item: Side skid with hardware (D210R)

    QTY:
    Ref: 66  Part #: 9183  Price: Call for price

    Item: D210R Counterweight box empty

    QTY:
    Ref: 67  Part #: 23648  Price: $39.78

    Item: TRACTOR DRAWBAR TNG BRKT

    QTY:
    Ref: 70  Part #: 1256  Price: $1.19

    Item: 3/16 X 1, COTTER PIN

    QTY:
    Ref: 71  Part #: 1285  Price: $1.44

    Item: PIN, COTTER 1/4 X 1-1/2

    QTY:
    Ref: 72  Part #: 1282  Price: $0.99

    Item: SCREW, ROUND HEAD SLOTTED 1/4NC X X1/2

    QTY:
    Ref: 73  Part #: 6128  Price: Call for price

    Item: 1/4 NC Hex lock nut (See note 35)

    QTY:
    Ref: 74  Part #: 7970  Price: Call for price

    Item: 5/16 x 1-1/4 Spring pin (See note 36)

    QTY:
    Ref: 75  Part #: 11880  Price: $3.54

    Item: 5/16X 1-3/4 SPIROL PIN

    QTY:
    Ref: 77  Part #: 1263  Price: Call for price

    Item: 3/8 NC x 1 Hex head cap screw (See note 38)

    QTY:
    Ref: 78  Part #: 838  Price: $1.44

    Item: WASHER, LOCK, 3/8 ZP

    QTY:
    Ref: 79  Part #: 1287  Price: $1.72

    Item: NUT WING 3/8 NC

    QTY:
    Ref: 80  Part #: 6100  Price: $2.52

    Item: BOLT, HEX 1/2 NC X 1-1/4 GR5 ZP

    QTY:
    Ref: 81  Part #: 2615  Price: $4.56

    Item: BOLT, CARRIAGE 1/2 NC X 1-1/4 GR5 ZP

    QTY:
    Ref: 82  Part #: 11900  Price: $1.90

    Item: NUT, LOCK FLANGE 1/2 NC

    QTY:
    Ref: 83  Part #: 765  Price: $3.40

    Item: NUT, LOCK, 1/2 NC ZP

    QTY:
    Ref: 84  Part #: 12005  Price: $6.08

    Item: HHCS 5/8 NC X 6 HT

    QTY:
    Ref: 85  Part #: 10635  Price: $2.74

    Item: WASHER, CUP 5/8 X 1-3/4 X 14GA

    QTY:
    Ref: 86  Part #: 1791  Price: $2.52

    Item: SLEEVE, .625 X 1.00 X .563 HT

    QTY:
    Ref: 87  Part #: 12006  Price: $1.90

    Item: NUT STOP 5/8 NC ELASTIC

    QTY:
    Ref: 88  Part #: 4616  Price: $9.63

    Item: HHCS 3/4 NC X 1-1/2 GR5 ZP

    QTY:
    Ref: 89  Part #: 4810  Price: $18.84

    Item: SET OF SHIMS

    QTY:
    Ref: 90  Part #: W7828  Price: $11.72

    Item: WASHER, 3/4 X 2-1/2 X 1/4 HT FLT

    QTY:
    Ref: 91  Part #: 10921  Price: $10.55

    Item: BOLT CRG 3/4 NC X 5 HT

    QTY:
    Ref: 92  Part #: 2371  Price: $3.23

    Item: NUT, LOCK, 3/4 NC ZP

    QTY:
    Ref: 93  Part #: 11654  Price: $75.13

    Item: 3/4 x 1-7/8 x 1/4 Flat washer

    QTY:
    Ref: 94  Part #: W8321  Price: $36.43

    Item: PIN, CLEVIS .75 X 1.84

    QTY:
    Ref: 95  Part #: 8322  Price: $8.81

    Item: PIN HDLS .75 X 2.58

    QTY:
    Ref: 96  Part #: W8341  Price: $41.46

    Item: PIN CLV 1 X 2-1/2 HT

    QTY:
    Ref: 97  Part #: 1863  Price: $2.13

    Item: WASHER, FLAT, 1 SAE ZP

    QTY:
    Ref: 98  Part #: 3132  Price: $7.38

    Item: NUT, HEX, 1 NC ZP

    QTY:
    Ref: 99  Part #: 3626  Price: $3.31

    Item: NUT HEX 1-14 UNS

    QTY:
    Ref: 100  Part #: 5794  Price: $29.40

    Item: CRSBAR SAFETY LOCK KIT

    QTY:
    Ref: 101  Part #: 10448  Price: Call for price

    Item: 3/4 NC x 5-3/4 Carriage bolt

    QTY:
    Ref: 102  Part #: 7210  Price: $11.79

    Item: WSHR 3/4ID 2-3/8OD .072THK CUP

    QTY:
    Ref: 103  Part #: 1257  Price: $2.13

    Item: WSHR 3/4 FLAT ZP

    QTY:
    Ref: 104  Part #: 5560  Price: $10.05

    Item: SLV 3/4 X 1-1/8 X 31/32T HT

    QTY:
    Ref: 105  Part #: 12067  Price: Call for price

    Item: 3/4 NC slotted hex nut

    QTY:
    Ref: 106  Part #: 1266  Price: $1.44

    Item: PIN, COTTER 3/16 X 1-1/2

    QTY:
    Ref: 107  Part #: 11854  Price: $5.06

    Item: BOLT, HEX 5/8 NC X 2-1/2

    QTY:
    Ref: 108  Part #: 6239  Price: $2.31

    Item: NUT, LOCK, 5/8 NC

    QTY:
    Ref: 109  Part #: 1738  Price: Call for price

    Item: 1/2 NC x 5-1/2 Hex Head cap screw

    QTY:
