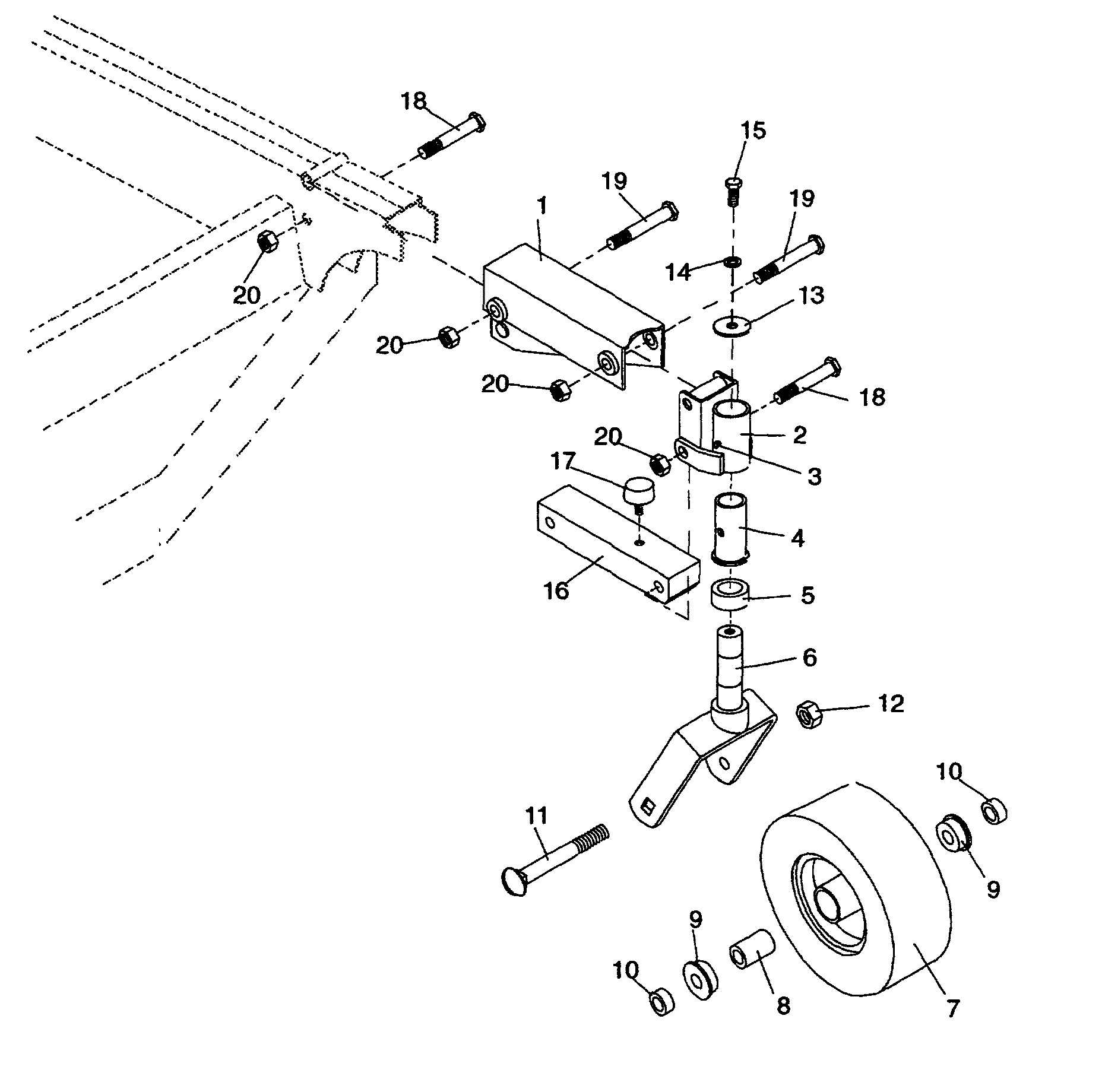

WOODS >woods-do4814-sn-342269-and-up-mow-n-machine-parts-wheel-lift-assembly

Ref	Part #	Item	Price	Qty. Req.
1	W71435	LIFT CHANNEL-UPR RT /MR	$232.79
1	W71436	LIFT CHANNEL-UPR LT /MR	$235.05
2	W71438	FORK MOUNT-RIGHT	$140.45
2	W71439	FORK MOUNT-LEFT /MR	$149.06
3	W71530	FTG,GR 1/4-28 SHORT	$2.64
4	W70035	BUSHING FLNGD 1 SINTRD /MR	$17.80
5	33647	PIPE 1 SCH 40 X 0.75	$3.13
6	71795RP	FORK ASY-LIFT DECK /MR	$251.90
6	72072	O-RING.812 IDX.062 568-019/MR	$2.05
7	W71520	WHL-TIR SMOOTH9X3.5X4/MR	$133.18
7	73725	9 WHL ASY KIT	$141.89
8	70044	SPACER - .875 X .657 X 2.25	$39.75
9	W70043	BRG-WHEEL 5/8	$21.12
10	70037	SPACER-AXLE /MR	$6.12
11	990	HHCS 5/8 NC X 5-1/2	$6.58
12	6239	NUT, LOCK, 5/8 NC	$2.31
13	71629	WSHR 13/32ID 1-3/8OD 10GATHICK	$3.18
14	838	WASHER, LOCK, 3/8 ZP	$1.44
15	64518	HHCS 3/8 NF X 1 GR5	$1.72
16	W71529	STABILIZER-DECK LIFT /MR	$87.13
17	W71444	BUMPER, RUBBER 1.25 DIA X .75	$20.51
18	1637	HHCS, 1/2 NC X 3-1/2 GR5 ZP	$3.31
19	W12024	HHCS 1/2 NC X 3-3/4 GR5	$3.54
20	765	NUT, LOCK, 1/2 NC ZP	$3.40

Ref: 1 Part #: W71435 Price: $232.79

Item: LIFT CHANNEL-UPR RT /MR

QTY:

Ref: 1 Part #: W71436 Price: $235.05

Item: LIFT CHANNEL-UPR LT /MR

QTY:

Ref: 2 Part #: W71438 Price: $140.45

Item: FORK MOUNT-RIGHT

QTY:

Ref: 2 Part #: W71439 Price: $149.06

Item: FORK MOUNT-LEFT /MR

QTY:

Ref: 3 Part #: W71530 Price: $2.64

Item: FTG,GR 1/4-28 SHORT

QTY:

Ref: 4 Part #: W70035 Price: $17.80

Item: BUSHING FLNGD 1 SINTRD /MR

QTY:

Ref: 5 Part #: 33647 Price: $3.13

Item: PIPE 1 SCH 40 X 0.75

QTY:

Ref: 6 Part #: 71795RP Price: $251.90

Item: FORK ASY-LIFT DECK /MR

QTY:

Ref: 6 Part #: 72072 Price: $2.05

Item: O-RING.812 IDX.062 568-019/MR

QTY:

Ref: 7 Part #: W71520 Price: $133.18

Item: WHL-TIR SMOOTH9X3.5X4/MR

QTY:

Ref: 7 Part #: 73725 Price: $141.89

Item: 9 WHL ASY KIT

QTY:

Ref: 8 Part #: 70044 Price: $39.75

Item: SPACER - .875 X .657 X 2.25

QTY:

Ref: 9 Part #: W70043 Price: $21.12

Item: BRG-WHEEL 5/8

QTY:

Ref: 10 Part #: 70037 Price: $6.12

Item: SPACER-AXLE /MR

QTY:

Ref: 11 Part #: 990 Price: $6.58

Item: HHCS 5/8 NC X 5-1/2

QTY:

Ref: 12 Part #: 6239 Price: $2.31

Item: NUT, LOCK, 5/8 NC

QTY:

Ref: 13 Part #: 71629 Price: $3.18

Item: WSHR 13/32ID 1-3/8OD 10GATHICK

QTY:

Ref: 14 Part #: 838 Price: $1.44

Item: WASHER, LOCK, 3/8 ZP

QTY:

Ref: 15 Part #: 64518 Price: $1.72

Item: HHCS 3/8 NF X 1 GR5

QTY:

Ref: 16 Part #: W71529 Price: $87.13

Item: STABILIZER-DECK LIFT /MR

QTY:

Ref: 17 Part #: W71444 Price: $20.51

Item: BUMPER, RUBBER 1.25 DIA X .75

QTY:

Ref: 18 Part #: 1637 Price: $3.31

Item: HHCS, 1/2 NC X 3-1/2 GR5 ZP

QTY:

Ref: 19 Part #: W12024 Price: $3.54

Item: HHCS 1/2 NC X 3-3/4 GR5

QTY:

Ref: 20 Part #: 765 Price: $3.40

Item: NUT, LOCK, 1/2 NC ZP

QTY:
