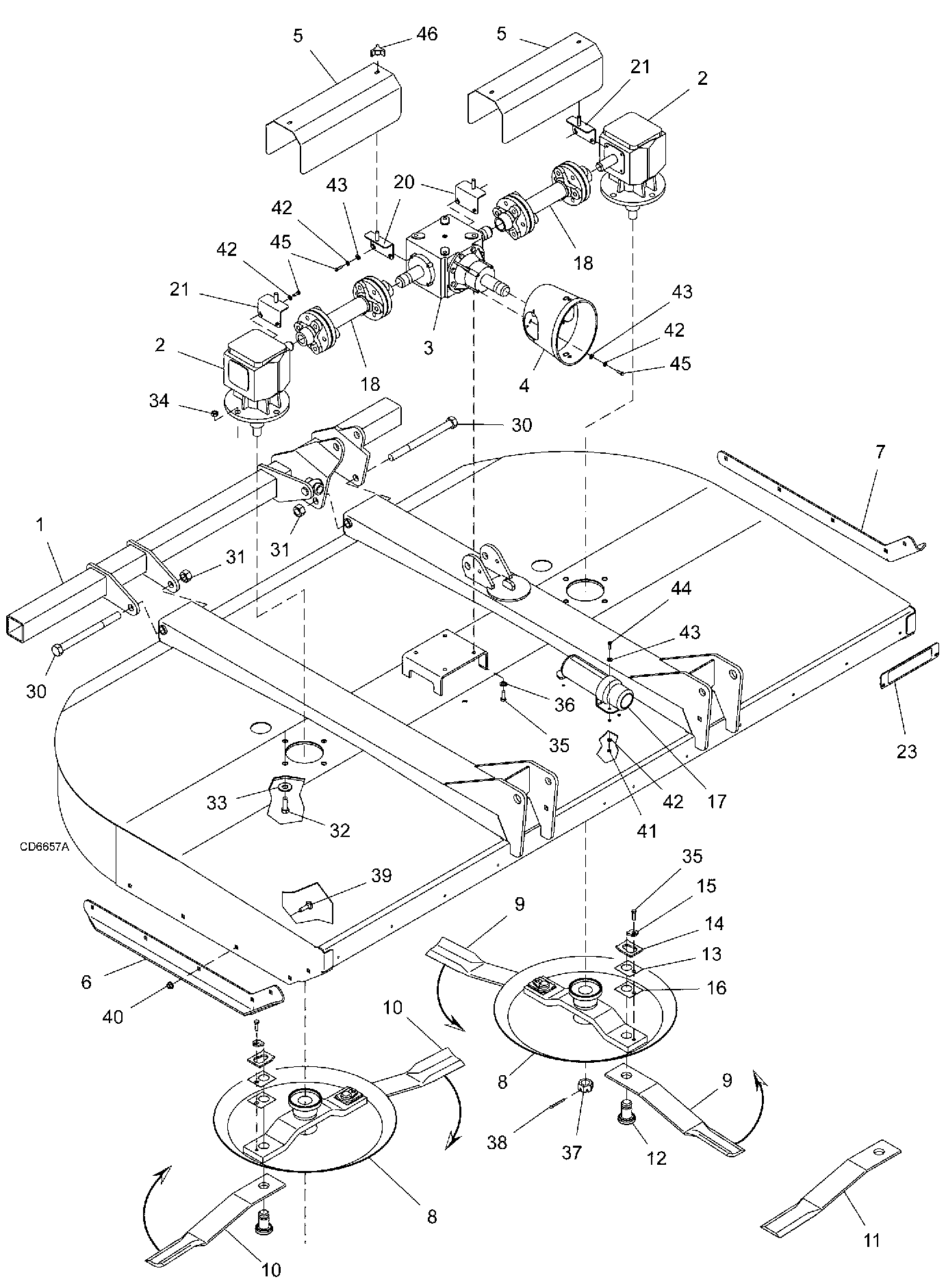

WOODS DS96 ROTARY CUTTER MAIN FRAME ASSEMBLY (DS96)

    WOODS >woods-ds96-rotary-cutter-multi-spindle-cutter-parts-main-frame-assembly-(ds96)
    Ref: 2  Part #: 617158RP  Price: $628.74

    Item: GEARBOX, REPAIR CCW 1:1.5 W/BAG

    QTY:
    Ref: 3  Part #: 1008192  Price: $989.80

    Item: GEARBOX REPAIR 1:1.5 SPLITTER

    QTY:
    Ref: 4  Part #: 1002048  Price: $68.56

    Item: SHIELD, CLUTCH 100, 143 MM BC

    QTY:
    Ref: 5  Part #: 1013377RP  Price: $97.89

    Item: SHIELD, DS96

    QTY:
    Ref: 6  Part #: 1013378RP  Price: $150.20

    Item: DS96 RT SKID

    QTY:
    Ref: 7  Part #: 1013379RP  Price: $150.20

    Item: DS96 LT SKID

    QTY:
    Ref: 8  Part #: 1013370RP  Price: $546.86

    Item: WA ,CROSSBAR DS96

    QTY:
    Ref: 9  Part #: 11769KT  Price: $173.24

    Item: KIT, BLADE, 11769 STD

    QTY:
    Ref: 10  Part #: 11768KT  Price: $173.24

    Item: KIT, BLADE, 11768 STD

    QTY:
    Ref: 11  Part #: 11886KT  Price: $183.56

    Item: KIT, BLADE, 11886 STD

    QTY:
    Ref: 12  Part #: 1009098  Price: $44.35

    Item: PIN, BLADE PIN KIT

    QTY:
    Ref: 13  Part #: 13946RP  Price: $3.74

    Item: 20 GA 1-1/2 BLD PIN SHIM

    QTY:
    Ref: 14  Part #: 32603  Price: $11.23

    Item: PLATE, KEYHOLE SPECIAL

    QTY:
    Ref: 15  Part #: 32604RP  Price: $4.39

    Item: BLADE PIN LOCK CLIP SPEC

    QTY:
    Ref: 16  Part #: 10520RP  Price: $6.98

    Item: 18GA 1-1/2 BLD PIN SHIM

    QTY:
    Ref: 17  Part #: 1003828  Price: $28.92

    Item: MANUAL TUBE, 3.50 X 3.23 X 11.86

    QTY:
    Ref: 18  Part #: 1019437  Price: $388.48

    Item: DRV ASY, DOUBLE FLEX 11.44

    QTY:
    Ref: 20  Part #: 1009203RP  Price: $51.20

    Item: SHIELD HOLD DOWN, INSIDE

    QTY:
    Ref: 21  Part #: 1009204RP  Price: $62.51

    Item: SHIELD HOLD DOWN, OUTSIDE

    QTY:
    Ref: 22  Part #: 1008194  Price: $151.64

    Item: DCL SET CMPL DS96/DS120

    QTY:
    Ref: 23  Part #: 1008195  Price: $139.73

    Item: DCL SET SFTY DS96/DS120

    QTY:
    Ref: 24  Part #: 1036796  Price: $1,082.05

    Item: DCL SET SFTY SPANISH DS96/120

    QTY:
    Ref: 30  Part #: 39141  Price: $75.74

    Item: HHCS, 1 NC X 12.0 GR5

    QTY:
    Ref: 31  Part #: 34279  Price: $8.52

    Item: NUT, LOCK 1 NC

    QTY:
    Ref: 32  Part #: 30068  Price: $5.40

    Item: BOLT, HEX 3/4 NC X 2-1/2 GR5 ZP

    QTY:
    Ref: 33  Part #: 57798  Price: $2.52

    Item: WASHER, 3/4 SAE FLAT HRDN

    QTY:
    Ref: 34  Part #: W302207  Price: $2.93

    Item: NUT, LOCK, FLANGE, 3/4 NC

    QTY:
    Ref: 35  Part #: 6100  Price: $2.52

    Item: BOLT, HEX 1/2 NC X 1-1/4 GR5 ZP

    QTY:
    Ref: 36  Part #: 855  Price: $1.44

    Item: WASHER, LOCK, 1/2 ZP

    QTY:
    Ref: 37  Part #: W39323  Price: $24.61

    Item: NUT, CASTLE GRBX M30 X 2.0P

    QTY:
    Ref: 38  Part #: --------  Price: Call for price

    Item: B6 x 60 Cotter pin (Standard hardware, obtain locally)

    QTY:
    Ref: 39  Part #: 11900  Price: $1.90

    Item: NUT, LOCK FLANGE 1/2 NC

    QTY:
    Ref: 40  Part #: 14406  Price: $1.54

    Item: BOLT, CARRIAGE 1/2 NC X 1

    QTY:
    Ref: 41  Part #: 4529  Price: $2.13

    Item: NUT, HEX 5/16 NC

    QTY:
    Ref: 42  Part #: 2472  Price: $1.19

    Item: WASHER, LOCK 5/16

    QTY:
    Ref: 43  Part #: 35155  Price: $2.13

    Item: WASHER, FLAT 5/16

    QTY:
    Ref: 44  Part #: 6250  Price: $1.44

    Item: HHCS, 5/16 NC X 1-1/4 GR5 ZP

    QTY:
    Ref: 45  Part #: 24801  Price: $1.72

    Item: BOLT, HEX M8-1.25P X 20MM

    QTY:
    Ref: 46  Part #: 66840  Price: $4.25

    Item: KNOB, 3 PRONG 3/8NC

    QTY:
