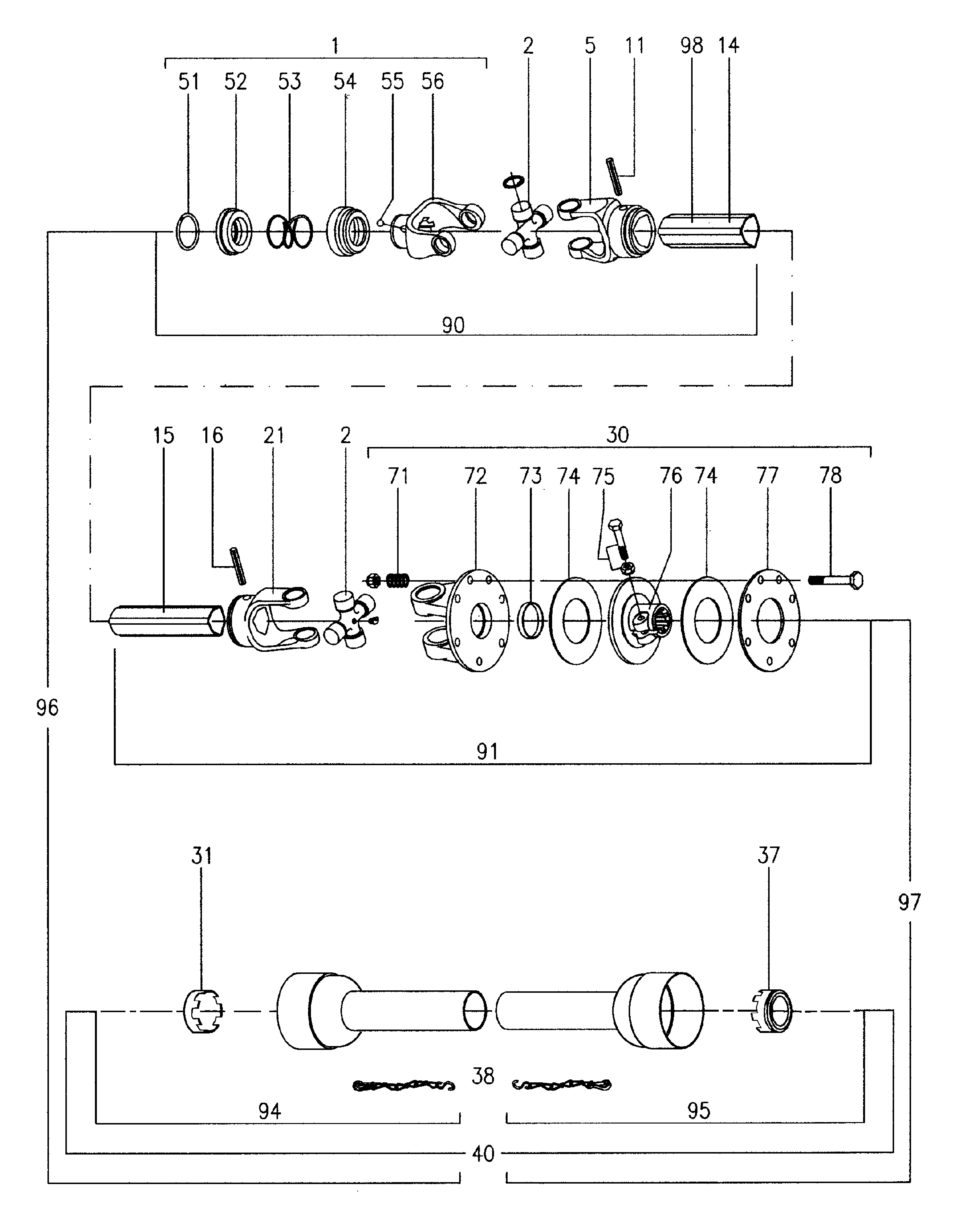

WOODS GTC40 ROTARY TILLER Driveline 00050U324 Assembly

    WOODS >woods-gtc40-rotary-tiller-parts-driveline-00050u324-assembly
    Ref: 1  Part #: 1001300  Price: $171.12

    Item: DRIVE, COLLAR YOKE C12 1-3/8-6 COMER

    QTY:
    Ref: 2  Part #: W38478  Price: $83.05

    Item: KIT, U-JOINT REPAIR 2300

    QTY:
    Ref: 5  Part #: 1001301  Price: $132.20

    Item: DRIVE, OUTER YOKE TUBE COMER

    QTY:
    Ref: 11  Part #: 1001302  Price: $3.40

    Item: PIN, SPRING 8 X 65 UNI 6873-71

    QTY:
    Ref: 14  Part #: 1001303  Price: $89.82

    Item: OUTER CARDAN TUBE

    QTY:
    Ref: 15  Part #: 1001304  Price: $113.60

    Item: INNER CARDAN TUBE

    QTY:
    Ref: 16  Part #: 1001305  Price: $3.58

    Item: PIN, SPRING 8 X 55 UNI 6873-71

    QTY:
    Ref: 21  Part #: 1001306  Price: $137.96

    Item: DRIVE, INNER YOKE TUBE COMER

    QTY:
    Ref: 30  Part #: 1001307  Price: $450.55

    Item: CPLT DISC CLUTCH

    QTY:
    Ref: 31  Part #: 1007131  Price: $11.66

    Item: RETAINING RING FOR OUTER TUBE

    QTY:
    Ref: 37  Part #: 1007132  Price: $13.88

    Item: RETAINING RING INNER TUBE

    QTY:
    Ref: 38  Part #: 1007133  Price: $8.65

    Item: CHAIN

    QTY:
    Ref: 40  Part #: 1007134  Price: $269.71

    Item: SHIELD PTO COMPLETE

    QTY:
    Ref: 51  Part #: NSS  Price: Call for price

    Item: Outer circlip

    QTY:
    Ref: 52  Part #: NSS  Price: Call for price

    Item: Sliding sleeve collar

    QTY:
    Ref: 53  Part #: NSS  Price: Call for price

    Item: Spring

    QTY:
    Ref: 54  Part #: NSS  Price: Call for price

    Item: Fixed sleeve

    QTY:
    Ref: 55  Part #: NSS  Price: Call for price

    Item: Balls

    QTY:
    Ref: 56  Part #: NS  Price: Call for price

    Item: Yoke C12

    QTY:
    Ref: 71  Part #: 1001311  Price: $7.22

    Item: CLUTCH SPRING,TPD COMER

    QTY:
    Ref: 72  Part #: 1001312  Price: $208.02

    Item: DRIVE, FLANGED YOKE COMER

    QTY:
    Ref: 73  Part #: 1001313  Price: $8.36

    Item: BUSHING, COMER 20 40 SERIES

    QTY:
    Ref: 74  Part #: 1001314  Price: $65.44

    Item: CLUTCH PART, LINING RING COMER 40 SERIES

    QTY:
    Ref: 75  Part #: 1001315  Price: $19.12

    Item: BOLT, HEX W/NUT M12 X 1.25 X 65

    QTY:
    Ref: 76  Part #: 1001316  Price: $236.34

    Item: CLUTCH, FLANGED HUB COMER

    QTY:
    Ref: 77  Part #: 1001317  Price: $107.70

    Item: CLUTCH, PRESSURE PLATE

    QTY:
    Ref: 78  Part #: 1001318  Price: $6.58

    Item: BOLT, HEX W/NUT M10 X 80

    QTY:
    Ref: 90  Part #: NS  Price: Call for price

    Item: O.half shaft

    QTY:
    Ref: 91  Part #: NS  Price: Call for price

    Item: I. half shaft

    QTY:
    Ref: 94  Part #: 1007135  Price: $176.22

    Item: SHIELD PTO OUTER HALF

    QTY:
    Ref: 95  Part #: 1007136  Price: $154.00

    Item: SHIELD PTO INNER HALF

    QTY:
    Ref: 96  Part #: 1007137  Price: $612.73

    Item: SHAFT OUTER HALF PTO W/SHIELD

    QTY:
    Ref: 97  Part #: 1007138  Price: $1,051.60

    Item: SHAFT INNER HALF PTO W/SHIELD

    QTY:
    Ref:   Part #: 00050U324  Price: Call for price

    Item: Driveline

    QTY:
