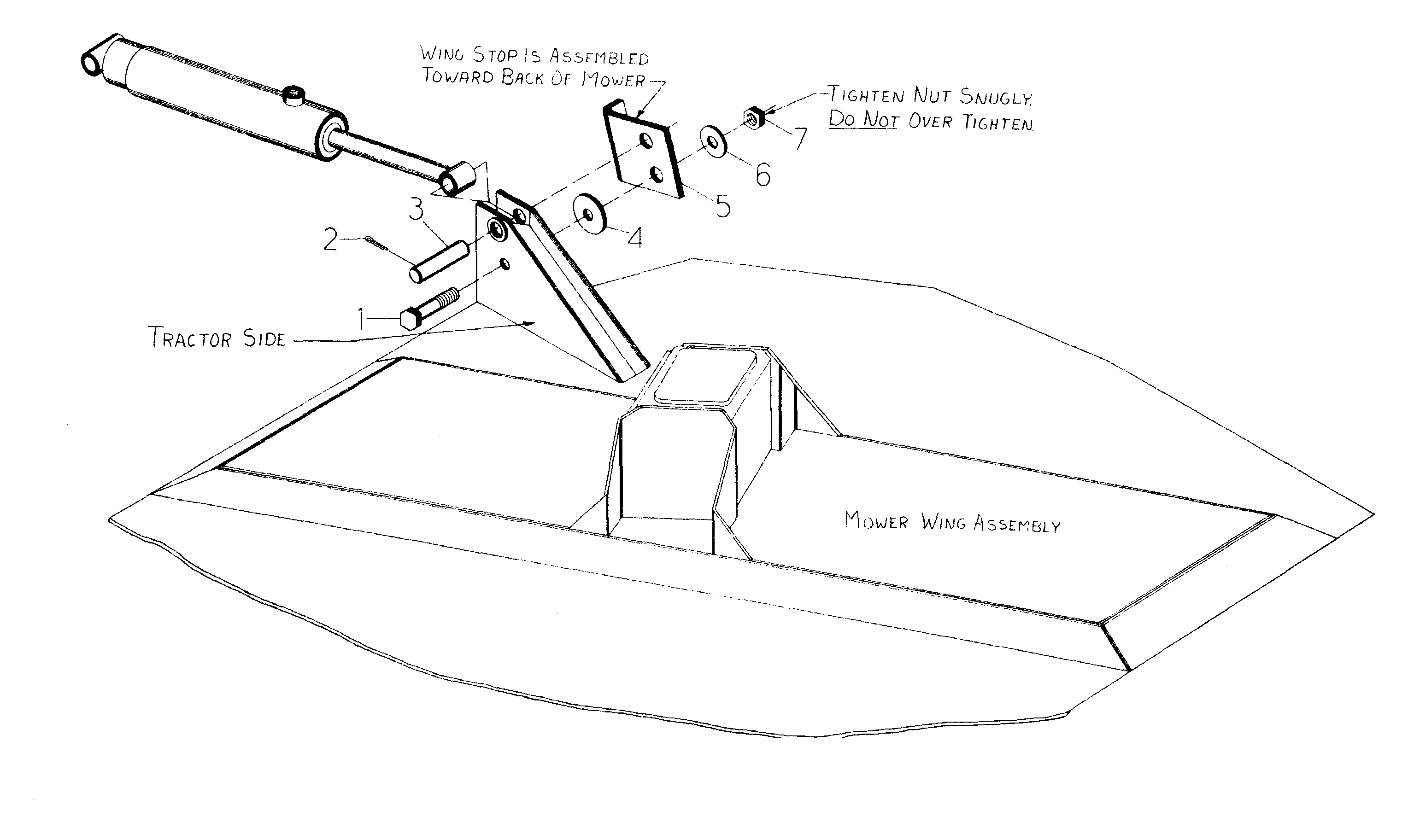

WOODS HD315 4 BATWING (11/88) Wing Lift Stop Assembly For 35N Wing Universal Drive

Ref	Part #	Item	Price
1	27038	3/4 NC x 4 HHCS	Call for price
2	1285	PIN, COTTER 1/4 X 1-1/2	$1.44
3	8345	PIN, HDLS 1.00 X 4.08	$16.47
4	W7828	WASHER, 3/4 X 2-1/2 X 1/4 HT FLT	$11.72
5	26328	Wing lift stop	$58.63
6	1257	WSHR 3/4 FLAT ZP	$2.13
7	2371	NUT, LOCK, 3/4 NC ZP	$3.23

Ref: 1 Part #: 27038 Price: Call for price

Item: 3/4 NC x 4 HHCS

QTY:

Ref: 2 Part #: 1285 Price: $1.44

Item: PIN, COTTER 1/4 X 1-1/2

QTY:

Ref: 3 Part #: 8345 Price: $16.47

Item: PIN, HDLS 1.00 X 4.08

QTY:

Ref: 4 Part #: W7828 Price: $11.72

Item: WASHER, 3/4 X 2-1/2 X 1/4 HT FLT

QTY:

Ref: 5 Part #: 26328 Price: $58.63

Item: Wing lift stop

QTY:

Ref: 6 Part #: 1257 Price: $2.13

Item: WSHR 3/4 FLAT ZP

QTY:

Ref: 7 Part #: 2371 Price: $3.23

Item: NUT, LOCK, 3/4 NC ZP

QTY:
