Ref	Part #	Item	Price
1	8968	L59K23 ETC IDLR BRKT	Call for price
2	30169	L59K72 ETC RR LIFT LUG	$35.09
3	30616	4/0 TWST LINK CHAIN 96	$44.79
4	33099	LT REAR LIFT ANGLE ASY	Call for price
5	6696RP	CHAIN IDLER CASTING	$36.78
6	4336	V GROOVE IDLR W BRG	$81.23
7	6095	BRG-BALL .626 ID X 1.85 OD	$33.79
8	4336	V GROOVE IDLR W BRG	$81.23
9	29718	V-BELT GUIDE	$22.09
10	33098	RT REAR LIFT ANGLE ASY	Call for price
11	33097	RR LIFT BRKT CLAMP BAR	Call for price
12	32970	W191 V-BELT	$143.04
13	23169	1 BK H10.9PDSHEAVE KEYED	$337.51
14	29715	BSHG H 1- 3/8 6B SPLN - KEY	$89.89
15	29720	L59K23 RR BELT SHLD	$668.19
20		WDS-117	$0.99
21	29714	3/16 x 3/8 x 1 Key (See note 2)	$3.77
22		WDS-117	$0.99
23		WDS-117	$0.99
24	409	PIN, CLEVIS 1/2 X 2	$6.75
25		WDS-117	$0.99
26	11900	NUT, LOCK FLANGE 1/2 NC	$1.90
27		WDS-117	$0.99
28		WDS-117	$0.99
29		WDS-117	$0.99
30		WDS-117	$0.99
31	8099	PIN CLV 5/8 X 3-3/4 HT	$31.36
32	5079	5/8 NC x 2-1/4 Carriage bolt (See note 13)	Call for price
33	410	PIN CLV 5/8 X 1-3/4	$3.83
34	33106	1 inch Schedule 40 x 1-1/4 pipe, painted (See note 15)	$40.48

Ref: 1 Part #: 8968 Price: Call for price

Item: L59K23 ETC IDLR BRKT

QTY:

Ref: 2 Part #: 30169 Price: $35.09

Item: L59K72 ETC RR LIFT LUG

QTY:

Ref: 3 Part #: 30616 Price: $44.79

Item: 4/0 TWST LINK CHAIN 96

QTY:

Ref: 4 Part #: 33099 Price: Call for price

Item: LT REAR LIFT ANGLE ASY

QTY:

Ref: 5 Part #: 6696RP Price: $36.78

Item: CHAIN IDLER CASTING

QTY:

Ref: 6 Part #: 4336 Price: $81.23

Item: V GROOVE IDLR W BRG

QTY:

Ref: 7 Part #: 6095 Price: $33.79

Item: BRG-BALL .626 ID X 1.85 OD

QTY:

Ref: 8 Part #: 4336 Price: $81.23

Item: V GROOVE IDLR W BRG

QTY:

Ref: 9 Part #: 29718 Price: $22.09

Item: V-BELT GUIDE

QTY:

Ref: 10 Part #: 33098 Price: Call for price

Item: RT REAR LIFT ANGLE ASY

QTY:

Ref: 11 Part #: 33097 Price: Call for price

Item: RR LIFT BRKT CLAMP BAR

QTY:

Ref: 12 Part #: 32970 Price: $143.04

Item: W191 V-BELT

QTY:

Ref: 13 Part #: 23169 Price: $337.51

Item: 1 BK H10.9PDSHEAVE KEYED

QTY:

Ref: 14 Part #: 29715 Price: $89.89

Item: BSHG H 1- 3/8 6B SPLN - KEY

QTY:

Ref: 15 Part #: 29720 Price: $668.19

Item: L59K23 RR BELT SHLD

QTY:

Ref: 20 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 21 Part #: 29714 Price: $3.77

Item: 3/16 x 3/8 x 1 Key (See note 2)

QTY:

Ref: 22 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 23 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 24 Part #: 409 Price: $6.75

Item: PIN, CLEVIS 1/2 X 2

QTY:

Ref: 25 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 26 Part #: 11900 Price: $1.90

Item: NUT, LOCK FLANGE 1/2 NC

QTY:

Ref: 27 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 28 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 29 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 30 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 31 Part #: 8099 Price: $31.36

Item: PIN CLV 5/8 X 3-3/4 HT

QTY:

Ref: 32 Part #: 5079 Price: Call for price

Item: 5/8 NC x 2-1/4 Carriage bolt (See note 13)

QTY:

Ref: 33 Part #: 410 Price: $3.83

Item: PIN CLV 5/8 X 1-3/4

QTY:

Ref: 34 Part #: 33106 Price: $40.48

Item: 1 inch Schedule 40 x 1-1/4 pipe, painted (See note 15)

QTY:

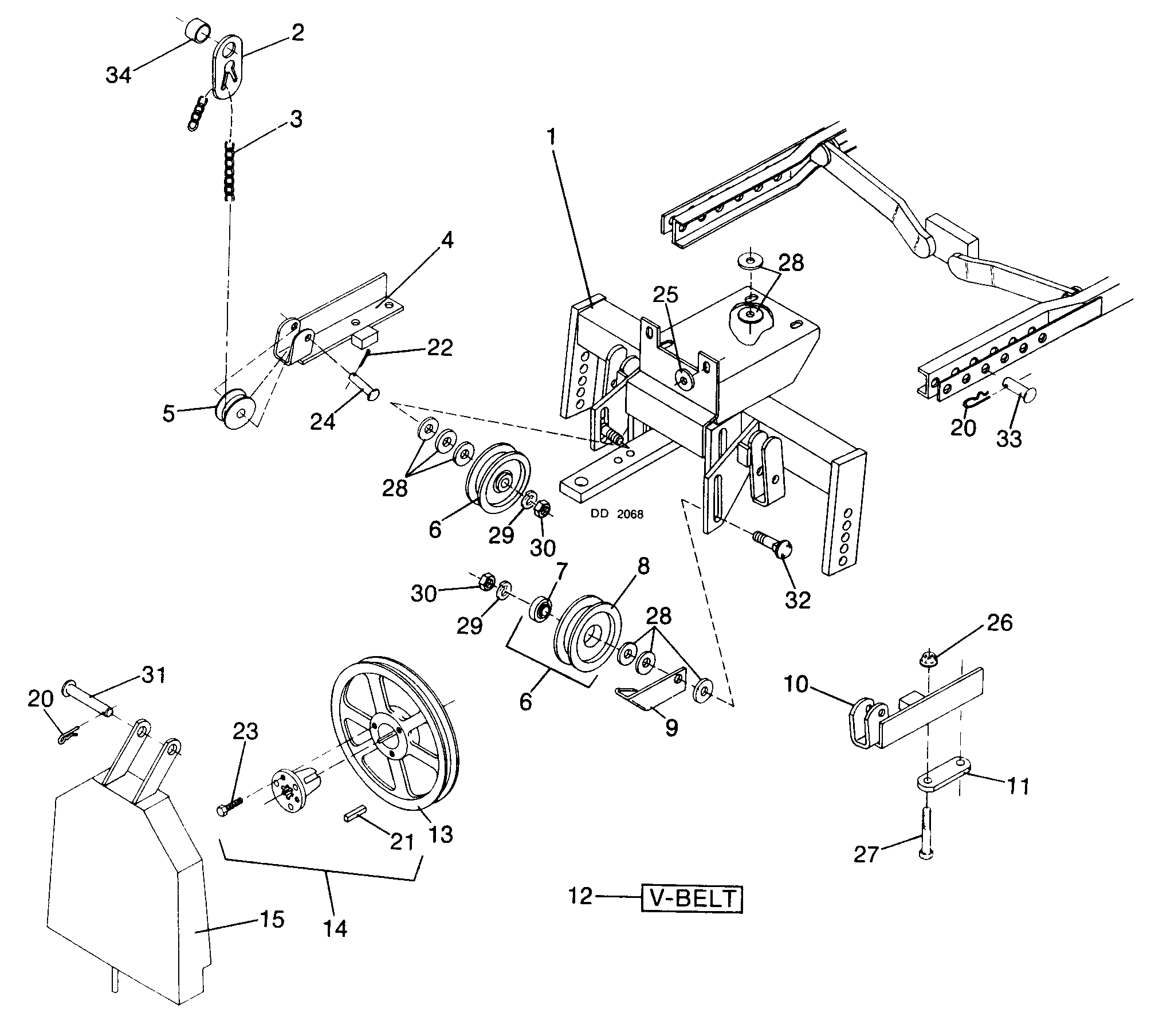

WOODS L306K50 KUBOTA L2250&#44; L2550&#44; L2850 Rear Mounting Assembly

WOODS L306K50 KUBOTA L2250, L2550, L2850 Rear Mounting Assembly
