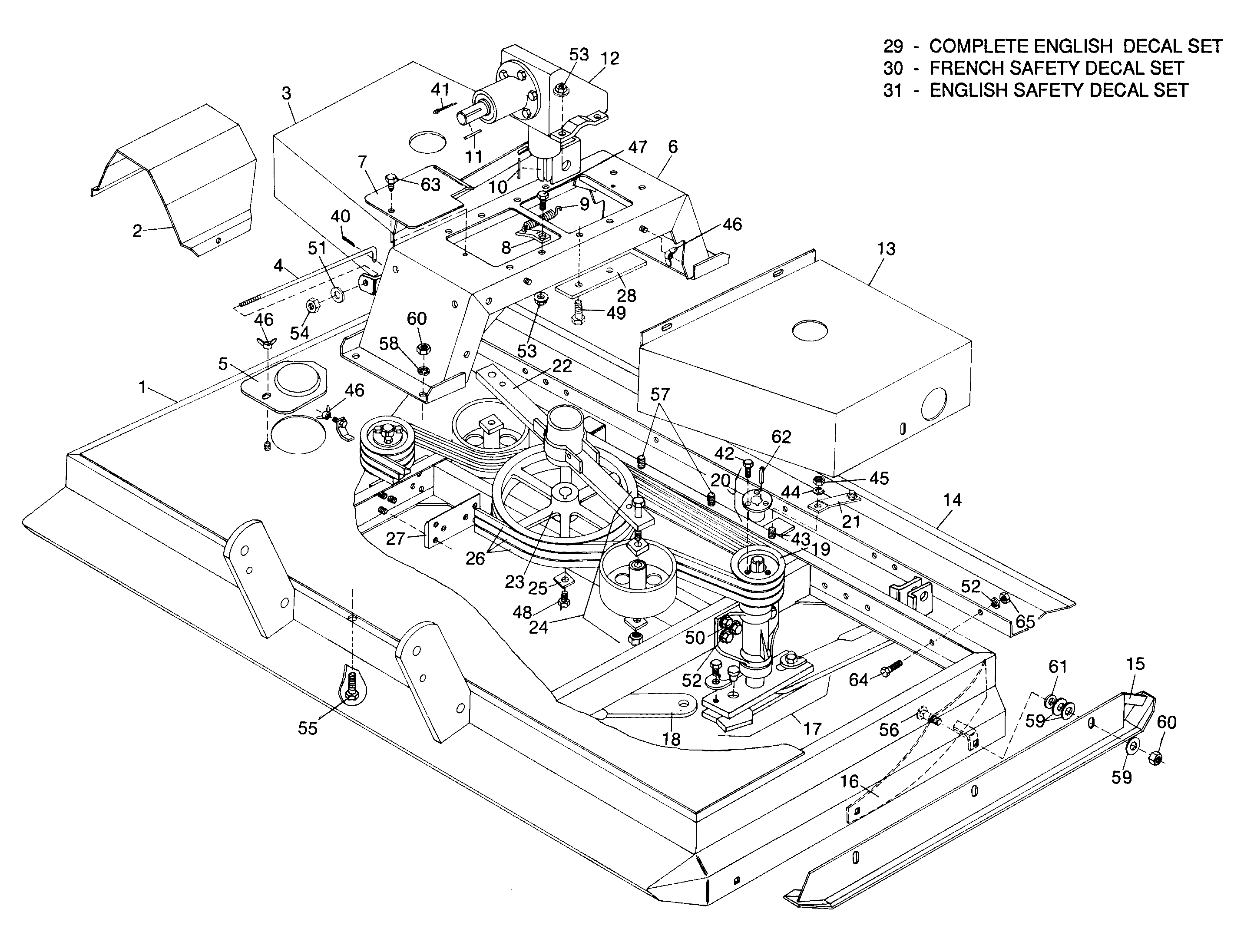

WOODS MD 80 D80 And MD80 Main Assembly

    WOODS >woods-md-80-multi-spindle-cutter-parts-d80-and-md80-main-assembly
    Ref: 1  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 2  Part #: 28219RP  Price: $187.14

    Item: D-80 RR DRIVE SHIELD

    QTY:
    Ref: 3  Part #: W12162  Price: $157.57

    Item: C80ETC RIGHT V BELT SHLD

    QTY:
    Ref: 4  Part #: 28230RP  Price: $107.56

    Item: D-80ETC TAKE UP ROD IDLR

    QTY:
    Ref: 5  Part #: 3444RP  Price: $22.22

    Item: ACCESS HOLE COVER

    QTY:
    Ref: 6  Part #: 28225RP  Price: $1,009.47

    Item: D80 GR BOX STAND WLDMT

    QTY:
    Ref: 7  Part #: 28203  Price: $45.76

    Item: D-80ETC TOWER ACCESS CVR

    QTY:
    Ref: 8  Part #: 1942RP  Price: $93.17

    Item: GR BX ANGLE BRKT

    QTY:
    Ref: 9  Part #: 419  Price: $20.19

    Item: SPR/EXT0.88 .15 4.1 107

    QTY:
    Ref: 10  Part #: 607RP  Price: $3.60

    Item: 3/8 X 3/8 X 2-3/8 KEY

    QTY:
    Ref: 11  Part #: 1036666RP  Price: $8.36

    Item: KEY, 3/8 X 3/8 X 2

    QTY:
    Ref: 12  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 13  Part #: W12163  Price: $157.57

    Item: C80 ETC LEFT V BELT SHLD

    QTY:
    Ref: 14  Part #: 7190  Price: $163.94

    Item: C80 REAR SHIELD

    QTY:
    Ref: 15  Part #: 1563  Price: $226.35

    Item: C80 C080 C114SKID W/HDWR

    QTY:
    Ref: 15  Part #: 1563  Price: $226.35

    Item: C80 C080 C114SKID W/HDWR

    QTY:
    Ref: 16  Part #: 2128  Price: $159.92

    Item: C80 ETC ANTIWNDRO BFL

    QTY:
    Ref: 17  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 18  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 19  Part #: 10578RP  Price: $135.01

    Item: C80 ETC 3 TB 7.5 SHEAVE

    QTY:
    Ref: 20  Part #: 1482  Price: $56.59

    Item: BSHG P1 1-1/4 STRT BORE

    QTY:
    Ref: 21  Part #: 467  Price: $57.56

    Item: REAR SHIELD BRACE

    QTY:
    Ref: 22  Part #: W10617  Price: Call for price

    Item: Idler arm assembly

    QTY:
    Ref: 23  Part #: 10575RP  Price: $196.70

    Item: SHEAVE, C80 ETC 3 SB 185

    QTY:
    Ref: 24  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 25  Part #: 606  Price: $81.98

    Item: LUG 1/4 X 1-1/2 X 2

    QTY:
    Ref: 26  Part #: 222  Price: $199.18

    Item: W95 SET OF 3V-BLTS C80114

    QTY:
    Ref: 27  Part #: 29038RP  Price: $90.98

    Item: C80 ETC SPINDLE SUPP PLT

    QTY:
    Ref: 28  Part #: 29280RP  Price: $26.71

    Item: 3/8X1-1/2X9-1/4 REIN BAR

    QTY:
    Ref: 29  Part #: 28205  Price: $87.72

    Item: DCL SET CMPL D80

    QTY:
    Ref: 30  Part #: 51521  Price: $238.60

    Item: French safety decal set

    QTY:
    Ref: 31  Part #: 31521  Price: $208.53

    Item: DCL SET SFTY SINGL/MULT

    QTY:
    Ref: 40  Part #: 1266  Price: $1.44

    Item: PIN, COTTER 3/16 X 1-1/2

    QTY:
    Ref: 41  Part #: 1426  Price: Call for price

    Item: 1/4 x 3 Cotter pin (See note 7)

    QTY:
    Ref: 42  Part #: 14562  Price: $1.72

    Item: BOLT, HEX 5/16 NC X 1 GR5

    QTY:
    Ref: 43  Part #: 839  Price: $1.54

    Item: BOLT, HEX 3/8 NC X 1 GR5 ZP

    QTY:
    Ref: 44  Part #: 838  Price: $1.44

    Item: WASHER, LOCK, 3/8 ZP

    QTY:
    Ref: 45  Part #: 835  Price: $1.72

    Item: NUT, HEX 3/8 NC ZP

    QTY:
    Ref: 46  Part #: 1287  Price: $1.72

    Item: NUT WING 3/8 NC

    QTY:
    Ref: 47  Part #: 6100  Price: $2.52

    Item: BOLT, HEX 1/2 NC X 1-1/4 GR5 ZP

    QTY:
    Ref: 48  Part #: 1262RP  Price: $22.89

    Item: HHCS 1/2 NC X 1-1/4 DRL HD

    QTY:
    Ref: 49  Part #: 24576  Price: $2.52

    Item: HHCS 1/2 NC X 1-3/4 GR5 ZP

    QTY:
    Ref: 50  Part #: 3452  Price: $12.05

    Item: HHCS 1/2 NF X 1-1/2 HT

    QTY:
    Ref: 51  Part #: 854  Price: $1.44

    Item: WASHER, FLAT, 1/2 STD ZP

    QTY:
    Ref: 52  Part #: 855  Price: $1.44

    Item: WASHER, LOCK, 1/2 ZP

    QTY:
    Ref: 53  Part #: 11900  Price: $1.90

    Item: NUT, LOCK FLANGE 1/2 NC

    QTY:
    Ref: 54  Part #: 6241  Price: $1.67

    Item: NUT, LOCK NYLOC 1/2 NC

    QTY:
    Ref: 55  Part #: 4548  Price: $2.31

    Item: BOLT, HEX 5/8 NC X 1-3/4 GR5 ZP

    QTY:
    Ref: 56  Part #: 2855  Price: $3.13

    Item: BOLT, CARRIAGE 5/8 NC X 2

    QTY:
    Ref: 57  Part #: 12274  Price: $3.54

    Item: BOLT, HEX 5/8 NC X 2-1/4 GR5

    QTY:
    Ref: 58  Part #: 1286  Price: $1.72

    Item: WASHER, LOCK, HEAVY ZP

    QTY:
    Ref: 59  Part #: 692  Price: $1.72

    Item: WASHER, FLAT, 5/8 STD ZP

    QTY:
    Ref: 60  Part #: 230  Price: $1.72

    Item: NUT, HEX, 5/8 NC PLATD

    QTY:
    Ref: 61  Part #: 2864  Price: $0.99

    Item: WASHER, FLAT, 3/4, ZINC-PLT STL

    QTY:
    Ref: 62  Part #: 7142  Price: $5.90

    Item: 1/4 X 1/4 X 2 KEY

    QTY:
    Ref: 63  Part #: 27610  Price: $3.31

    Item: .31X.75 SHT MTL SCREW

    QTY:
    Ref: 64  Part #: 25475  Price: $2.13

    Item: BOLT, HEX 1/2 NC X 1 GR5 ZP FUL THD

    QTY:
    Ref: 65  Part #: 1093  Price: $1.54

    Item: NUT, HEX HEAVY 1/2 NC ZP
