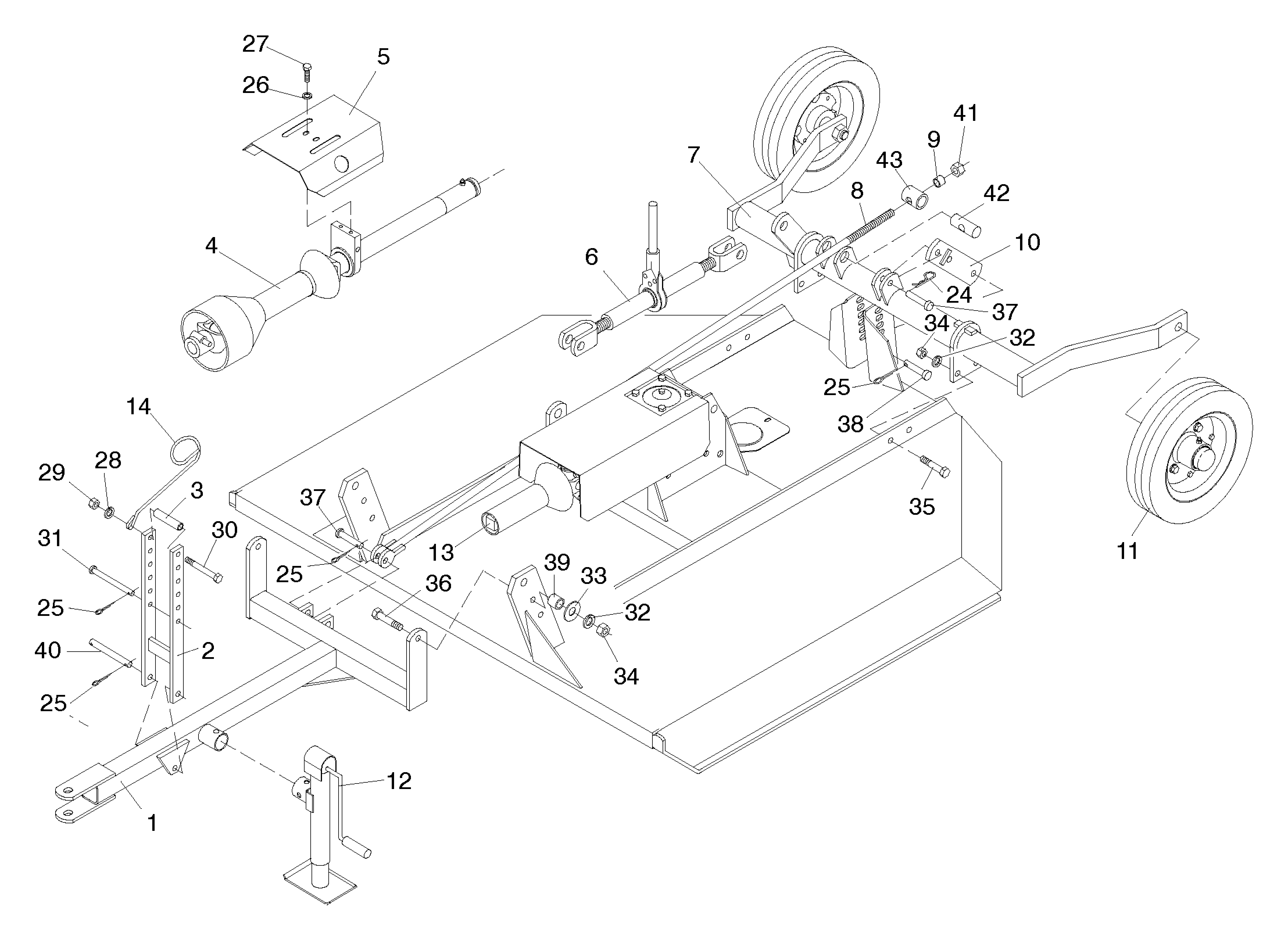

WOODS MDP160 1 SINGLE SPINDLE Main Frame Assembly (Pull-Type)

    WOODS >woods-mdp160-1-single-spindle-single-spindle-cutter-parts-main-frame-assembly-(pull-type)
    Ref: 1  Part #: 8764  Price: Call for price

    Item: Tongue assembly

    QTY:
    Ref: 2  Part #: 7668RP  Price: $126.34

    Item: 60-4 ETC H FRAME ASY

    QTY:
    Ref: 3  Part #: 7035  Price: $17.39

    Item: PIPE, 1/2 SCHEDULE 40 X 3.56

    QTY:
    Ref: 4  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 5  Part #: 19012  Price: $87.51

    Item: BLNK DRV SHIELD 10.5

    QTY:
    Ref: 6  Part #: 23649  Price: Call for price

    Item: Ratchet adjustment Link with pins

    QTY:
    Ref: 7  Part #: 8763  Price: $338.50

    Item: Wheel yoke assembly

    QTY:
    Ref: 8  Part #: 11174  Price: $136.51

    Item: 60-4 ETC LEVELER ROD

    QTY:
    Ref: 9  Part #: 11190  Price: $51.99

    Item: PIPE 3/4 SCH 80X 0.75

    QTY:
    Ref: 10  Part #: 15733  Price: Call for price

    Item: Transport lock bar

    QTY:
    Ref: 11  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 12  Part #: 23790  Price: $172.80

    Item: JACK, PARKING SWIVEL 2000LBS CAP

    QTY:
    Ref: 13  Part #: 9073  Price: $150.83

    Item: SHAFT

    QTY:
    Ref: 13  Part #: 9305  Price: $548.02

    Item: 6SCLCH1.375B14N-1-3/16SQ

    QTY:
    Ref: 14  Part #: 3443  Price: $49.16

    Item: HYD HOSE HOLDER

    QTY:
    Ref: 24  Part #: 18270  Price: $1.19

    Item: PIN, SAFETY 3/16 X3-1/4

    QTY:
    Ref: 25  Part #: 1256  Price: $1.19

    Item: 3/16 X 1, COTTER PIN

    QTY:
    Ref: 26  Part #: 838  Price: $1.44

    Item: WASHER, LOCK, 3/8 ZP

    QTY:
    Ref: 27  Part #: 839  Price: $1.54

    Item: BOLT, HEX 3/8 NC X 1 GR5 ZP

    QTY:
    Ref: 28  Part #: 855  Price: $1.44

    Item: WASHER, LOCK, 1/2 ZP

    QTY:
    Ref: 29  Part #: 1093  Price: $1.54

    Item: NUT, HEX HEAVY 1/2 NC ZP

    QTY:
    Ref: 30  Part #: 12305  Price: $3.23

    Item: BOLT, HEX 1/2 NC X 5-1/2 GR5

    QTY:
    Ref: 31  Part #: W404  Price: $18.64

    Item: PIN, CLV 1/2 X 5-3/4 HT

    QTY:
    Ref: 32  Part #: 1286  Price: $1.72

    Item: WASHER, LOCK, HEAVY ZP

    QTY:
    Ref: 33  Part #: 692  Price: $1.72

    Item: WASHER, FLAT, 5/8 STD ZP

    QTY:
    Ref: 34  Part #: 230  Price: $1.72

    Item: NUT, HEX, 5/8 NC PLATD

    QTY:
    Ref: 35  Part #: 4548  Price: $2.31

    Item: BOLT, HEX 5/8 NC X 1-3/4 GR5 ZP

    QTY:
    Ref: 36  Part #: 12274  Price: $3.54

    Item: BOLT, HEX 5/8 NC X 2-1/4 GR5

    QTY:
    Ref: 37  Part #: 5777  Price: $15.03

    Item: PIN CLV 5/8 X 2-1/4

    QTY:
    Ref: 38  Part #: 8099  Price: $31.36

    Item: PIN CLV 5/8 X 3-3/4 HT

    QTY:
    Ref: 39  Part #: 11081  Price: $42.53

    Item: BSHG 5/8 X 7/8 X 11/16 HT

    QTY:
    Ref: 40  Part #: W8317  Price: $36.32

    Item: PIN CLV 5/8 X 5-21/32

    QTY:
    Ref: 41  Part #: 2371  Price: $3.23

    Item: NUT, LOCK, 3/4 NC ZP

    QTY:
    Ref: 42  Part #: 11099  Price: $37.38

    Item: 1-1/4 X 3-1/4 LONG PIN

    QTY:
    Ref: 43  Part #: 11100  Price: $108.46

    Item: 1-5/16 x 1-3/4 x 2-1/8 Sleeve

    QTY:
