Ref	Part #	Item	Price
1	54535	DEL- WA, AG GRAPPLE FORK	$1,441.71
2	56579	BAR, DR 1.000 X 4.38	$208.65
3	54536	Grapple backing plate	$708.10
4	54748	PIN, DR .875 X 3.50	$81.06
5	54503	HYDRAULIC TUBE LINE	$49.61
6	54508	ADAPTER, 9/16 JICM X 9/16 JICM	$3.35
7	56584	ASY HYDRAULIC C	$402.20
7A	1009060	KIT,SEAL 2 IN HYD CYL	$31.70
8	54746	PIN, DR 1.000 DIA X 5.50	$334.98
9	54517	Foot step	$105.05
10	54529	Hose guide	$57.64
11	52664	TINE, 1.25 DIA X 32.25	$122.63
15	2452	3/16 x 2-1/2 Cotter pin	Call for price
16	12296	FITTING, GREASE 1/4-28 X 15/32 STRT	$1.54
17	14139	NUT, LOCK FLANGE 5/16 NC	$3.13
18	7164	5/16 NC x 2-1/4 HHCS GR5	Call for price
19	6698	NUT LOCK 3/8 NC ZP	$1.19
20	W003231	DEL- BRACKET ASSEMBLY	$103.45
21	565	WASHER, FLAT 3/8	$1.72
22	90001703	BOLT, CRG 3/8 NC X 3 GR5 ZP	$3.34
22	90001705	3/8 NC x 3-1/2 Carriage bolt	$1.62
22	90001708	BOLT CRG 3/8 NC X 4-1/2 GR5 ZP	$6.12
23	11900	NUT, LOCK FLANGE 1/2 NC	$1.90
24	854	WASHER, FLAT, 1/2 STD ZP	$1.44
25	6100	BOLT, HEX 1/2 NC X 1-1/4 GR5 ZP	$2.52
26	54808	Decal set	Call for price

Ref: 1 Part #: 54535 Price: $1,441.71

Item: DEL- WA, AG GRAPPLE FORK

QTY:

Ref: 2 Part #: 56579 Price: $208.65

Item: BAR, DR 1.000 X 4.38

QTY:

Ref: 3 Part #: 54536 Price: $708.10

Item: Grapple backing plate

QTY:

Ref: 4 Part #: 54748 Price: $81.06

Item: PIN, DR .875 X 3.50

QTY:

Ref: 5 Part #: 54503 Price: $49.61

Item: HYDRAULIC TUBE LINE

QTY:

Ref: 6 Part #: 54508 Price: $3.35

Item: ADAPTER, 9/16 JICM X 9/16 JICM

QTY:

Ref: 7 Part #: 56584 Price: $402.20

Item: ASY HYDRAULIC C

QTY:

Ref: 7A Part #: 1009060 Price: $31.70

Item: KIT,SEAL 2 IN HYD CYL

QTY:

Ref: 8 Part #: 54746 Price: $334.98

Item: PIN, DR 1.000 DIA X 5.50

QTY:

Ref: 9 Part #: 54517 Price: $105.05

Item: Foot step

QTY:

Ref: 10 Part #: 54529 Price: $57.64

Item: Hose guide

QTY:

Ref: 11 Part #: 52664 Price: $122.63

Item: TINE, 1.25 DIA X 32.25

QTY:

Ref: 15 Part #: 2452 Price: Call for price

Item: 3/16 x 2-1/2 Cotter pin

QTY:

Ref: 16 Part #: 12296 Price: $1.54

Item: FITTING, GREASE 1/4-28 X 15/32 STRT

QTY:

Ref: 17 Part #: 14139 Price: $3.13

Item: NUT, LOCK FLANGE 5/16 NC

QTY:

Ref: 18 Part #: 7164 Price: Call for price

Item: 5/16 NC x 2-1/4 HHCS GR5

QTY:

Ref: 19 Part #: 6698 Price: $1.19

Item: NUT LOCK 3/8 NC ZP

QTY:

Ref: 20 Part #: W003231 Price: $103.45

Item: DEL- BRACKET ASSEMBLY

QTY:

Ref: 21 Part #: 565 Price: $1.72

Item: WASHER, FLAT 3/8

QTY:

Ref: 22 Part #: 90001703 Price: $3.34

Item: BOLT, CRG 3/8 NC X 3 GR5 ZP

QTY:

Ref: 22 Part #: 90001705 Price: $1.62

Item: 3/8 NC x 3-1/2 Carriage bolt

QTY:

Ref: 22 Part #: 90001708 Price: $6.12

Item: BOLT CRG 3/8 NC X 4-1/2 GR5 ZP

QTY:

Ref: 23 Part #: 11900 Price: $1.90

Item: NUT, LOCK FLANGE 1/2 NC

QTY:

Ref: 24 Part #: 854 Price: $1.44

Item: WASHER, FLAT, 1/2 STD ZP

QTY:

Ref: 25 Part #: 6100 Price: $2.52

Item: BOLT, HEX 1/2 NC X 1-1/4 GR5 ZP

QTY:

Ref: 26 Part #: 54808 Price: Call for price

Item: Decal set

QTY:

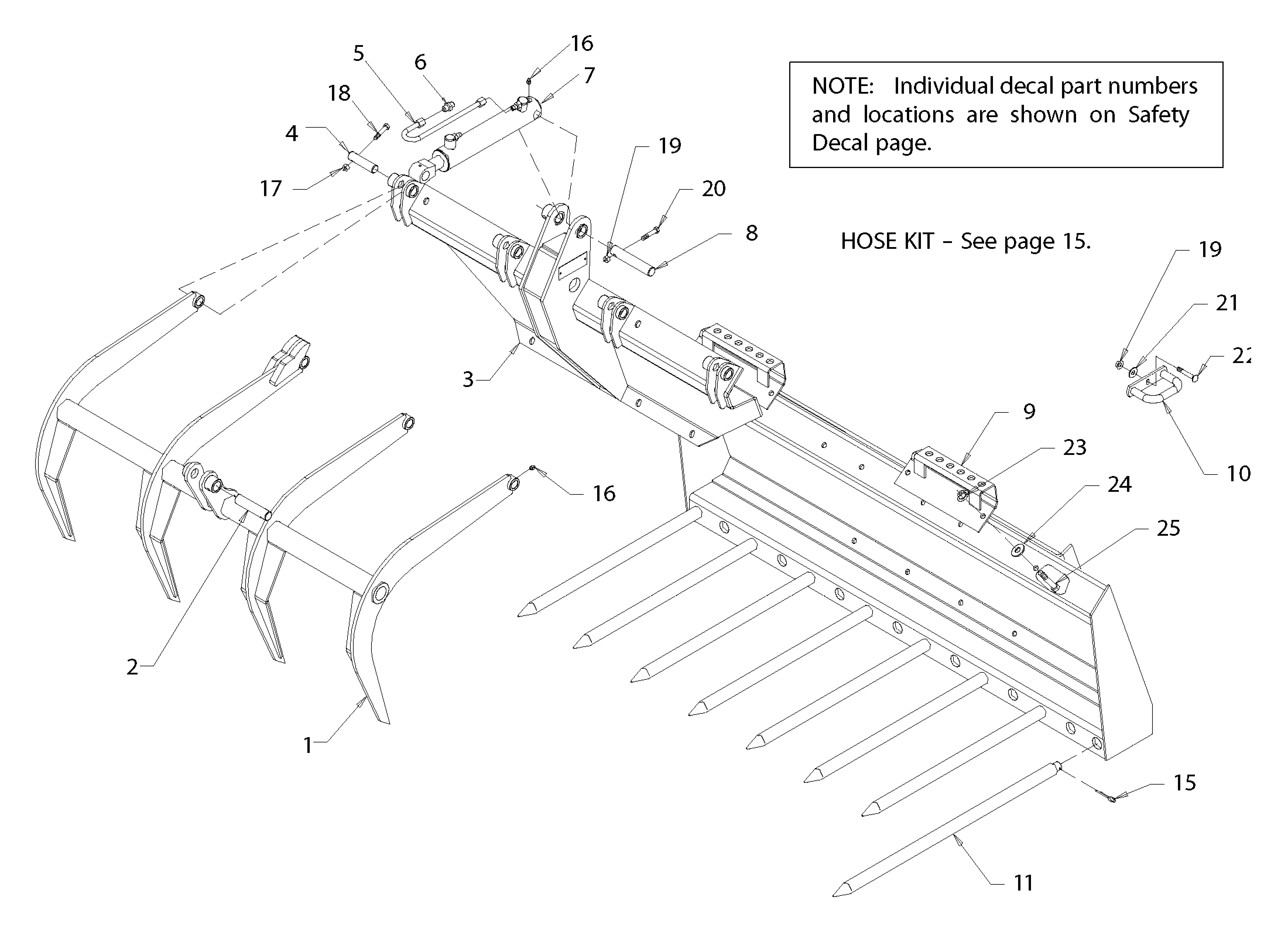

WOODS MF7200 MANURE FORK SKIDTOOL Parts List Assembly
