Ref	Part #	Item	Price
	8349	Front caster kit complete with solid tire standard	Call for price
1	wp1008096 but need 29368	CASTER WHEEL	Call for price
1	WP19754	WHL 10 PNEUM W/BRG - SLV	$120.24
1A	WP19754	WHL 10 PNEUM W/BRG - SLV	$120.24
1	WP18989	WHEEL, 10 HD W/BRG - SLV GRAY	$127.20
2	67318RP	WA, CASTER SHAFT - YOKE	$83.55
2	19747RP	WA, CASTER YOKE - SHAFT	$108.73
3	67291RP	ARM LT FRT CASTER WA	$110.27
3	18828	WA,LT FRT CSTR ARM6 RM	$142.57
4	67290RP	ARM RT FRT CASTER WA	$110.27
4	18832	WA,RT FRT CSTRARM6 RM	$142.57
5	67407RP	SPRING, CMP 1.40 .19 2.1 257	$6.48
6	34466	BRG-.75 X 1.38 X 1.5 ROLLER	$21.45
6	19756	3/4 X 1-3/8 X 2-1/2 ROLLER BRG	$15.70
20	12296	FITTING, GREASE 1/4-28 X 15/32 STRT	$1.54
21	6697	BOLT, CARRIAGE 3/8 NC X 1 GR5 ZP	$1.72
22	14350	NUT, LOCK FLANGE 3/8 NC	$1.72
23	3379	BOLT, HEX 1/2 NC X 1-1/2 GR5 ZP	$2.93
24	23479	BOLT, HEX 1/2 NC X 5 GR5 ZP	$3.91
24	12305	BOLT, HEX 1/2 NC X 5-1/2 GR5	$3.23
25	855	WASHER, LOCK, 1/2 ZP	$1.44
26	33677	WSHR 1/2 X 1-9/16 X 10GA	$2.13
27	11900	NUT, LOCK FLANGE 1/2 NC	$1.90
28	29368	.50 X .75 X 3.38 SLEEVE	$8.52
28	19749	SLV HT .525 X .750 X 4.13	$7.22
29	29375	3/4X1-1/8FLNG BRG FOR WH	$6.13
29	65577	BRG-.75 X 1.415 FLG WH W/GRV	$9.09
30	65129	PIPE 1 SCH 40X 0.50	$3.74
31	33647	PIPE 1 SCH 40 X 0.75	$3.13
32	65130	PIPE, 1 SCH 40X 1.00	$4.40
33	6100	BOLT, HEX 1/2 NC X 1-1/4 GR5 ZP	$2.52

Ref: Part #: 8349 Price: Call for price

Item: Front caster kit complete with solid tire standard

QTY:

Ref: 1 Part #: wp1008096 but need 29368 Price: Call for price

Item: CASTER WHEEL

QTY:

Ref: 1 Part #: WP19754 Price: $120.24

Item: WHL 10 PNEUM W/BRG - SLV

QTY:

Ref: 1A Part #: WP19754 Price: $120.24

Item: WHL 10 PNEUM W/BRG - SLV

QTY:

Ref: 1 Part #: WP18989 Price: $127.20

Item: WHEEL, 10 HD W/BRG - SLV GRAY

QTY:

Ref: 2 Part #: 67318RP Price: $83.55

Item: WA, CASTER SHAFT - YOKE

QTY:

Ref: 2 Part #: 19747RP Price: $108.73

Item: WA, CASTER YOKE - SHAFT

QTY:

Ref: 3 Part #: 67291RP Price: $110.27

Item: ARM LT FRT CASTER WA

QTY:

Ref: 3 Part #: 18828 Price: $142.57

Item: WA,LT FRT CSTR ARM6 RM

QTY:

Ref: 4 Part #: 67290RP Price: $110.27

Item: ARM RT FRT CASTER WA

QTY:

Ref: 4 Part #: 18832 Price: $142.57

Item: WA,RT FRT CSTRARM6 RM

QTY:

Ref: 5 Part #: 67407RP Price: $6.48

Item: SPRING, CMP 1.40 .19 2.1 257

QTY:

Ref: 6 Part #: 34466 Price: $21.45

Item: BRG-.75 X 1.38 X 1.5 ROLLER

QTY:

Ref: 6 Part #: 19756 Price: $15.70

Item: 3/4 X 1-3/8 X 2-1/2 ROLLER BRG

QTY:

Ref: 20 Part #: 12296 Price: $1.54

Item: FITTING, GREASE 1/4-28 X 15/32 STRT

QTY:

Ref: 21 Part #: 6697 Price: $1.72

Item: BOLT, CARRIAGE 3/8 NC X 1 GR5 ZP

QTY:

Ref: 22 Part #: 14350 Price: $1.72

Item: NUT, LOCK FLANGE 3/8 NC

QTY:

Ref: 23 Part #: 3379 Price: $2.93

Item: BOLT, HEX 1/2 NC X 1-1/2 GR5 ZP

QTY:

Ref: 24 Part #: 23479 Price: $3.91

Item: BOLT, HEX 1/2 NC X 5 GR5 ZP

QTY:

Ref: 24 Part #: 12305 Price: $3.23

Item: BOLT, HEX 1/2 NC X 5-1/2 GR5

QTY:

Ref: 25 Part #: 855 Price: $1.44

Item: WASHER, LOCK, 1/2 ZP

QTY:

Ref: 26 Part #: 33677 Price: $2.13

Item: WSHR 1/2 X 1-9/16 X 10GA

QTY:

Ref: 27 Part #: 11900 Price: $1.90

Item: NUT, LOCK FLANGE 1/2 NC

QTY:

Ref: 28 Part #: 29368 Price: $8.52

Item: .50 X .75 X 3.38 SLEEVE

QTY:

Ref: 28 Part #: 19749 Price: $7.22

Item: SLV HT .525 X .750 X 4.13

QTY:

Ref: 29 Part #: 29375 Price: $6.13

Item: 3/4X1-1/8FLNG BRG FOR WH

QTY:

Ref: 29 Part #: 65577 Price: $9.09

Item: BRG-.75 X 1.415 FLG WH W/GRV

QTY:

Ref: 30 Part #: 65129 Price: $3.74

Item: PIPE 1 SCH 40X 0.50

QTY:

Ref: 31 Part #: 33647 Price: $3.13

Item: PIPE 1 SCH 40 X 0.75

QTY:

Ref: 32 Part #: 65130 Price: $4.40

Item: PIPE, 1 SCH 40X 1.00

QTY:

Ref: 33 Part #: 6100 Price: $2.52

Item: BOLT, HEX 1/2 NC X 1-1/4 GR5 ZP

QTY:

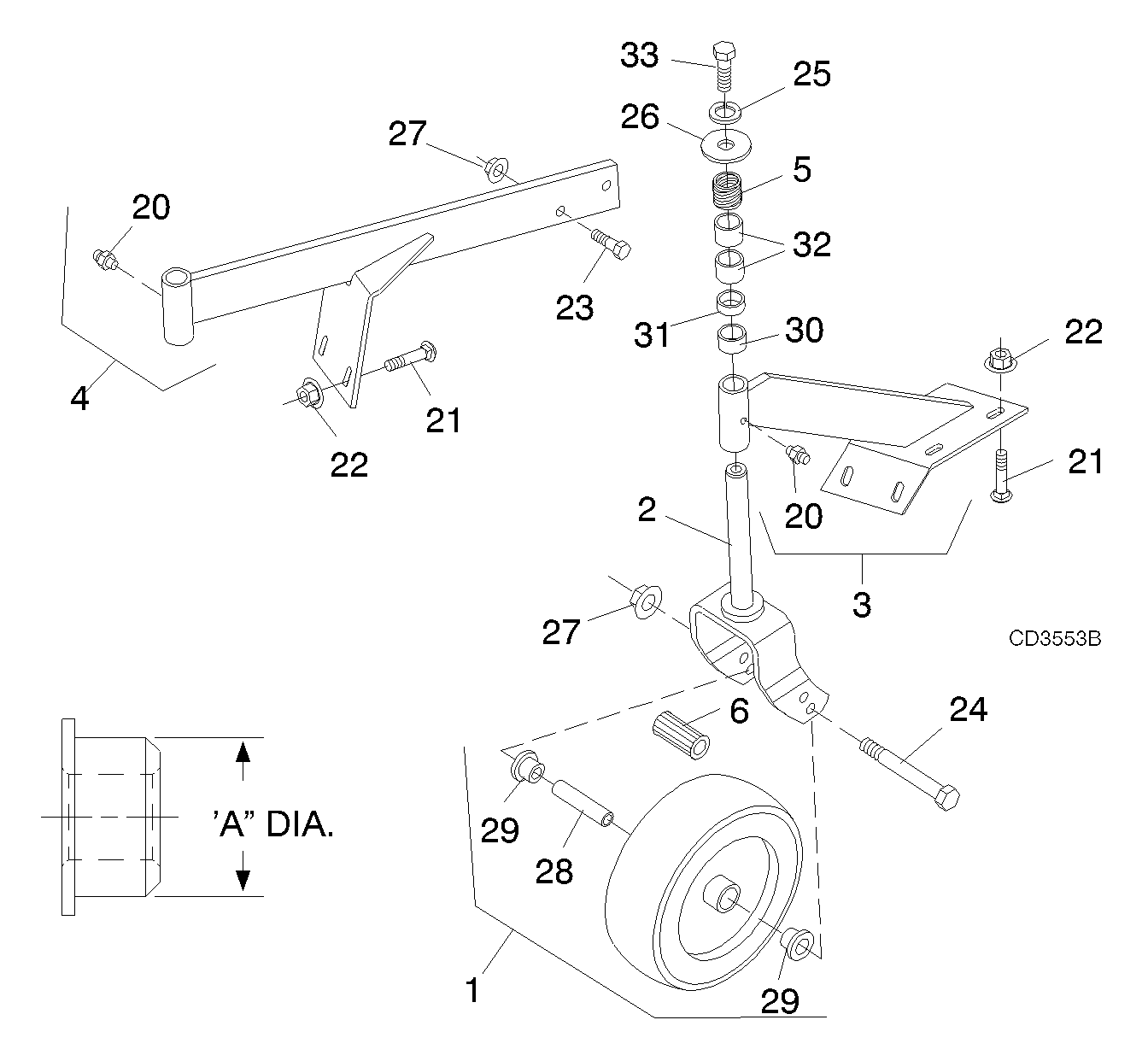

WOODS RM372 (02/04/99) Front Caster Wheel Assembly
