KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
1	23903	ASY-SPINDLE CCW RM59	$217.89
2	31359	CCW 20-1/4 inch High lift blade (Standard)	Call for price
2	25997	CCW 20-1/4 inch Low-suction blade (See note 1)	Call for price
3	4110	WSHR SHOULDER	$23.87
4	3761	ASY-SPINDLE L59	$208.50
5	31315	RM59-2 SIDE SKID	$47.12
6	29159RP	BK 3.6H SHEAVE	$51.39
7	4227	BSHG H 3/4 STRT W/BOLTS	$51.26
8	33612	RM59-3 RT BELT SHIELD	$106.24
9	33613	RM59-3 LT BELT SHIELD	$94.12
10	4336	V GROOVE IDLR W BRG	$81.23
11	6095	BRG-BALL .626 ID X 1.85 OD	$33.79
12	4336	V GROOVE IDLR W BRG	$81.23
13	1019624	DECAL SET, CMPL RM MOWERS	$187.56
14	20669	WRENCH SPINDLE/BLADE	$38.26
15		WDS-117	$0.99
16	29718	V-BELT GUIDE	$22.09
30	3885	3/16 X 3/16 X 1-1/4 KEY	$3.74
31	1985	WASHER, LOCK 1/4	$1.64
32	10378	BOLT, HEX 1/4NC X 1 GR5	$0.99
33	835	NUT, HEX 3/8 NC ZP	$1.72
34	838	WASHER, LOCK, 3/8 ZP	$1.44
35	565	WASHER, FLAT 3/8	$1.72
36	7701	3/8 NC x 1 Plow bolt (See note 8)	Call for price
37	14350	NUT, LOCK FLANGE 3/8 NC	$1.72
38	6697	BOLT, CARRIAGE 3/8 NC X 1 GR5 ZP	$1.72
39	4119	BOLT, HEX 1/2 NF X 1 GR5	$1.90
40	855	WASHER, LOCK, 1/2 ZP	$1.44
41	3632	WASHER, FLAT, 5/8 SAE ZP	$1.44
42	33660	BOLT CRG 5/8 NC X 2-1/4 GR5	$2.84
43	6239	NUT, LOCK, 5/8 NC	$2.31
44	692	WASHER, FLAT, 5/8 STD ZP	$1.72
45	10635	WASHER, CUP 5/8 X 1-3/4 X 14GA	$2.74
46	10718	HHCS 5/8 NC X 1-1/2 HTNYLK LT	$20.22

Ref: 1 Part #: 23903 Price: $217.89

Item: ASY-SPINDLE CCW RM59

QTY:

Ref: 2 Part #: 31359 Price: Call for price

Item: CCW 20-1/4 inch High lift blade (Standard)

QTY:

Ref: 2 Part #: 25997 Price: Call for price

Item: CCW 20-1/4 inch Low-suction blade (See note 1)

QTY:

Ref: 3 Part #: 4110 Price: $23.87

Item: WSHR SHOULDER

QTY:

Ref: 4 Part #: 3761 Price: $208.50

Item: ASY-SPINDLE L59

QTY:

Ref: 5 Part #: 31315 Price: $47.12

Item: RM59-2 SIDE SKID

QTY:

Ref: 6 Part #: 29159RP Price: $51.39

Item: BK 3.6H SHEAVE

QTY:

Ref: 7 Part #: 4227 Price: $51.26

Item: BSHG H 3/4 STRT W/BOLTS

QTY:

Ref: 8 Part #: 33612 Price: $106.24

Item: RM59-3 RT BELT SHIELD

QTY:

Ref: 9 Part #: 33613 Price: $94.12

Item: RM59-3 LT BELT SHIELD

QTY:

Ref: 10 Part #: 4336 Price: $81.23

Item: V GROOVE IDLR W BRG

QTY:

Ref: 11 Part #: 6095 Price: $33.79

Item: BRG-BALL .626 ID X 1.85 OD

QTY:

Ref: 12 Part #: 4336 Price: $81.23

Item: V GROOVE IDLR W BRG

QTY:

Ref: 13 Part #: 1019624 Price: $187.56

Item: DECAL SET, CMPL RM MOWERS

QTY:

Ref: 14 Part #: 20669 Price: $38.26

Item: WRENCH SPINDLE/BLADE

QTY:

Ref: 15 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 16 Part #: 29718 Price: $22.09

Item: V-BELT GUIDE

QTY:

Ref: 30 Part #: 3885 Price: $3.74

Item: 3/16 X 3/16 X 1-1/4 KEY

QTY:

Ref: 31 Part #: 1985 Price: $1.64

Item: WASHER, LOCK 1/4

QTY:

Ref: 32 Part #: 10378 Price: $0.99

Item: BOLT, HEX 1/4NC X 1 GR5

QTY:

Ref: 33 Part #: 835 Price: $1.72

Item: NUT, HEX 3/8 NC ZP

QTY:

Ref: 34 Part #: 838 Price: $1.44

Item: WASHER, LOCK, 3/8 ZP

QTY:

Ref: 35 Part #: 565 Price: $1.72

Item: WASHER, FLAT 3/8

QTY:

Ref: 36 Part #: 7701 Price: Call for price

Item: 3/8 NC x 1 Plow bolt (See note 8)

QTY:

Ref: 37 Part #: 14350 Price: $1.72

Item: NUT, LOCK FLANGE 3/8 NC

QTY:

Ref: 38 Part #: 6697 Price: $1.72

Item: BOLT, CARRIAGE 3/8 NC X 1 GR5 ZP

QTY:

Ref: 39 Part #: 4119 Price: $1.90

Item: BOLT, HEX 1/2 NF X 1 GR5

QTY:

Ref: 40 Part #: 855 Price: $1.44

Item: WASHER, LOCK, 1/2 ZP

QTY:

Ref: 41 Part #: 3632 Price: $1.44

Item: WASHER, FLAT, 5/8 SAE ZP

QTY:

Ref: 42 Part #: 33660 Price: $2.84

Item: BOLT CRG 5/8 NC X 2-1/4 GR5

QTY:

Ref: 43 Part #: 6239 Price: $2.31

Item: NUT, LOCK, 5/8 NC

QTY:

Ref: 44 Part #: 692 Price: $1.72

Item: WASHER, FLAT, 5/8 STD ZP

QTY:

Ref: 45 Part #: 10635 Price: $2.74

Item: WASHER, CUP 5/8 X 1-3/4 X 14GA

QTY:

Ref: 46 Part #: 10718 Price: $20.22

Item: HHCS 5/8 NC X 1-1/2 HTNYLK LT

QTY:

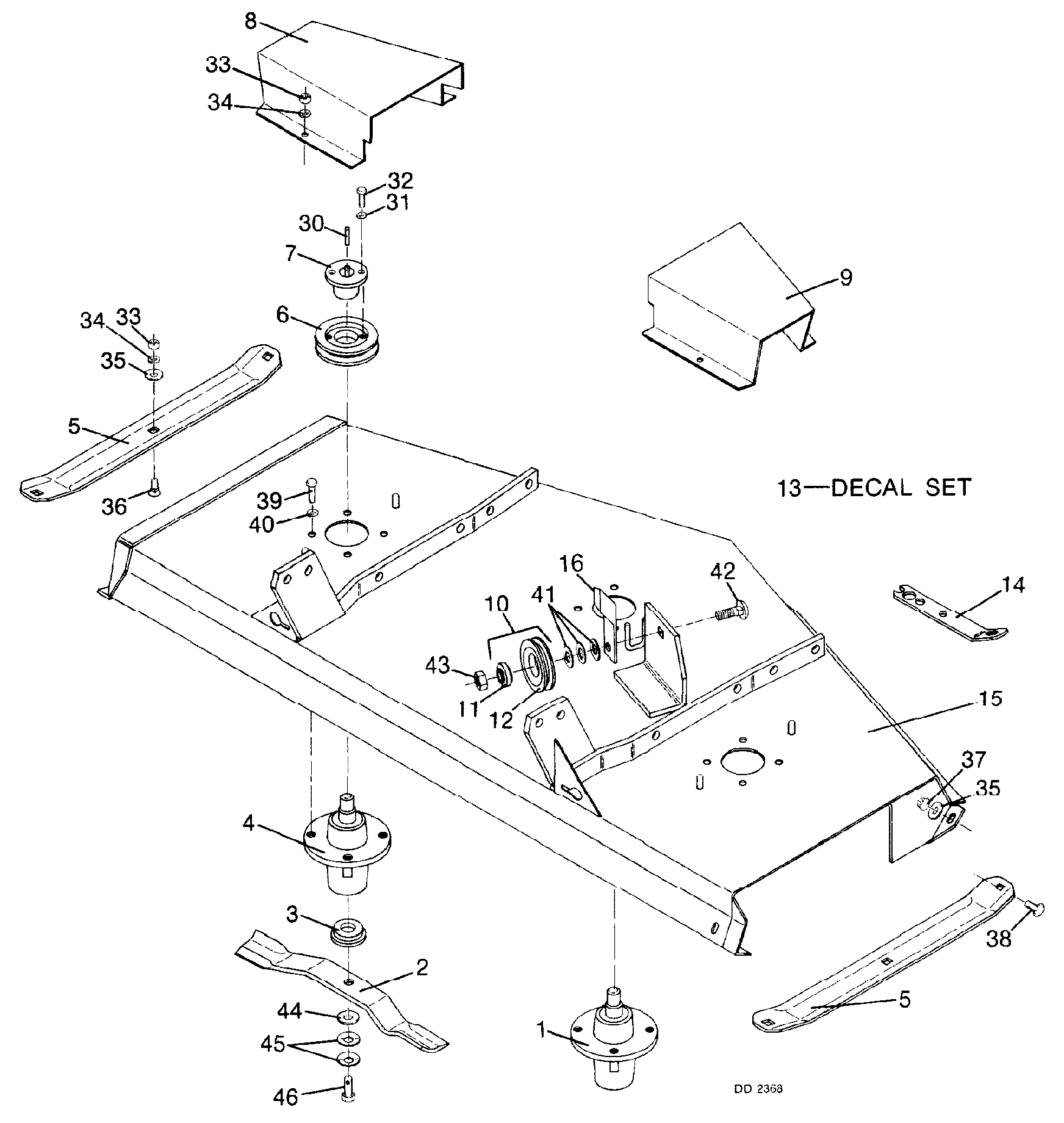

WOODS RM59 3 SN 75000 & UP Main Frame Assembly
