Ref	Part #	Item	Price
80	23900	CAT 1 MTG PIN 5-1/4 LONG	$15.08
81	3282	3/8 X 1-1/2 CLINCH PIN	$3.74
83	23976	Drive shaft complete	Call for price
84	24031	BSHG H 1- 3/8 STRT BORE	$39.93
85	23169	1 BK H10.9PDSHEAVE KEYED	$337.51
86	23970	Drive spindle assembly	Call for price
87	3886	1/4 X 1/4 X 1-1/4 KEY	$4.58
88		WDS-117	$0.99
89	23963	A-frame bar	Call for price
90	23962	Diagonal brace	Call for price
91	23884	SLV 1/2 X 3/4 X 3/8 HT	$74.41
92	23880	RM59MTG FRM TOP PVT LINK	$34.72
93	23964	Top channel	Call for price
94	23865	Spindle support assembly	Call for price
95	26530	RM59SPDL SPRT UPR SHIELD	$231.78
96	26525	RM59SPDL SUPRTLWR SHIELD	$50.40
100	1266	PIN, COTTER 3/16 X 1-1/2	$1.44
101	2452	3/16 x 2-1/2 Cotter pin	Call for price
104	2457	BOLT, HEX, 1/4NC X 3/4, GR5	$1.19
105	11880	5/16X 1-3/4 SPIROL PIN	$3.54
106	4358	HHCS 1/2 NF X 1-1/4 GR5	$1.90
107	6100	BOLT, HEX 1/2 NC X 1-1/4 GR5 ZP	$2.52
109	1637	HHCS, 1/2 NC X 3-1/2 GR5 ZP	$3.31
110	3598	WASHER, FLAT, 1/2 SAE ZP	$1.90
111	855	WASHER, LOCK, 1/2 ZP	$1.44
112	11900	NUT, LOCK FLANGE 1/2 NC	$1.90
113	23883	WSHR 1/2ID 1-1/2OD 1/2THICK	$16.18
114	153	3/4 NC Castle nut	Call for price
115	W30036	BOLT, HEX 5/16 NC X 3/4 SELF TAPPING	$1.19

Ref: 80 Part #: 23900 Price: $15.08

Item: CAT 1 MTG PIN 5-1/4 LONG

QTY:

Ref: 81 Part #: 3282 Price: $3.74

Item: 3/8 X 1-1/2 CLINCH PIN

QTY:

Ref: 83 Part #: 23976 Price: Call for price

Item: Drive shaft complete

QTY:

Ref: 84 Part #: 24031 Price: $39.93

Item: BSHG H 1- 3/8 STRT BORE

QTY:

Ref: 85 Part #: 23169 Price: $337.51

Item: 1 BK H10.9PDSHEAVE KEYED

QTY:

Ref: 86 Part #: 23970 Price: Call for price

Item: Drive spindle assembly

QTY:

Ref: 87 Part #: 3886 Price: $4.58

Item: 1/4 X 1/4 X 1-1/4 KEY

QTY:

Ref: 88 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 89 Part #: 23963 Price: Call for price

Item: A-frame bar

QTY:

Ref: 90 Part #: 23962 Price: Call for price

Item: Diagonal brace

QTY:

Ref: 91 Part #: 23884 Price: $74.41

Item: SLV 1/2 X 3/4 X 3/8 HT

QTY:

Ref: 92 Part #: 23880 Price: $34.72

Item: RM59MTG FRM TOP PVT LINK

QTY:

Ref: 93 Part #: 23964 Price: Call for price

Item: Top channel

QTY:

Ref: 94 Part #: 23865 Price: Call for price

Item: Spindle support assembly

QTY:

Ref: 95 Part #: 26530 Price: $231.78

Item: RM59SPDL SPRT UPR SHIELD

QTY:

Ref: 96 Part #: 26525 Price: $50.40

Item: RM59SPDL SUPRTLWR SHIELD

QTY:

Ref: 100 Part #: 1266 Price: $1.44

Item: PIN, COTTER 3/16 X 1-1/2

QTY:

Ref: 101 Part #: 2452 Price: Call for price

Item: 3/16 x 2-1/2 Cotter pin

QTY:

Ref: 104 Part #: 2457 Price: $1.19

Item: BOLT, HEX, 1/4NC X 3/4, GR5

QTY:

Ref: 105 Part #: 11880 Price: $3.54

Item: 5/16X 1-3/4 SPIROL PIN

QTY:

Ref: 106 Part #: 4358 Price: $1.90

Item: HHCS 1/2 NF X 1-1/4 GR5

QTY:

Ref: 107 Part #: 6100 Price: $2.52

Item: BOLT, HEX 1/2 NC X 1-1/4 GR5 ZP

QTY:

Ref: 109 Part #: 1637 Price: $3.31

Item: HHCS, 1/2 NC X 3-1/2 GR5 ZP

QTY:

Ref: 110 Part #: 3598 Price: $1.90

Item: WASHER, FLAT, 1/2 SAE ZP

QTY:

Ref: 111 Part #: 855 Price: $1.44

Item: WASHER, LOCK, 1/2 ZP

QTY:

Ref: 112 Part #: 11900 Price: $1.90

Item: NUT, LOCK FLANGE 1/2 NC

QTY:

Ref: 113 Part #: 23883 Price: $16.18

Item: WSHR 1/2ID 1-1/2OD 1/2THICK

QTY:

Ref: 114 Part #: 153 Price: Call for price

Item: 3/4 NC Castle nut

QTY:

Ref: 115 Part #: W30036 Price: $1.19

Item: BOLT, HEX 5/16 NC X 3/4 SELF TAPPING

QTY:

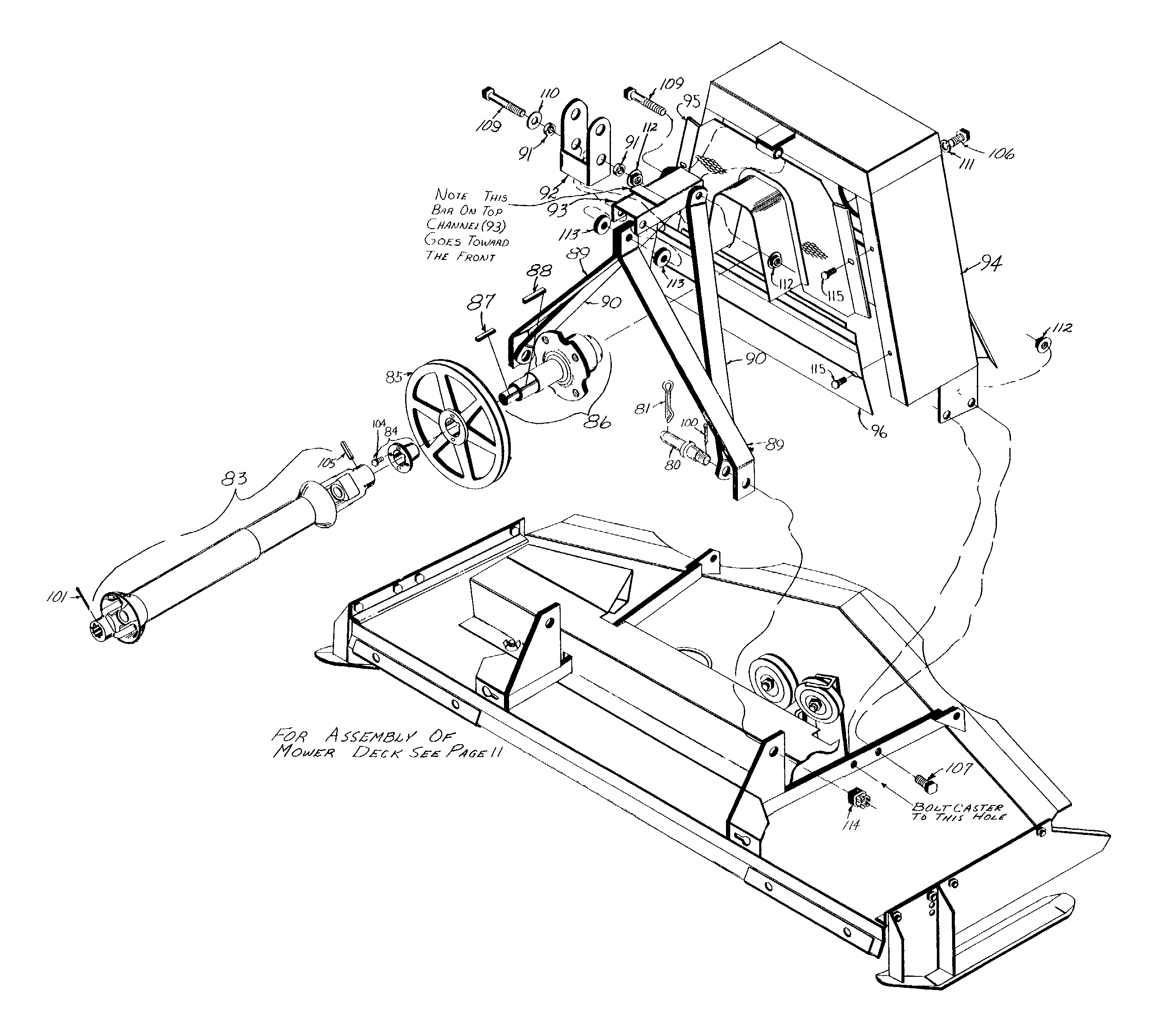

WOODS RM59K 1 Support Frame Assembly
