Ref	Part #	Item	Price
50	3253	SLV, .88 X 1.10 X1.75	$22.80
51	7049	CTGY 1 MTG PIN 5-3/4LONG	$21.29
51	12275	CTGY 2 MTG PIN 6 LONG	$36.78
52	3282	3/8 X 1-1/2 CLINCH PIN	$3.74
53	24575	RM90ETC CHECK CHAIN BRKT	$14.17
54	24724	5/16PROOF COIL CHAIN40IN	$25.05
55	5278	RING SNAP .048 X 2-1/4	$2.74
56		WDS-117	$0.99
57		WDS-117	$0.99
58		WDS-117	$0.99
59	13557	BSHG P1 1-3/8 STRT BORE	$51.10
60	W7276	7/16X 2-1/2 SPIROL PIN	$8.83
61	24100	Drive sheave	$234.70
62	24559	Diagonal brace	$154.20
63	W24560	RM90 ETC FRT A FRM BAR	$183.86
64	23884	SLV 1/2 X 3/4 X 3/8 HT	$74.41
65	23880	RM59MTG FRM TOP PVT LINK	$34.72
66	1591	PIN CLV 3/4 X 4-3/8	$18.65
67	7372	SLV 25/32 X 1 X 2	$8.67
68	24561	RM90MTG FRM TOP CHNL ASY	$120.32
69		WDS-117	$0.99
70	23875	1/4 x 1/4 x 4-1/4 Key	Call for price
71	31650	Drive spindle support assembly	Call for price
72	24573	Caster arm adjustment bracket	Call for price
73	31777	Caster arm assembly with bushings	Call for price
74	24589	WSHR RM90ETC CSTR WH CAP	$9.77
75	24588	1-1/4X1-7/8X3/8 FELTSEAL	$8.36
76	1972	FITTING, GREASE ZERK 1/4-28	$2.93
77	24864	Bearing end cap	Call for price
78	24865	3/4 STRT ROLLER BRG	$43.97
79	24383	SLV 1/2 X 3/4 X 5-3/32 HT	$24.77
80	9749	4X12 NOTAT W-3/4TPRD BRG	$307.06
81	21022	PIN, ROLL 1/4 X 2	$2.52
82	24570	ASY, RM90 ETC CSTR YOKE	$194.52
83	7112	Category 2 hitch bushing adapter kit (See note 10)	Call for price
84	13010	Cat. 2 hitch mounting pin kit (See note 11)	Call for price
85	24167	SLV 3/4WA X 1-1/8 X 7/16	$14.84
86	5624	SEAL 1.125 X 1.78 X .47	$6.42
87	2304	BRG-CONE, LM11949	$18.74
88	2306	BRG-CUP, LM11910	$11.43
89	27051	SLV 1/2 X 3/4 X 4-1/2 HT	$12.74
90	27052RP	SLV 3/4 X 1-1/8 X .92	$11.43
91		WDS-117	$0.99
92		WDS-117	$0.99
93	5604	Tire	Call for price
94	W26540	RM306SPD SUPRT UPR SHLD	$218.91
95	26535	RM306SPDL SPRT LWR SHLD	$87.25
96	7142	1/4 X 1/4 X 2 KEY	$5.90
97	W24549	5/16 X 5/16 X 1-5/8 KEY	$4.05
98	9749	4X12 NOTAT W-3/4TPRD BRG	$307.06
99	31780	BUSHING, 1-1/4 X 1-1/2 X1-1/2BR	$14.13
100	1266	PIN, COTTER 3/16 X 1-1/2	$1.44
101	1426	1/4 x 3 Cotter pin (See note 16)	Call for price
102	14562	BOLT, HEX 5/16 NC X 1 GR5	$1.72
103	10378	BOLT, HEX 1/4NC X 1 GR5	$0.99
104	1288	7/16 x 1-3/8 x 1/4 Flat washer (See note 19)	$7.62
105	W13921	NUT LOCK 7/16 NC	$1.72
106	4358	HHCS 1/2 NF X 1-1/4 GR5	$1.90
107	3699	BOLT, HEX 1/2 NC X 2 GR5	$2.31
108	5621	BOLT, HEX 1/2 NC X 2-3/4 GR5	$2.52
109	1637	HHCS, 1/2 NC X 3-1/2 GR5 ZP	$3.31
110	3508	BOLT, HEX 1/2 NC X 4-1/2 GR5 ZP	$5.40
111	22205	HHCS, 1/2 NC X 6-1/2 GR5	$4.89
112	3598	WASHER, FLAT, 1/2 SAE ZP	$1.90
113	11900	NUT, LOCK FLANGE 1/2 NC	$1.90
114	855	WASHER, LOCK, 1/2 ZP	$1.44
115	2377	BOLT, HEX 3/4 NC X 6 GR5 ZP	$8.36
116	5849	NUT, SLOTTED, 3/4-16 X 21/32, GR5	$3.13
116	13012	NUT CASTLE 7/8 NF HEX	$13.88
117	2371	NUT, LOCK, 3/4 NC ZP	$3.23
118	W8424	WASHER, SPECIAL 3/4 X 2 X 3/8	$6.87
118	13011	WSHR 7/8ID 2-3/8OD 3/16THICK	$1.55
119	23609	WSHR 1-1/4 X 2-3/8 X 3/16 FLAT	$14.45
120	4548	BOLT, HEX 5/8 NC X 1-3/4 GR5 ZP	$2.31
121	6239	NUT, LOCK, 5/8 NC	$2.31
122	25474	HHCS 1/2 NC X 2-1/4 GR5 ZP	$2.31
123	13859	NUT JAM 1/2 NC	$1.44
124	1093	NUT, HEX HEAVY 1/2 NC ZP	$1.54
125	5651	5/16 NC x 5/8 Hex head cap screw GR5 (See note 42)	Call for price
126	4378	WASHER, FLAT SAE 5/16	$0.99
127	4529	NUT, HEX 5/16 NC	$2.13
128	W30036	BOLT, HEX 5/16 NC X 3/4 SELF TAPPING	$1.19

Ref: 50 Part #: 3253 Price: $22.80

Item: SLV, .88 X 1.10 X1.75

QTY:

Ref: 51 Part #: 7049 Price: $21.29

Item: CTGY 1 MTG PIN 5-3/4LONG

QTY:

Ref: 51 Part #: 12275 Price: $36.78

Item: CTGY 2 MTG PIN 6 LONG

QTY:

Ref: 52 Part #: 3282 Price: $3.74

Item: 3/8 X 1-1/2 CLINCH PIN

QTY:

Ref: 53 Part #: 24575 Price: $14.17

Item: RM90ETC CHECK CHAIN BRKT

QTY:

Ref: 54 Part #: 24724 Price: $25.05

Item: 5/16PROOF COIL CHAIN40IN

QTY:

Ref: 55 Part #: 5278 Price: $2.74

Item: RING SNAP .048 X 2-1/4

QTY:

Ref: 56 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 57 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 58 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 59 Part #: 13557 Price: $51.10

Item: BSHG P1 1-3/8 STRT BORE

QTY:

Ref: 60 Part #: W7276 Price: $8.83

Item: 7/16X 2-1/2 SPIROL PIN

QTY:

Ref: 61 Part #: 24100 Price: $234.70

Item: Drive sheave

QTY:

Ref: 62 Part #: 24559 Price: $154.20

Item: Diagonal brace

QTY:

Ref: 63 Part #: W24560 Price: $183.86

Item: RM90 ETC FRT A FRM BAR

QTY:

Ref: 64 Part #: 23884 Price: $74.41

Item: SLV 1/2 X 3/4 X 3/8 HT

QTY:

Ref: 65 Part #: 23880 Price: $34.72

Item: RM59MTG FRM TOP PVT LINK

QTY:

Ref: 66 Part #: 1591 Price: $18.65

Item: PIN CLV 3/4 X 4-3/8

QTY:

Ref: 67 Part #: 7372 Price: $8.67

Item: SLV 25/32 X 1 X 2

QTY:

Ref: 68 Part #: 24561 Price: $120.32

Item: RM90MTG FRM TOP CHNL ASY

QTY:

Ref: 69 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 70 Part #: 23875 Price: Call for price

Item: 1/4 x 1/4 x 4-1/4 Key

QTY:

Ref: 71 Part #: 31650 Price: Call for price

Item: Drive spindle support assembly

QTY:

Ref: 72 Part #: 24573 Price: Call for price

Item: Caster arm adjustment bracket

QTY:

Ref: 73 Part #: 31777 Price: Call for price

Item: Caster arm assembly with bushings

QTY:

Ref: 74 Part #: 24589 Price: $9.77

Item: WSHR RM90ETC CSTR WH CAP

QTY:

Ref: 75 Part #: 24588 Price: $8.36

Item: 1-1/4X1-7/8X3/8 FELTSEAL

QTY:

Ref: 76 Part #: 1972 Price: $2.93

Item: FITTING, GREASE ZERK 1/4-28

QTY:

Ref: 77 Part #: 24864 Price: Call for price

Item: Bearing end cap

QTY:

Ref: 78 Part #: 24865 Price: $43.97

Item: 3/4 STRT ROLLER BRG

QTY:

Ref: 79 Part #: 24383 Price: $24.77

Item: SLV 1/2 X 3/4 X 5-3/32 HT

QTY:

Ref: 80 Part #: 9749 Price: $307.06

Item: 4X12 NOTAT W-3/4TPRD BRG

QTY:

Ref: 81 Part #: 21022 Price: $2.52

Item: PIN, ROLL 1/4 X 2

QTY:

Ref: 82 Part #: 24570 Price: $194.52

Item: ASY, RM90 ETC CSTR YOKE

QTY:

Ref: 83 Part #: 7112 Price: Call for price

Item: Category 2 hitch bushing adapter kit (See note 10)

QTY:

Ref: 84 Part #: 13010 Price: Call for price

Item: Cat. 2 hitch mounting pin kit (See note 11)

QTY:

Ref: 85 Part #: 24167 Price: $14.84

Item: SLV 3/4WA X 1-1/8 X 7/16

QTY:

Ref: 86 Part #: 5624 Price: $6.42

Item: SEAL 1.125 X 1.78 X .47

QTY:

Ref: 87 Part #: 2304 Price: $18.74

Item: BRG-CONE, LM11949

QTY:

Ref: 88 Part #: 2306 Price: $11.43

Item: BRG-CUP, LM11910

QTY:

Ref: 89 Part #: 27051 Price: $12.74

Item: SLV 1/2 X 3/4 X 4-1/2 HT

QTY:

Ref: 90 Part #: 27052RP Price: $11.43

Item: SLV 3/4 X 1-1/8 X .92

QTY:

Ref: 91 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 92 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 93 Part #: 5604 Price: Call for price

Item: Tire

QTY:

Ref: 94 Part #: W26540 Price: $218.91

Item: RM306SPD SUPRT UPR SHLD

QTY:

Ref: 95 Part #: 26535 Price: $87.25

Item: RM306SPDL SPRT LWR SHLD

QTY:

Ref: 96 Part #: 7142 Price: $5.90

Item: 1/4 X 1/4 X 2 KEY

QTY:

Ref: 97 Part #: W24549 Price: $4.05

Item: 5/16 X 5/16 X 1-5/8 KEY

QTY:

Ref: 98 Part #: 9749 Price: $307.06

Item: 4X12 NOTAT W-3/4TPRD BRG

QTY:

Ref: 99 Part #: 31780 Price: $14.13

Item: BUSHING, 1-1/4 X 1-1/2 X1-1/2BR

QTY:

Ref: 100 Part #: 1266 Price: $1.44

Item: PIN, COTTER 3/16 X 1-1/2

QTY:

Ref: 101 Part #: 1426 Price: Call for price

Item: 1/4 x 3 Cotter pin (See note 16)

QTY:

Ref: 102 Part #: 14562 Price: $1.72

Item: BOLT, HEX 5/16 NC X 1 GR5

QTY:

Ref: 103 Part #: 10378 Price: $0.99

Item: BOLT, HEX 1/4NC X 1 GR5

QTY:

Ref: 104 Part #: 1288 Price: $7.62

Item: 7/16 x 1-3/8 x 1/4 Flat washer (See note 19)

QTY:

Ref: 105 Part #: W13921 Price: $1.72

Item: NUT LOCK 7/16 NC

QTY:

Ref: 106 Part #: 4358 Price: $1.90

Item: HHCS 1/2 NF X 1-1/4 GR5

QTY:

Ref: 107 Part #: 3699 Price: $2.31

Item: BOLT, HEX 1/2 NC X 2 GR5

QTY:

Ref: 108 Part #: 5621 Price: $2.52

Item: BOLT, HEX 1/2 NC X 2-3/4 GR5

QTY:

Ref: 109 Part #: 1637 Price: $3.31

Item: HHCS, 1/2 NC X 3-1/2 GR5 ZP

QTY:

Ref: 110 Part #: 3508 Price: $5.40

Item: BOLT, HEX 1/2 NC X 4-1/2 GR5 ZP

QTY:

Ref: 111 Part #: 22205 Price: $4.89

Item: HHCS, 1/2 NC X 6-1/2 GR5

QTY:

Ref: 112 Part #: 3598 Price: $1.90

Item: WASHER, FLAT, 1/2 SAE ZP

QTY:

Ref: 113 Part #: 11900 Price: $1.90

Item: NUT, LOCK FLANGE 1/2 NC

QTY:

Ref: 114 Part #: 855 Price: $1.44

Item: WASHER, LOCK, 1/2 ZP

QTY:

Ref: 115 Part #: 2377 Price: $8.36

Item: BOLT, HEX 3/4 NC X 6 GR5 ZP

QTY:

Ref: 116 Part #: 5849 Price: $3.13

Item: NUT, SLOTTED, 3/4-16 X 21/32, GR5

QTY:

Ref: 116 Part #: 13012 Price: $13.88

Item: NUT CASTLE 7/8 NF HEX

QTY:

Ref: 117 Part #: 2371 Price: $3.23

Item: NUT, LOCK, 3/4 NC ZP

QTY:

Ref: 118 Part #: W8424 Price: $6.87

Item: WASHER, SPECIAL 3/4 X 2 X 3/8

QTY:

Ref: 118 Part #: 13011 Price: $1.55

Item: WSHR 7/8ID 2-3/8OD 3/16THICK

QTY:

Ref: 119 Part #: 23609 Price: $14.45

Item: WSHR 1-1/4 X 2-3/8 X 3/16 FLAT

QTY:

Ref: 120 Part #: 4548 Price: $2.31

Item: BOLT, HEX 5/8 NC X 1-3/4 GR5 ZP

QTY:

Ref: 121 Part #: 6239 Price: $2.31

Item: NUT, LOCK, 5/8 NC

QTY:

Ref: 122 Part #: 25474 Price: $2.31

Item: HHCS 1/2 NC X 2-1/4 GR5 ZP

QTY:

Ref: 123 Part #: 13859 Price: $1.44

Item: NUT JAM 1/2 NC

QTY:

Ref: 124 Part #: 1093 Price: $1.54

Item: NUT, HEX HEAVY 1/2 NC ZP

QTY:

Ref: 125 Part #: 5651 Price: Call for price

Item: 5/16 NC x 5/8 Hex head cap screw GR5 (See note 42)

QTY:

Ref: 126 Part #: 4378 Price: $0.99

Item: WASHER, FLAT SAE 5/16

QTY:

Ref: 127 Part #: 4529 Price: $2.13

Item: NUT, HEX 5/16 NC

QTY:

Ref: 128 Part #: W30036 Price: $1.19

Item: BOLT, HEX 5/16 NC X 3/4 SELF TAPPING

QTY:

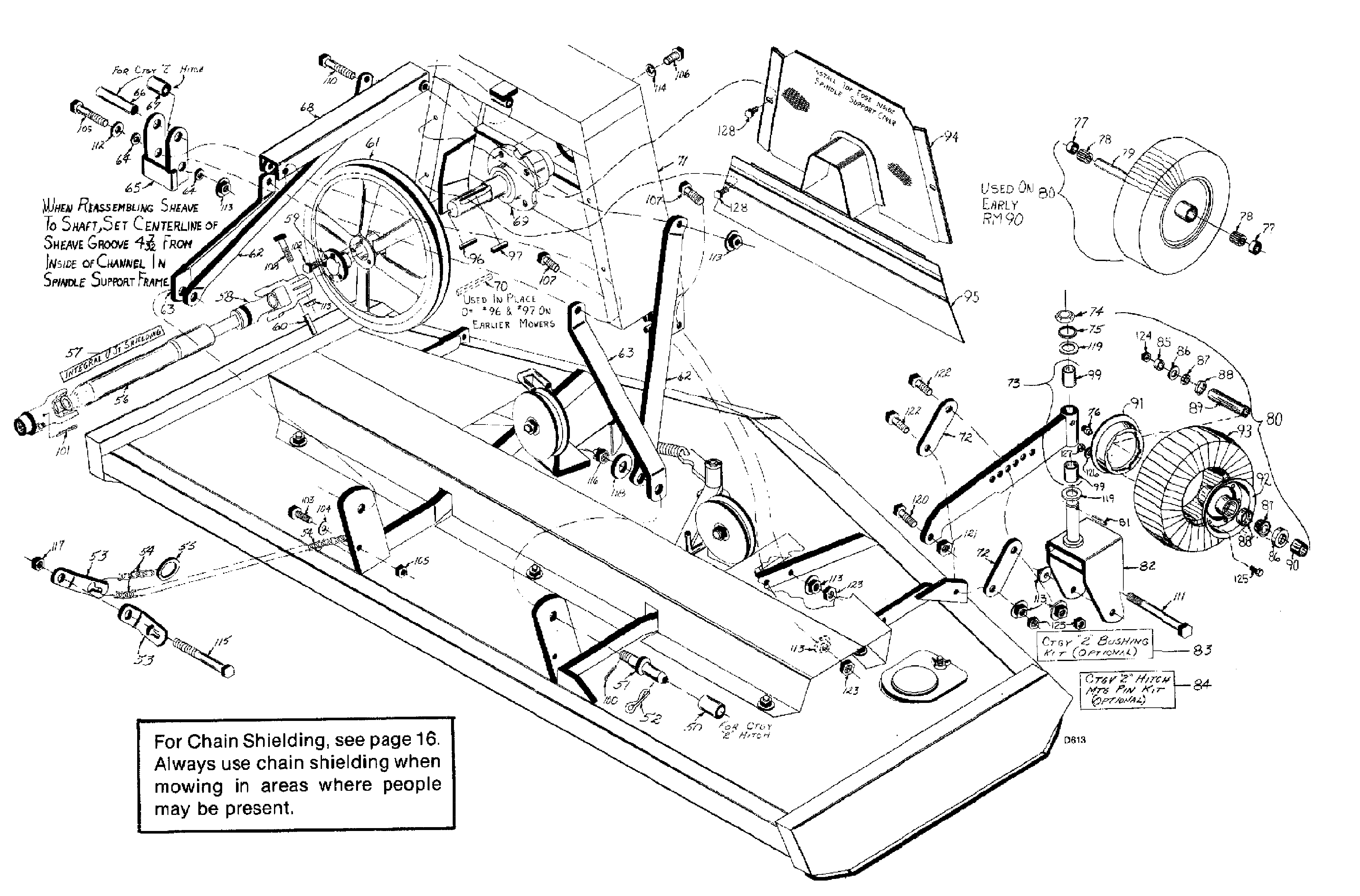

WOODS RM90 2 (1980 91) Spindle Support Assembly
