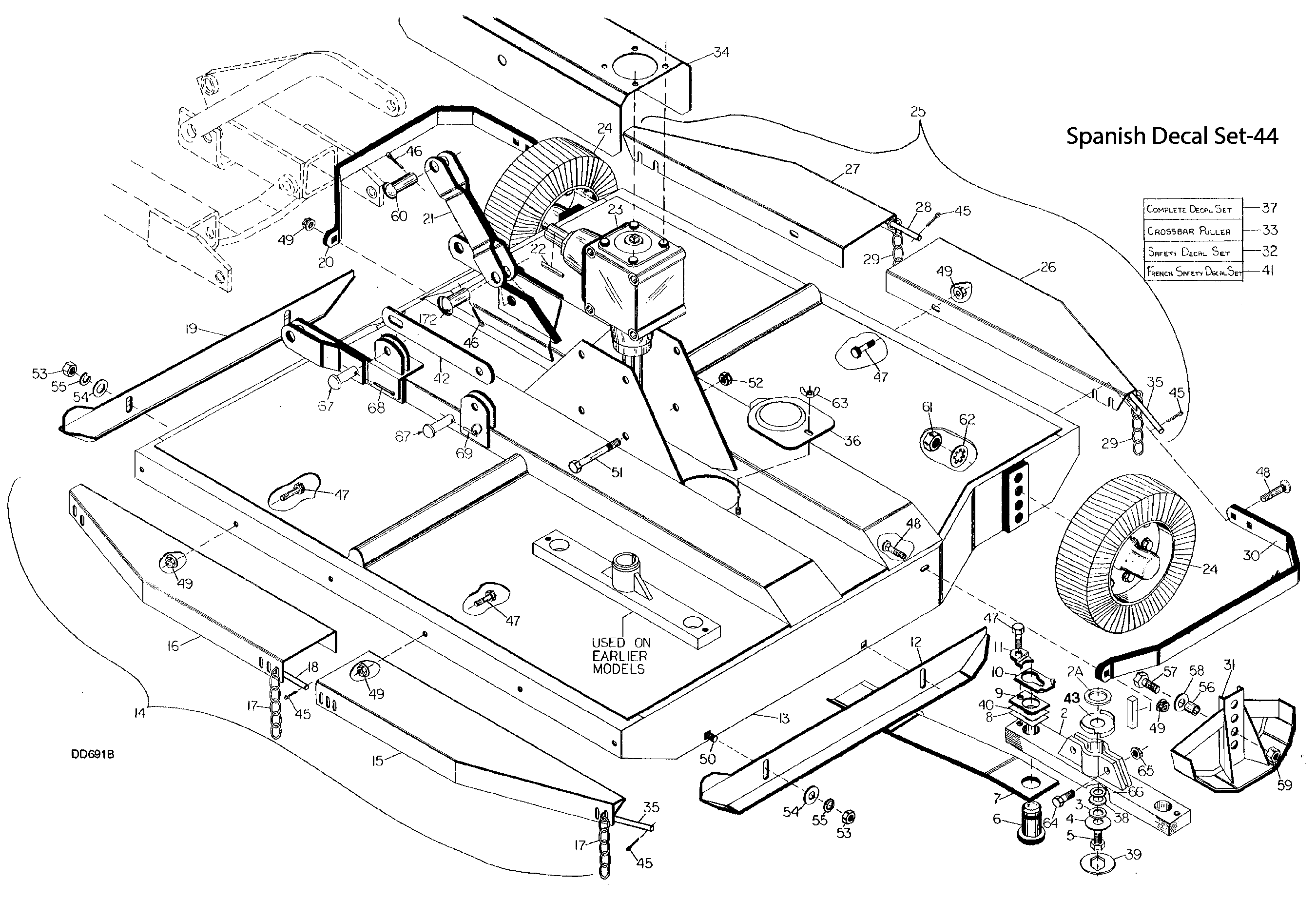

    WOODS S105Q 3 DITCHBANK Cutter Head Section Assembly

    WOODS >woods-s105q-3-ditchbank-ditchbank-mower-parts-cutter-head-section-assembly
    Ref: 1  Part #: 11041  Price: Call for price

    Item: 3/8 x 3/8 x 2-7/8 Key

    QTY:
    Ref: 2  Part #: 29269  Price: $400.20

    Item: 1-5/8 CLMP CROSS BAR CMP

    QTY:
    Ref: 2A  Part #: 29272  Price: $14.17

    Item: WASHER, 1-5/8ID 2-1/4OD 7GATHICK

    QTY:
    Ref: 3  Part #: 11204  Price: $3.80

    Item: SHIM 13/16ID .010THICK

    QTY:
    Ref: 4  Part #: W7828  Price: $11.72

    Item: WASHER, 3/4 X 2-1/2 X 1/4 HT FLT

    QTY:
    Ref: 5  Part #: 4616  Price: $9.63

    Item: HHCS 3/4 NC X 1-1/2 GR5 ZP

    QTY:
    Ref: 6  Part #: 32602  Price: $28.82

    Item: PIN, BLADE 2.39

    QTY:
    Ref: 7  Part #: 24771KT  Price: $178.73

    Item: KIT, BLADE, 24771 STD

    QTY:
    Ref: 7  Part #: 17190KT  Price: $167.68

    Item: KIT, BLADE, 17190 STD

    QTY:
    Ref: 7  Part #: 8820KT  Price: $212.56

    Item: BLADE KIT, 8820 STD

    QTY:
    Ref: 7  Part #: 8830KT  Price: $240.76

    Item: KIT, BLADE, 8830 STD

    QTY:
    Ref: 8  Part #: 10520RP  Price: $6.98

    Item: 18GA 1-1/2 BLD PIN SHIM

    QTY:
    Ref: 9  Part #: 5523RP  Price: $4.61

    Item: SPACER

    QTY:
    Ref: 10  Part #: 32603  Price: $11.23

    Item: PLATE, KEYHOLE SPECIAL

    QTY:
    Ref: 11  Part #: 32604RP  Price: $4.39

    Item: BLADE PIN LOCK CLIP SPEC

    QTY:
    Ref: 12  Part #: 1014151  Price: $168.32

    Item: S105 SIDE SKID

    QTY:
    Ref: 12  Part #: 22670RP  Price: $152.97

    Item: HS106 REAR SKID

    QTY:
    Ref: 13  Part #: 9695  Price: Call for price

    Item: S105-3 Frame (See note 4)

    QTY:
    Ref: 13  Part #: 9696  Price: Call for price

    Item: S106-3 Frame (See note 5)

    QTY:
    Ref: 14  Part #: 26976  Price: Call for price

    Item: S105 Rear chain shield bundle -or-

    QTY:
    Ref: 14  Part #: 26983  Price: Call for price

    Item: S106 Rear chain shield bundle

    QTY:
    Ref: 15  Part #: 26974RP  Price: $162.20

    Item: HS105 RT REAR CHAIN PLT

    QTY:
    Ref: 15  Part #: 26986RP  Price: $173.58

    Item: HS106 RT REAR CHAIN PLT

    QTY:
    Ref: 16  Part #: 26975RP  Price: $162.20

    Item: HS105 LT REAR CHAIN PLT

    QTY:
    Ref: 16  Part #: 26987RP  Price: $142.45

    Item: HS106 LT REAR CHAIN PLT

    QTY:
    Ref: 17  Part #: 5498  Price: $7.86

    Item: CHAIN, 5/16, 6 LINK

    QTY:
    Ref: 17  Part #: 5498  Price: $7.86

    Item: CHAIN, 5/16, 6 LINK

    QTY:
    Ref: 18  Part #: 23733  Price: $11.97

    Item: 3/8X17-1/2 PIN 14 CHAIN

    QTY:
    Ref: 18  Part #: 10150  Price: $21.60

    Item: 3/8 X 22-1/4 LONG PIN

    QTY:
    Ref: 19  Part #: 1014151  Price: $168.32

    Item: S105 SIDE SKID

    QTY:
    Ref: 19  Part #: 22670RP  Price: $152.97

    Item: HS106 REAR SKID

    QTY:
    Ref: 20  Part #: 25773RP  Price: $142.57

    Item: S105-3ETC LEFT WHL GUARD

    QTY:
    Ref: 21  Part #: 12412  Price: $67.04

    Item: S105ETC CLEVIS LIFT LINK

    QTY:
    Ref: 22  Part #: 7142  Price: $5.90

    Item: 1/4 X 1/4 X 2 KEY

    QTY:
    Ref: 23  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 24  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 25  Part #: 26967  Price: Call for price

    Item: S105 Front chain shielding bundle -or-

    QTY:
    Ref: 25  Part #: 26977  Price: Call for price

    Item: S106 Front chain shielding bundle

    QTY:
    Ref: 26  Part #: 26970RP  Price: $137.46

    Item: HS105 RT FRT CHAIN PLT

    QTY:
    Ref: 26  Part #: 26980RP  Price: $158.15

    Item: HS106 RT FRT CHAIN PLT

    QTY:
    Ref: 27  Part #: 26971RP  Price: $137.46

    Item: HS105 LT FRT CHAIN PLT

    QTY:
    Ref: 27  Part #: 26981  Price: $344.58

    Item: HS106 LT FRT CHAIN PLT

    QTY:
    Ref: 28  Part #: 3783  Price: $18.33

    Item: 3/8 X 14-3/4 LONG PIN

    QTY:
    Ref: 28  Part #: 26982  Price: $26.41

    Item: 3/8 X 21-1/2 PIN, 17CHAIN

    QTY:
    Ref: 29  Part #: 5498  Price: $7.86

    Item: CHAIN, 5/16, 6 LINK

    QTY:
    Ref: 29  Part #: 5498  Price: $7.86

    Item: CHAIN, 5/16, 6 LINK

    QTY:
    Ref: 30  Part #: 25772RP  Price: $142.57

    Item: S105-3 ETC RT WHL GUARD

    QTY:
    Ref: 31  Part #: 25800  Price: $192.75

    Item: S105-3ETC FRT CORNR SKID

    QTY:
    Ref: 32  Part #: W31895  Price: $79.60

    Item: DCL SET SFTY SIDEMOUNT

    QTY:
    Ref: 33  Part #: 8811  Price: $1,061.55

    Item: BLADE CARRIER, KIT CROSSBAR PULLER

    QTY:
    Ref: 34  Part #: 26651RP  Price: $155.45

    Item: S105-3 SIDE DRIVE SHLD

    QTY:
    Ref: 34  Part #: 26652RP  Price: $182.56

    Item: S106-3 SIDE DRIVE SHLD

    QTY:
    Ref: 35  Part #: 3783  Price: $18.33

    Item: 3/8 X 14-3/4 LONG PIN

    QTY:
    Ref: 36  Part #: 3444RP  Price: $22.22

    Item: ACCESS HOLE COVER

    QTY:
    Ref: 37  Part #: 1019633  Price: $263.90

    Item: DECAL SET, CMPL S - HS CUTTER

    QTY:
    Ref: 38  Part #: 11036  Price: $3.23

    Item: WSHR 3/4X1-1/2X18GA SHIM

    QTY:
    Ref: 39  Part #: 5794  Price: $29.40

    Item: CRSBAR SAFETY LOCK KIT

    QTY:
    Ref: 40  Part #: 13946RP  Price: $3.74

    Item: 20 GA 1-1/2 BLD PIN SHIM

    QTY:
    Ref: 41  Part #: 51895  Price: $90.20

    Item: French safety decal set

    QTY:
    Ref: 42  Part #: 19668  Price: $25.74

    Item: LNK .38 X 2.0 X 16.00

    QTY:
    Ref: 43  Part #: 15831RP  Price: $19.09

    Item: WSHR ANTI-WRAP 3.68 DIA

    QTY:
    Ref: 44  Part #: 1036795  Price: $1,040.21

    Item: DCL SET SPANISH SFTY S105/106

    QTY:
    Ref: 45  Part #: 1256  Price: $1.19

    Item: 3/16 X 1, COTTER PIN

    QTY:
    Ref: 46  Part #: 1285  Price: $1.44

    Item: PIN, COTTER 1/4 X 1-1/2

    QTY:
    Ref: 47  Part #: 6100  Price: $2.52

    Item: BOLT, HEX 1/2 NC X 1-1/4 GR5 ZP

    QTY:
    Ref: 48  Part #: 12735  Price: $2.52

    Item: BOLT, CARRIAGE 1/2 NC X 1-3/4 HT

    QTY:
    Ref: 49  Part #: 11900  Price: $1.90

    Item: NUT, LOCK FLANGE 1/2 NC

    QTY:
    Ref: 50  Part #: 5607  Price: $2.52

    Item: BOLT, CARRIAGE 5/8 NC X 1-1/2

    QTY:
    Ref: 51  Part #: 11043  Price: $7.22

    Item: HHCS 5/8 NC X 7-1/2 GR5

    QTY:
    Ref: 52  Part #: 6239  Price: $2.31

    Item: NUT, LOCK, 5/8 NC

    QTY:
    Ref: 53  Part #: 230  Price: $1.72

    Item: NUT, HEX, 5/8 NC PLATD

    QTY:
    Ref: 54  Part #: 692  Price: $1.72

    Item: WASHER, FLAT, 5/8 STD ZP

    QTY:
    Ref: 55  Part #: 1286  Price: $1.72

    Item: WASHER, LOCK, HEAVY ZP

    QTY:
    Ref: 56  Part #: 25806  Price: $24.75

    Item: 3/4 x 1 x 1-7/8 Sleeve

    QTY:
    Ref: 57  Part #: 13759  Price: $3.91

    Item: BOLT, HEX 3/4 NC X 2-1/4 GR5

    QTY:
    Ref: 58  Part #: 1257  Price: $2.13

    Item: WSHR 3/4 FLAT ZP

    QTY:
    Ref: 59  Part #: 2371  Price: $3.23

    Item: NUT, LOCK, 3/4 NC ZP

    QTY:
    Ref: 60  Part #: W8341  Price: $41.46

    Item: PIN CLV 1 X 2-1/2 HT

    QTY:
    Ref: 61  Part #: 3626  Price: $3.31

    Item: NUT HEX 1-14 UNS

    QTY:
    Ref: 62  Part #: 3689  Price: $1.15

    Item: WASHER, LOCK, 1 STD D

    QTY:
    Ref: 63  Part #: 1287  Price: $1.72

    Item: NUT WING 3/8 NC

    QTY:
    Ref: 64  Part #: 3699  Price: $2.31

    Item: BOLT, HEX 1/2 NC X 2 GR5

    QTY:
    Ref: 65  Part #: 11900  Price: $1.90

    Item: NUT, LOCK FLANGE 1/2 NC

    QTY:
    Ref: 66  Part #: 19080  Price: $5.33

    Item: SHIM .81ID 1.57OD .07THICK

    QTY:
    Ref: 67  Part #: 4097  Price: $3.74

    Item: PIN, CLV 5/8 X 1-1/2

    QTY:
    Ref: 68  Part #: 1266  Price: $1.44

    Item: PIN, COTTER 3/16 X 1-1/2

    QTY:
    Ref: 69  Part #: 22411  Price: $3.74

    Item: PIN, KLIK 3/16 X 1
