Ref	Part #	Item	Price
1	NSS	30' Shredder Body (See note 1)	Call for price
2		WDS-117	$0.99
3	1029365RP	WELDMENT, STRUT UPRIGHT	$1,055.40
4	1029372RP	WELDMENT, STRUT CROSSMEMBER	$625.78
5	1029550RP	WELDMENT, PIVOT TUBE	$324.04
6	1029554RP	ASSY, CASTER PIVOT	$1,014.65
7	12243	59ETC CASTER YK W/AXLE	$119.49
8	1004814RP	TRANSPORT LOCK-UP	$156.43
9	29547	3X8 STD HYD CYL	$291.43
10	1012170	BEARING, 2-3/16 FLANGE	$191.57
11	1010120RP	WA, BEARING PLATE, 2-3/16	$208.97
12	1013067RP	SKID WELDMENT	$346.89
13	1003828	MANUAL TUBE, 3.50 X 3.23 X 11.86	$28.92
14	1013049	GEAR BOX,SERIES-800	$1,825.00
15	1030513	DIPSTICK, R800GB TUBE ASSY	$97.12
16	90315407	DIPSTICK, GEARBOX	$42.97
17	1012175RP	PLATE,CROSS MEMBER	$529.87
18	50030338	DRIVE, HUB,SPLINED INNER 526004	$282.51
19	900109126	O-ring, flail coupler	Call for price
20	1013114RP	UPPER MAST PLATE	$251.61
21	1019755RP	DCL, KIT, SHREDDER SAFETY	$434.61
22	20020553RP	ASSY,PIN LOWER 3PT HITCH	$50.95
22a	90029204	PIN, ROLL 5/16 X 1-5/8	$1.67
23	1016186	BUSHING, HARDENED	$70.10
24	1016187	SPACER, MAST 1.53 X 3 X .75	$68.41
25	20030151	SPACER BUSHING, MAST SPACER 1 ID	$28.97
26	20030961	SPACER,1 7/16 OD,LWR 3 512039	$25.22
27	20030960	SPACER,1 3/4 OD, SHT. 574038	$27.45
28	20030959	SPACER,1 3/4 OD,LOWER,LG574037	$36.32
29	1020013	PIN, 1.25 X 7.08	$40.96
30	90039030	GEARBOX, SNAP RING, 1-3/4 SUPERG	$28.44
31	37431	Pin, 1.0 x 6.10	$15.24
35	923	PIN, 1/4 X 1-3/4 COTTER	$1.44
36	6698	NUT LOCK 3/8 NC ZP	$1.19
37	565	WASHER, FLAT 3/8	$1.72
38	20973	BOLT, CARRIAGE 3/8 NC X 1-1/4 GR5	$1.72
39	2290	BOLT, HEX 3/8 NC X 2-1/2 GR5 ZP	$3.31
40	11900	NUT, LOCK FLANGE 1/2 NC	$1.90
41	12735	BOLT, CARRIAGE 1/2 NC X 1-3/4 HT	$2.52
42	19025	NUT, HFN 5/8 NC, LOCK	$3.31
43	1286	WASHER, LOCK, HEAVY ZP	$1.72
44	2855	BOLT, CARRIAGE 5/8 NC X 2	$3.13
45	57817	WASHER, 5/8 SAE FLAT HRDN	$0.99
46	50530313	BOLT, STUD 5/8NCX2-3/4 GR.5	$11.12
47	902	BOLT, HEX 5/8 NC X 2 GR5 ZP	$3.31
48	W302207	NUT, LOCK, FLANGE, 3/4 NC	$2.93
49	W29315	BOLT, HEX 3/4 NC X 5-1/2 GR5	$8.83
50	34278	BOLT, HEX 1 NC X 5.0 GR5 ZP	$12.43
51	34279	NUT, LOCK 1 NC	$8.52
52	832	WASHER, FLAT, 1 STD ZP	$2.13
53	27542	PIN, KLIK HT 7/16 X 11/32	$6.22
54	1032113RP	WA, HITCH P-TYPE S30CD	$1,439.11
55	19407	ASY, SAFETY CHAIN, 10,000 LB	$162.00
56	1016105	DRIVE, PTO 1-3/4 CD 2, 3PT STD 24KE	$3,006.00
56	1026555	DRIVE, 1-3/4-20 CD 3PT 30K AUTO WSLR	$3,128.00
56	1016109	DRIVE, CV 1-3/4 CD P-TYPE 24KE WSLR	$4,569.43
56	1019820	DRIVE, 1-3/4-20 CD P-T 30K AUTO WSLR	$5,755.28
57	50530834	TOP PLATE, PPI 302V	$58.86
58	50530832	CUSHION, STEEL BLOCK .5 X .75 X 1.88	$7.39
59	50530833	V PLATE, PPI 230VR	$31.70
60	90001411	BOLT, HEX 3/4 NC X 3 GR5 ZP	$3.23
61	90001537	BOLT, HEX 1 NC X 6-1/2 GR5 ZP	$12.59
62	50520433	CLEVIS HITCH KIT, SHREDDER	$124.51
63	50530831	HITCH, CAT-3 COMPLETE	$335.44
64	3689	WASHER, LOCK, 1 STD D	$1.15

Ref: 1 Part #: NSS Price: Call for price

Item: 30' Shredder Body (See note 1)

QTY:

Ref: 2 Part #: Price: $0.99

Item: WDS-117

QTY:

Ref: 3 Part #: 1029365RP Price: $1,055.40

Item: WELDMENT, STRUT UPRIGHT

QTY:

Ref: 4 Part #: 1029372RP Price: $625.78

Item: WELDMENT, STRUT CROSSMEMBER

QTY:

Ref: 5 Part #: 1029550RP Price: $324.04

Item: WELDMENT, PIVOT TUBE

QTY:

Ref: 6 Part #: 1029554RP Price: $1,014.65

Item: ASSY, CASTER PIVOT

QTY:

Ref: 7 Part #: 12243 Price: $119.49

Item: 59ETC CASTER YK W/AXLE

QTY:

Ref: 8 Part #: 1004814RP Price: $156.43

Item: TRANSPORT LOCK-UP

QTY:

Ref: 9 Part #: 29547 Price: $291.43

Item: 3X8 STD HYD CYL

QTY:

Ref: 10 Part #: 1012170 Price: $191.57

Item: BEARING, 2-3/16 FLANGE

QTY:

Ref: 11 Part #: 1010120RP Price: $208.97

Item: WA, BEARING PLATE, 2-3/16

QTY:

Ref: 12 Part #: 1013067RP Price: $346.89

Item: SKID WELDMENT

QTY:

Ref: 13 Part #: 1003828 Price: $28.92

Item: MANUAL TUBE, 3.50 X 3.23 X 11.86

QTY:

Ref: 14 Part #: 1013049 Price: $1,825.00

Item: GEAR BOX,SERIES-800

QTY:

Ref: 15 Part #: 1030513 Price: $97.12

Item: DIPSTICK, R800GB TUBE ASSY

QTY:

Ref: 16 Part #: 90315407 Price: $42.97

Item: DIPSTICK, GEARBOX

QTY:

Ref: 17 Part #: 1012175RP Price: $529.87

Item: PLATE,CROSS MEMBER

QTY:

Ref: 18 Part #: 50030338 Price: $282.51

Item: DRIVE, HUB,SPLINED INNER 526004

QTY:

Ref: 19 Part #: 900109126 Price: Call for price

Item: O-ring, flail coupler

QTY:

Ref: 20 Part #: 1013114RP Price: $251.61

Item: UPPER MAST PLATE

QTY:

Ref: 21 Part #: 1019755RP Price: $434.61

Item: DCL, KIT, SHREDDER SAFETY

QTY:

Ref: 22 Part #: 20020553RP Price: $50.95

Item: ASSY,PIN LOWER 3PT HITCH

QTY:

Ref: 22a Part #: 90029204 Price: $1.67

Item: PIN, ROLL 5/16 X 1-5/8

QTY:

Ref: 23 Part #: 1016186 Price: $70.10

Item: BUSHING, HARDENED

QTY:

Ref: 24 Part #: 1016187 Price: $68.41

Item: SPACER, MAST 1.53 X 3 X .75

QTY:

Ref: 25 Part #: 20030151 Price: $28.97

Item: SPACER BUSHING, MAST SPACER 1 ID

QTY:

Ref: 26 Part #: 20030961 Price: $25.22

Item: SPACER,1 7/16 OD,LWR 3 512039

QTY:

Ref: 27 Part #: 20030960 Price: $27.45

Item: SPACER,1 3/4 OD, SHT. 574038

QTY:

Ref: 28 Part #: 20030959 Price: $36.32

Item: SPACER,1 3/4 OD,LOWER,LG574037

QTY:

Ref: 29 Part #: 1020013 Price: $40.96

Item: PIN, 1.25 X 7.08

QTY:

Ref: 30 Part #: 90039030 Price: $28.44

Item: GEARBOX, SNAP RING, 1-3/4 SUPERG

QTY:

Ref: 31 Part #: 37431 Price: $15.24

Item: Pin, 1.0 x 6.10

QTY:

Ref: 35 Part #: 923 Price: $1.44

Item: PIN, 1/4 X 1-3/4 COTTER

QTY:

Ref: 36 Part #: 6698 Price: $1.19

Item: NUT LOCK 3/8 NC ZP

QTY:

Ref: 37 Part #: 565 Price: $1.72

Item: WASHER, FLAT 3/8

QTY:

Ref: 38 Part #: 20973 Price: $1.72

Item: BOLT, CARRIAGE 3/8 NC X 1-1/4 GR5

QTY:

Ref: 39 Part #: 2290 Price: $3.31

Item: BOLT, HEX 3/8 NC X 2-1/2 GR5 ZP

QTY:

Ref: 40 Part #: 11900 Price: $1.90

Item: NUT, LOCK FLANGE 1/2 NC

QTY:

Ref: 41 Part #: 12735 Price: $2.52

Item: BOLT, CARRIAGE 1/2 NC X 1-3/4 HT

QTY:

Ref: 42 Part #: 19025 Price: $3.31

Item: NUT, HFN 5/8 NC, LOCK

QTY:

Ref: 43 Part #: 1286 Price: $1.72

Item: WASHER, LOCK, HEAVY ZP

QTY:

Ref: 44 Part #: 2855 Price: $3.13

Item: BOLT, CARRIAGE 5/8 NC X 2

QTY:

Ref: 45 Part #: 57817 Price: $0.99

Item: WASHER, 5/8 SAE FLAT HRDN

QTY:

Ref: 46 Part #: 50530313 Price: $11.12

Item: BOLT, STUD 5/8NCX2-3/4 GR.5

QTY:

Ref: 47 Part #: 902 Price: $3.31

Item: BOLT, HEX 5/8 NC X 2 GR5 ZP

QTY:

Ref: 48 Part #: W302207 Price: $2.93

Item: NUT, LOCK, FLANGE, 3/4 NC

QTY:

Ref: 49 Part #: W29315 Price: $8.83

Item: BOLT, HEX 3/4 NC X 5-1/2 GR5

QTY:

Ref: 50 Part #: 34278 Price: $12.43

Item: BOLT, HEX 1 NC X 5.0 GR5 ZP

QTY:

Ref: 51 Part #: 34279 Price: $8.52

Item: NUT, LOCK 1 NC

QTY:

Ref: 52 Part #: 832 Price: $2.13

Item: WASHER, FLAT, 1 STD ZP

QTY:

Ref: 53 Part #: 27542 Price: $6.22

Item: PIN, KLIK HT 7/16 X 11/32

QTY:

Ref: 54 Part #: 1032113RP Price: $1,439.11

Item: WA, HITCH P-TYPE S30CD

QTY:

Ref: 55 Part #: 19407 Price: $162.00

Item: ASY, SAFETY CHAIN, 10,000 LB

QTY:

Ref: 56 Part #: 1016105 Price: $3,006.00

Item: DRIVE, PTO 1-3/4 CD 2, 3PT STD 24KE

QTY:

Ref: 56 Part #: 1026555 Price: $3,128.00

Item: DRIVE, 1-3/4-20 CD 3PT 30K AUTO WSLR

QTY:

Ref: 56 Part #: 1016109 Price: $4,569.43

Item: DRIVE, CV 1-3/4 CD P-TYPE 24KE WSLR

QTY:

Ref: 56 Part #: 1019820 Price: $5,755.28

Item: DRIVE, 1-3/4-20 CD P-T 30K AUTO WSLR

QTY:

Ref: 57 Part #: 50530834 Price: $58.86

Item: TOP PLATE, PPI 302V

QTY:

Ref: 58 Part #: 50530832 Price: $7.39

Item: CUSHION, STEEL BLOCK .5 X .75 X 1.88

QTY:

Ref: 59 Part #: 50530833 Price: $31.70

Item: V PLATE, PPI 230VR

QTY:

Ref: 60 Part #: 90001411 Price: $3.23

Item: BOLT, HEX 3/4 NC X 3 GR5 ZP

QTY:

Ref: 61 Part #: 90001537 Price: $12.59

Item: BOLT, HEX 1 NC X 6-1/2 GR5 ZP

QTY:

Ref: 62 Part #: 50520433 Price: $124.51

Item: CLEVIS HITCH KIT, SHREDDER

QTY:

Ref: 63 Part #: 50530831 Price: $335.44

Item: HITCH, CAT-3 COMPLETE

QTY:

Ref: 64 Part #: 3689 Price: $1.15

Item: WASHER, LOCK, 1 STD D

QTY:

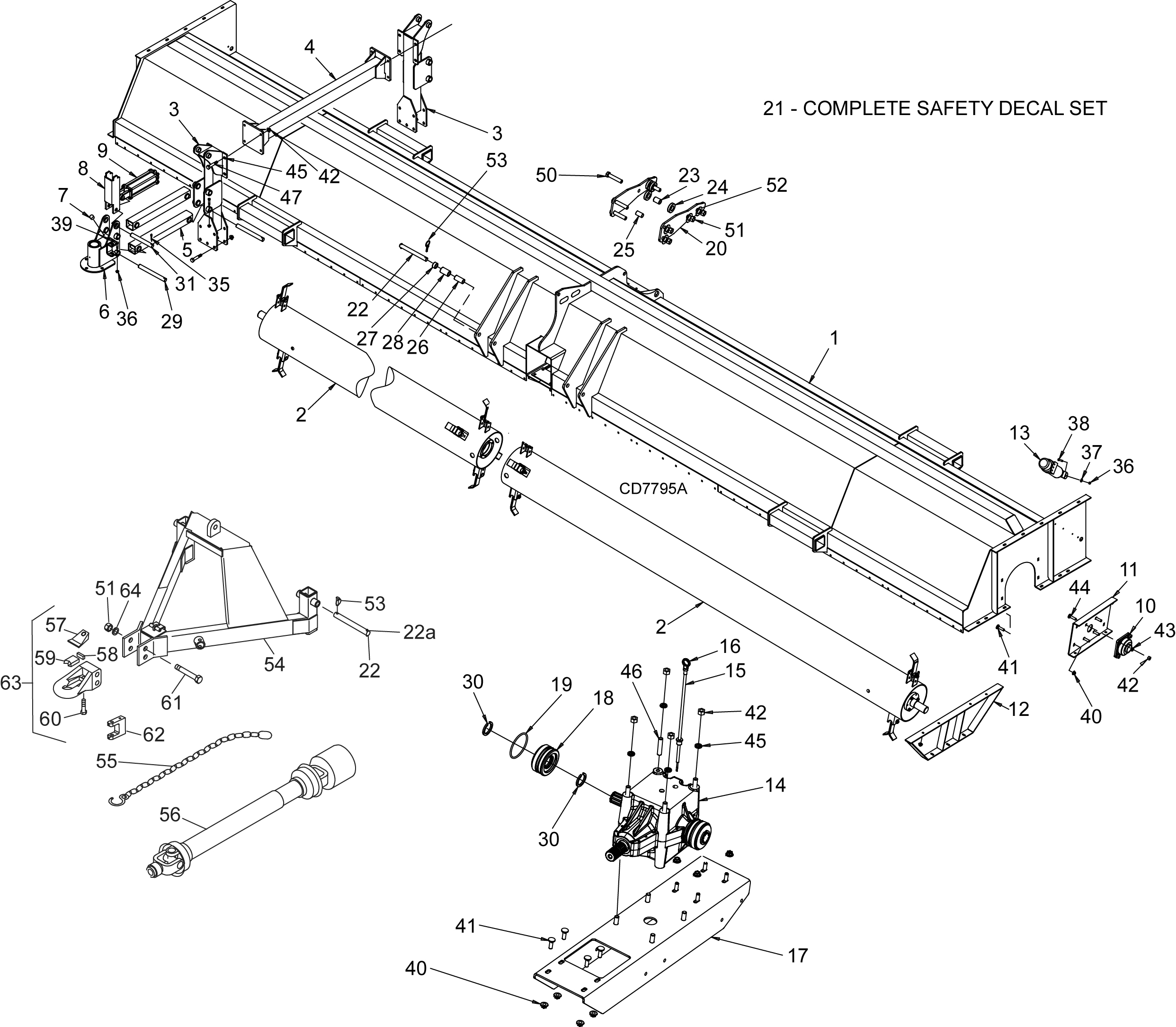

WOODS S22CD (WITH FRONT & REAR CASTERS) CENTER DRIVE FLAIL SHREDDER FRAME ASSEMBLY
