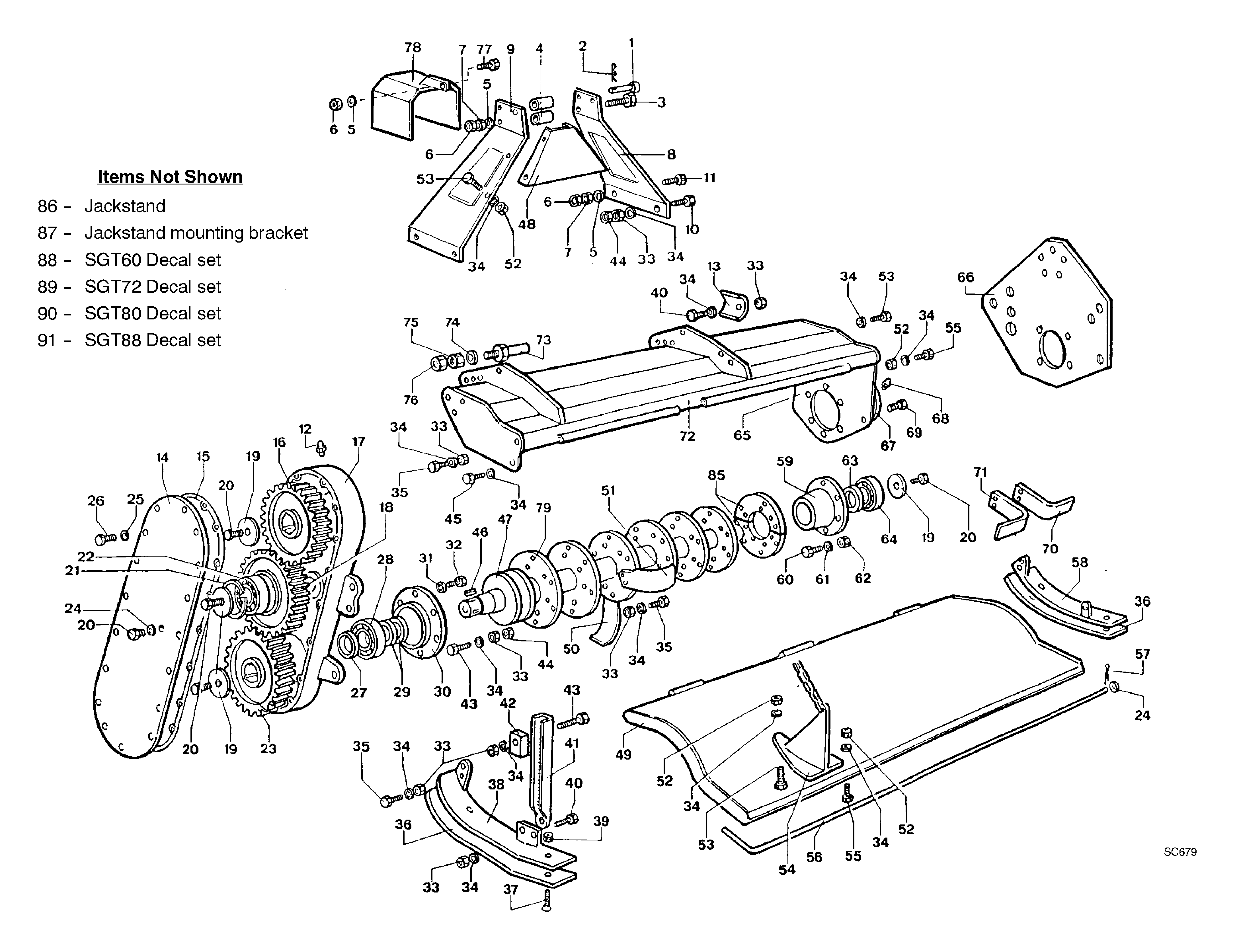

    WOODS SGT88 ROTARY TILLER SGT 60, 72, 80, 88 Assembly

    WOODS >woods-sgt88-rotary-tiller-parts-sgt-60,-72,-80,-88-assembly
    Ref: 1  Part #: W100084  Price: $50.03

    Item: UPPER HITCH PIN

    QTY:
    Ref: 2  Part #: 10502-1  Price: $5.86

    Item: PIN

    QTY:
    Ref: 3  Part #: 99  Price: $7.80

    Item: SCREW

    QTY:
    Ref: 4  Part #: 102086  Price: $4.65

    Item: 3-POINT SPACER

    QTY:
    Ref: 5  Part #: 325-1  Price: $1.44

    Item: WASHER, 16MM DIA SPRING

    QTY:
    Ref: 6  Part #: 208-1  Price: $1.97

    Item: NUT, 16A MM

    QTY:
    Ref: 7  Part #: 209-1  Price: $1.63

    Item: NUT, 16B MM

    QTY:
    Ref: 8  Part #: 103052A  Price: $264.91

    Item: SIDE FRAME RH

    QTY:
    Ref: 9  Part #: 103053A  Price: $257.19

    Item: SIDE FRAME LH

    QTY:
    Ref: 10  Part #: 157-1  Price: $4.03

    Item: 14mm x 1.5mm x 55 Left side frame

    QTY:
    Ref: 10  Part #: 44-1  Price: $8.16

    Item: HHCS 14MM X 1.5MM X 65MM

    QTY:
    Ref: 11  Part #: 123-1  Price: $4.55

    Item: 16mm x 60mm Screw

    QTY:
    Ref: 12  Part #: 804  Price: $25.87

    Item: PLUG 3/4 (PLASTIC)

    QTY:
    Ref: 13  Part #: 1000055  Price: $9.00

    Item: Little plate

    QTY:
    Ref: 14  Part #: 100023  Price: $145.33

    Item: COVER

    QTY:
    Ref: 15  Part #: W100024  Price: $28.13

    Item: GASKET

    QTY:
    Ref: 16  Part #: 100025  Price: $219.50

    Item: UPPER GEAR

    QTY:
    Ref: 17  Part #: 101022  Price: $965.87

    Item: GEARCASE

    QTY:
    Ref: 18  Part #: 100026  Price: $699.65

    Item: MIDDLE GEAR 34 TOOTH

    QTY:
    Ref: 19  Part #: 100087  Price: $3.98

    Item: WASHER 12.5MM X 60MM DIA

    QTY:
    Ref: 20  Part #: 108-1  Price: $2.05

    Item: SCREW M 12 X 16

    QTY:
    Ref: 21  Part #: 606-1  Price: $6.78

    Item: 90 I LOCKRING

    QTY:
    Ref: 22  Part #: 401-1  Price: $238.67

    Item: BEARING 5210 ZZ KYK

    QTY:
    Ref: 23  Part #: 100027  Price: $433.19

    Item: LOWER GEAR

    QTY:
    Ref: 24  Part #: 303-1  Price: $1.35

    Item: 12 WASHER

    QTY:
    Ref: 25  Part #: 301-1  Price: $2.04

    Item: WASHER 8MM DIA

    QTY:
    Ref: 26  Part #: 102-2  Price: $0.99

    Item: 8mm x 20mm Screw

    QTY:
    Ref: 27  Part #: 100089  Price: $68.93

    Item: SPACER

    QTY:
    Ref: 28  Part #: 413-1  Price: $197.51

    Item: BEARING 1310 ETN9 SKF

    QTY:
    Ref: 29  Part #: 507  Price: $20.43

    Item: SEAL, METRIC 55X75X10 REPAIR

    QTY:
    Ref: 30  Part #: 100029  Price: $399.44

    Item: ROTOR SUPPORT LEFT SIDE

    QTY:
    Ref: 31  Part #: 302-1  Price: $1.17

    Item: 10MM DIA WASHER

    QTY:
    Ref: 32  Part #: 81-1  Price: $2.37

    Item: 10MM X 25MM SCREW

    QTY:
    Ref: 33  Part #: 43104  Price: $1.72

    Item: NUT HEX M14 X 1.5

    QTY:
    Ref: 34  Part #: 324-1  Price: $1.54

    Item: 14MM DIA SPRING WASHER

    QTY:
    Ref: 35  Part #: 154-1  Price: $8.67

    Item: TINE BOLTS

    QTY:
    Ref: 36  Part #: 100042  Price: Call for price

    Item: Skid shoe

    QTY:
    Ref: 37  Part #: 113-1  Price: $4.34

    Item: FSHCS M12-1.75 X 35 MM CL10.9

    QTY:
    Ref: 38  Part #: S9701  Price: $274.08

    Item: SKID KIT - LEFT

    QTY:
    Ref: 39  Part #: 202-1  Price: $2.10

    Item: M12A NUT

    QTY:
    Ref: 40  Part #: 155-1  Price: $4.09

    Item: 14MM X 15MM X 45MM SCREW

    QTY:
    Ref: 41  Part #: 100050  Price: Call for price

    Item: Skid adjustment rod

    QTY:
    Ref: 42  Part #: 100051  Price: Call for price

    Item: Adjustment stop

    QTY:
    Ref: 43  Part #: 158-1  Price: $3.69

    Item: HHCS M14-1.5P X 60MM CL8.8 ZP

    QTY:
    Ref: 44  Part #: 1036681  Price: $1.58

    Item: NUT, HEX JAM M14 X 1.5

    QTY:
    Ref: 45  Part #: 114-1  Price: $3.66

    Item: HHCS 14MM X 25MM

    QTY:
    Ref: 46  Part #: 705  Price: $6.25

    Item: KEY

    QTY:
    Ref: 47  Part #: 100031  Price: $498.45

    Item: PIN

    QTY:
    Ref: 48  Part #: 101054A  Price: $97.39

    Item: BRACE

    QTY:
    Ref: 49  Part #: W115003  Price: $1,015.11

    Item: REAR SHIELD - SGT60

    QTY:
    Ref: 49  Part #: 118003  Price: $1,011.66

    Item: REAR SHIELD SGT72

    QTY:
    Ref: 49  Part #: 120003  Price: $1,165.62

    Item: REAR SHIELD SGT80

    QTY:
    Ref: 49  Part #: 122003  Price: $1,360.36

    Item: REAR SHIELD SGT88

    QTY:
    Ref: 50  Part #: 100078  Price: $23.07

    Item: SPEED TINE, LH

    QTY:
    Ref: 51  Part #: 100077  Price: $23.07

    Item: SPEED TINE, RH

    QTY:
    Ref: 52  Part #: 205  Price: $2.40

    Item: NUT 14A MM

    QTY:
    Ref: 53  Part #: 115-1  Price: $4.05

    Item: HHCS 14MM X 30MM

    QTY:
    Ref: 54  Part #: 100043  Price: $307.10

    Item: REAR SHIELD CONNECTION

    QTY:
    Ref: 55  Part #: 116-1  Price: $3.24

    Item: Screw

    QTY:
    Ref: 56  Part #: 098528  Price: Call for price

    Item: Rear shield pin (GT60)

    QTY:
    Ref: 56  Part #: 118004  Price: $86.02

    Item: REAR SHIELD PIN GHT72, SGT72

    QTY:
    Ref: 56  Part #: W120004  Price: $71.44

    Item: REAR SHIELD PIN SGT80

    QTY:
    Ref: 56  Part #: 122004  Price: $70.08

    Item: REAR SHIELD PIN SGT88

    QTY:
    Ref: 57  Part #: 903  Price: $1.54

    Item: PIN SAFETY 5MM DIA X 35MM

    QTY:
    Ref: 58  Part #: S9702  Price: $269.71

    Item: SKID KIT - RIGHT

    QTY:
    Ref: 59  Part #: 100030  Price: $315.59

    Item: RIGHT ROTOR HOUSING

    QTY:
    Ref: 60  Part #: 105-1  Price: $2.22

    Item: 10MM X 30MM SCREW

    QTY:
    Ref: 61  Part #: 21542  Price: $0.99

    Item: WASHER, LOCK 10MM

    QTY:
    Ref: 62  Part #: 201-1  Price: $1.54

    Item: 10 ALTO NUT

    QTY:
    Ref: 63  Part #: 504  Price: $9.16

    Item: OIL SEAL

    QTY:
    Ref: 64  Part #: 415-1  Price: $173.22

    Item: BEARING

    QTY:
    Ref: 65  Part #: 100045  Price: $177.70

    Item: Side frame (GT60, GT72)

    QTY:
    Ref: 66  Part #: 100046  Price: $255.28

    Item: SIDE FRAME SGT80, SGT88

    QTY:
    Ref: 67  Part #: 100037  Price: $80.00

    Item: RIGHT ROTOR COVER

    QTY:
    Ref: 68  Part #: 1044450  Price: $3.13

    Item: FITTING - GREASE M10 X 1, STR

    QTY:
    Ref: 69  Part #: 101-2  Price: $1.30

    Item: HHCS 6MM X 20MM

    QTY:
    Ref: 70  Part #: 100079  Price: $23.07

    Item: ANGULAR BLADES

    QTY:
    Ref: 71  Part #: 100080  Price: $22.22

    Item: ANGULAR BLADES

    QTY:
    Ref: 72  Part #: 115001  Price: $1,495.50

    Item: Frame (GT60)

    QTY:
    Ref: 72  Part #: 118001  Price: $1,594.30

    Item: Frame (GT72)

    QTY:
    Ref: 72  Part #: 120001  Price: $1,742.10

    Item: Frame (GT80)

    QTY:
    Ref: 72  Part #: 122001  Price: $1,840.20

    Item: Frame (GT88)

    QTY:
    Ref: 73  Part #:   Price: $0.99

    Item: WDS-117

    QTY:
    Ref: 74  Part #: 326-1  Price: $1.26

    Item: 22mm Dia. Spring washer

    QTY:
    Ref: 75  Part #: 227-1  Price: $3.90

    Item: 22mm x 1.5B mm Nut

    QTY:
    Ref: 76  Part #: 226-1  Price: $4.55

    Item: 22mm x 1.5A mm Nut

    QTY:
    Ref: 77  Part #: 122-1  Price: $4.79

    Item: 16 X 50 SCREW

    QTY:
    Ref: 78  Part #: W101048  Price: $152.79

    Item: PTO GUARD

    QTY:
    Ref: 79  Part #: 115008  Price: $1,411.50

    Item: 6ZAPP. Rotor (GT60)

    QTY:
    Ref: 79  Part #: 118008  Price: $1,780.51

    Item: 6ZAPP. ROTOR (GT72)

    QTY:
    Ref: 79  Part #: 120008  Price: $1,679.20

    Item: 6ZAPP. Rotor (GT80)

    QTY:
    Ref: 79  Part #: 122008  Price: $1,899.23

    Item: 6ZAPP. ROTOR (GT88)

    QTY:
    Ref: 85  Part #: W300996  Price: $46.43

    Item: 6 ZAPP HALF FLANGE

    QTY:
    Ref: 86  Part #: 9200050  Price: $120.47

    Item: JACKSTAND

    QTY:
    Ref: 87  Part #: 800051  Price: $122.51

    Item: JACKSTAND MOUNTING BRACKET

    QTY:
    Ref: 88  Part #: 1031976  Price: $105.77

    Item: DCL SET SFTY TILLER

    QTY:
    Ref: 89  Part #: 1031976  Price: $105.77

    Item: DCL SET SFTY TILLER

    QTY:
    Ref: 90  Part #: 1031976  Price: $105.77

    Item: DCL SET SFTY TILLER

    QTY:
    Ref: 91  Part #: 1031976  Price: $105.77

    Item: DCL SET SFTY TILLER

    QTY:
