Ref	Part #	Item	Price
010	RC411-61162	BRACKET, CON. VALVE	$358.41
030	01135-71020	BOLT M10x1.25x20 mm	$1.31
040	01135-51030	BOLT M10x1.25x30 mm ***	$1.55
050	01135-71025	BOLT M10x1.25x25 mm *	$1.63
060	RC411-62105	ASSY TANK, OIL	$1,042.44
060	RC411-62108	ASSY TANK, OIL***	$1,062.67
060	RC418-62100	ASSY,OILTANK	$2,404.23
070	06312-10010	PLUG ***	$2.72
080	68773-62210	FILTER, SUCTION HYD (STRAINER) ***	$81.46
090	15852-33140	PLUG, OIL FILTER *	$11.63
090	E9151-33140	PLUG, OIL FILLER *	$5.38
100	04816-50300	O-RING *	$2.08
110	06331-35016	PLUG ***	$2.34
120	04717-01610	WASHER, SEAL ***	$1.94
130	68311-62130	GAUGE, OIL	$43.64
150	68728-76150	ADAPTER *	$13.12
160	RC101-63830	JOINT	$60.54
170	04817-00110	O-RING	$1.65
180	01135-51225	BOLT M12x1.25x25 mm ***	$1.95
185	01135-51235	BOLT M12x1.25x35 mm	$2.59
190	RC411-62164	PLATE, PARTITION	$60.16
200	RC411-62174	PLATE, PARTITION	$23.94
210	01125-70816	BOLT M8x1.25x16 mm	$0.99
220	RC411-62180	TRIM	$4.54
230	RC101-44850	GROMMET	$5.56
240	R1401-43170	TRIM 3	$17.27
240	R1401-43170	TRIM 3	$17.27
250	RC461-62220	TRIM (570)	$11.92
260	RP321-41590	TRIM *	$5.87
270	RC411-62230	TRIM	$1.00
280	RC411-62250	TRIM	$2.69
290	RC411-48980	SEAL	$6.29
300	RC411-62242	TRIM	$13.81
310	69244-41130	TRIM	$1.94

Ref: 010 Part #: RC411-61162 Price: $358.41

Item: BRACKET, CON. VALVE

QTY:

Ref: 030 Part #: 01135-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 040 Part #: 01135-51030 Price: $1.55

Item: BOLT M10x1.25x30 mm ***

QTY:

Ref: 050 Part #: 01135-71025 Price: $1.63

Item: BOLT M10x1.25x25 mm *

QTY:

Ref: 060 Part #: RC411-62105 Price: $1,042.44

Item: ASSY TANK, OIL

QTY:

Ref: 060 Part #: RC411-62108 Price: $1,062.67

Item: ASSY TANK, OIL***

QTY:

Ref: 060 Part #: RC418-62100 Price: $2,404.23

Item: ASSY,OILTANK

QTY:

Ref: 070 Part #: 06312-10010 Price: $2.72

Item: PLUG ***

QTY:

Ref: 080 Part #: 68773-62210 Price: $81.46

Item: FILTER, SUCTION HYD (STRAINER) ***

QTY:

Ref: 090 Part #: 15852-33140 Price: $11.63

Item: PLUG, OIL FILTER *

QTY:

Ref: 090 Part #: E9151-33140 Price: $5.38

Item: PLUG, OIL FILLER *

QTY:

Ref: 100 Part #: 04816-50300 Price: $2.08

Item: O-RING *

QTY:

Ref: 110 Part #: 06331-35016 Price: $2.34

Item: PLUG ***

QTY:

Ref: 120 Part #: 04717-01610 Price: $1.94

Item: WASHER, SEAL ***

QTY:

Ref: 130 Part #: 68311-62130 Price: $43.64

Item: GAUGE, OIL

QTY:

Ref: 150 Part #: 68728-76150 Price: $13.12

Item: ADAPTER *

QTY:

Ref: 160 Part #: RC101-63830 Price: $60.54

Item: JOINT

QTY:

Ref: 170 Part #: 04817-00110 Price: $1.65

Item: O-RING

QTY:

Ref: 180 Part #: 01135-51225 Price: $1.95

Item: BOLT M12x1.25x25 mm ***

QTY:

Ref: 185 Part #: 01135-51235 Price: $2.59

Item: BOLT M12x1.25x35 mm

QTY:

Ref: 190 Part #: RC411-62164 Price: $60.16

Item: PLATE, PARTITION

QTY:

Ref: 200 Part #: RC411-62174 Price: $23.94

Item: PLATE, PARTITION

QTY:

Ref: 210 Part #: 01125-70816 Price: $0.99

Item: BOLT M8x1.25x16 mm

QTY:

Ref: 220 Part #: RC411-62180 Price: $4.54

Item: TRIM

QTY:

Ref: 230 Part #: RC101-44850 Price: $5.56

Item: GROMMET

QTY:

Ref: 240 Part #: R1401-43170 Price: $17.27

Item: TRIM 3

QTY:

Ref: 240 Part #: R1401-43170 Price: $17.27

Item: TRIM 3

QTY:

Ref: 250 Part #: RC461-62220 Price: $11.92

Item: TRIM (570)

QTY:

Ref: 260 Part #: RP321-41590 Price: $5.87

Item: TRIM *

QTY:

Ref: 270 Part #: RC411-62230 Price: $1.00

Item: TRIM

QTY:

Ref: 280 Part #: RC411-62250 Price: $2.69

Item: TRIM

QTY:

Ref: 290 Part #: RC411-48980 Price: $6.29

Item: SEAL

QTY:

Ref: 300 Part #: RC411-62242 Price: $13.81

Item: TRIM

QTY:

Ref: 310 Part #: 69244-41130 Price: $1.94

Item: TRIM

QTY:

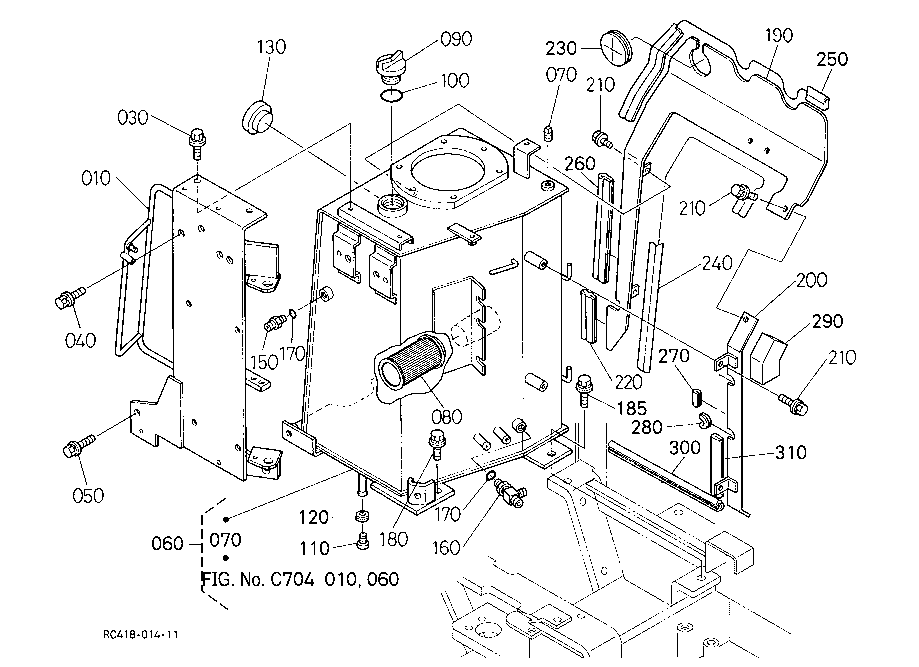

KUBOTA KX91 3 PARTS PUMP MOTOR SYSTEM C50200 OIL TANK
