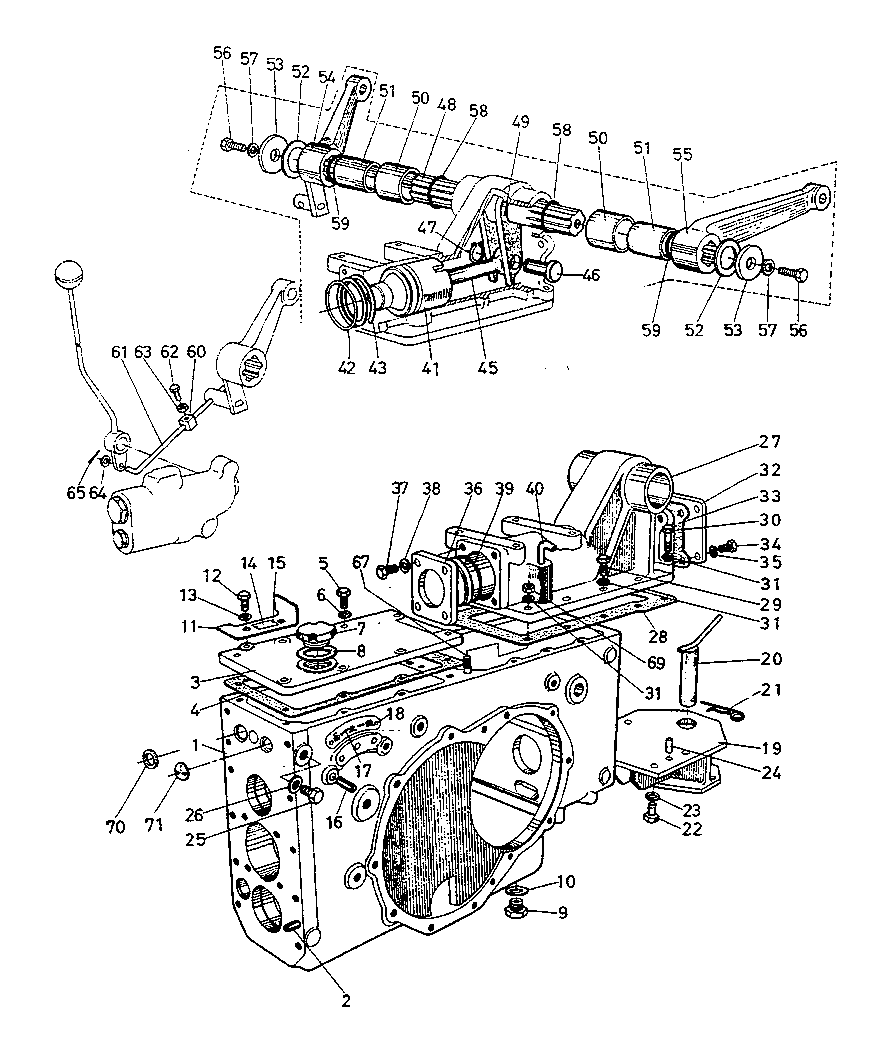

KUBOTA L200 PARTS ILLUSTRATED PARTS LIST I02000 TRANSMISSION CASE AND OIL PRESSURE CYLINDER

    KUBOTA >kubota-l200-parts-illustrated-parts-list-i02000-transmission-case-and-oil-pressure-cylinder
    Ref: 001  Part #: 32210-21132  Price: $2,570.17

    Item: CASE,TRANSMISSION ***

    QTY:
    Ref: 002  Part #: 05012-01025  Price: $1.00

    Item: PIN, STRAIGHT

    QTY:
    Ref: 003  Part #: 32150-21213  Price: $106.00

    Item: COVER, FRONT CASE**

    QTY:
    Ref: 004  Part #: 32210-21220  Price: $6.23

    Item: PACKING, COVER ***

    QTY:
    Ref: 005029  Part #: 01115-51028  Price: $0.99

    Item: BOLT

    QTY:
    Ref: 006031035038  Part #: 04512-70100  Price: $0.99

    Item: WASHER,SPRING

    QTY:
    Ref: 007  Part #: 32200-21422  Price: $22.85

    Item: PLUG, OIL FILTER *****

    QTY:
    Ref: 008  Part #: 04717-03400  Price: $3.71

    Item: WASHER, SEAL

    QTY:
    Ref: 009  Part #: 31150-21450  Price: $45.66

    Item: DRAIN PLUG ***

    QTY:
    Ref: 010  Part #: 04717-02150  Price: $2.37

    Item: WASHER, SEAL w/RUBBER

    QTY:
    Ref: 011  Part #: 32150-24463  Price: $8.94

    Item: AUX CHG STOPPER ***

    QTY:
    Ref: 012  Part #: 01053-50814  Price: $0.99

    Item: BOLT

    QTY:
    Ref: 013  Part #: 04512-70080  Price: $0.99

    Item: WASHER,SPRING

    QTY:
    Ref: 014  Part #: 32150-24590  Price: $3.10

    Item: LABEL **

    QTY:
    Ref: 015018  Part #: 05614-40205  Price: $0.99

    Item: RIVET

    QTY:
    Ref: 016  Part #: 05412-10820  Price: $0.99

    Item: PIN,LOCK

    QTY:
    Ref: 017  Part #: 32210-24990  Price: $11.06

    Item: LABEL ***

    QTY:
    Ref: 019  Part #: 32150-29715  Price: $1,560.80

    Item: HITCH ***

    QTY:
    Ref: 020  Part #: 31150-29722  Price: $153.35

    Item: PIN,HITCH***

    QTY:
    Ref: 021  Part #: 32200-29732  Price: $5.39

    Item: PIN, SNAP ***

    QTY:
    Ref: 022  Part #: 39799-12350  Price: $11.28

    Item: BOLT ***

    QTY:
    Ref: 023057  Part #: 04512-70120  Price: $0.99

    Item: WASHER,SPRING

    QTY:
    Ref: 024  Part #: 05012-01022  Price: $1.00

    Item: PIN, KNOCK

    QTY:
    Ref: 025  Part #: 32350-23270  Price: $2.73

    Item: BOLT, SET 9

    QTY:
    Ref: 026  Part #: 04711-00100  Price: $0.99

    Item: WASHER

    QTY:
    Ref: 027  Part #: 32210-37117  Price: Call for price

    Item: CYLINDER OIL PRESSUR

    QTY:
    Ref: 028  Part #: 32210-37120  Price: $6.46

    Item: GASKET ***

    QTY:
    Ref: 030  Part #: 01115-11040  Price: $0.99

    Item: BOLT

    QTY:
    Ref: 032  Part #: 32150-37152  Price: $115.72

    Item: REAR CYL COVER ***

    QTY:
    Ref: 033  Part #: 32210-37160  Price: $4.62

    Item: GASKET **

    QTY:
    Ref: 034  Part #: 01173-51025  Price: $0.99

    Item: BOLT M10x1.25x25 mm ***

    QTY:
    Ref: 036  Part #: 32210-37230  Price: $63.30

    Item: COVER

    QTY:
    Ref: 037  Part #: 01173-51028  Price: $1.04

    Item: BOLT M10x1.25x28 mm

    QTY:
    Ref: 039  Part #: 04811-50600  Price: $1.98

    Item: O RING *

    QTY:
    Ref: 040  Part #: 32150-37273  Price: $13.88

    Item: PIPE, BREATHER**

    QTY:
    Ref: 041  Part #: 32200-37300  Price: $59.09

    Item: PISTON ASSY**

    QTY:
    Ref: 042  Part #: K7561-54370  Price: $6.24

    Item: O RING (BAND, RUBBER), HYD

    QTY:
    Ref: 043  Part #: 32200-37380  Price: $13.12

    Item: BACK UP RING

    QTY:
    Ref: 044  Part #: 32200-37300  Price: $59.09

    Item: PISTON ASSY**

    QTY:
    Ref: 045  Part #: 32150-37322  Price: $163.30

    Item: ROD, OIL PRESSURE ***

    QTY:
    Ref: 046  Part #: 32210-37340  Price: $37.12

    Item: PIN

    QTY:
    Ref: 047  Part #: 04612-00220  Price: $0.99

    Item: CIR-CLIP, EXTERNAL

    QTY:
    Ref: 048  Part #: 32210-37434  Price: $546.85

    Item: SHAFT, O/P ***

    QTY:
    Ref: 049  Part #: 32210-37444  Price: $258.81

    Item: ARM, O/P

    QTY:
    Ref: 050  Part #: 32210-37460  Price: $219.85

    Item: BUSHING ***

    QTY:
    Ref: 051  Part #: 32210-37480  Price: $57.06

    Item: COLLAR ***

    QTY:
    Ref: 052  Part #: 32210-37490  Price: $39.70

    Item: WASHER, FLAT ***

    QTY:
    Ref: 053  Part #: 32150-37540  Price: $9.21

    Item: WASHER, FLAT ***

    QTY:
    Ref: 054  Part #: 32210-37614  Price: $424.14

    Item: ARM, RH LIFT**

    QTY:
    Ref: 055  Part #: 32210-37623  Price: $257.99

    Item: ARM, LH LIFT, **

    QTY:
    Ref: 056  Part #: 01115-51225  Price: $6.42

    Item: BOLT

    QTY:
    Ref: 058  Part #: 04811-10400  Price: $6.13

    Item: O RING

    QTY:
    Ref: 059  Part #: 04811-00480  Price: $3.21

    Item: O RING

    QTY:
    Ref: 060  Part #: 32200-39430  Price: $23.37

    Item: STOPPER

    QTY:
    Ref: 061  Part #: 32200-39444  Price: $12.61

    Item: ROD, CHECK

    QTY:
    Ref: 062  Part #: 01053-50822  Price: $0.99

    Item: BOLT M8x1.25x22 mm ***

    QTY:
    Ref: 063  Part #: 02112-50080  Price: $0.99

    Item: NUT ***

    QTY:
    Ref: 064  Part #: 04012-50080  Price: $0.99

    Item: WASHER, PLAIN ***

    QTY:
    Ref: 065  Part #: 05511-50315  Price: $0.99

    Item: PIN, SPLIT ***

    QTY:
    Ref: 066  Part #: 32210-37100  Price: $1,173.79

    Item: ASSY CYLINDER

    QTY:
    Ref: 067  Part #: 01515-01022  Price: $0.99

    Item: STUD

    QTY:
    Ref: 068  Part #: 01515-51035  Price: $2.52

    Item: STUD

    QTY:
    Ref: 069  Part #: 02118-50100  Price: $0.99

    Item: NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***

    QTY:
    Ref: 070  Part #: 32210-23640  Price: $28.01

    Item: SEAL, OIL

    QTY:
    Ref: 071  Part #: 06311-85018  Price: $2.26

    Item: CAP, SEALING ***
